Description

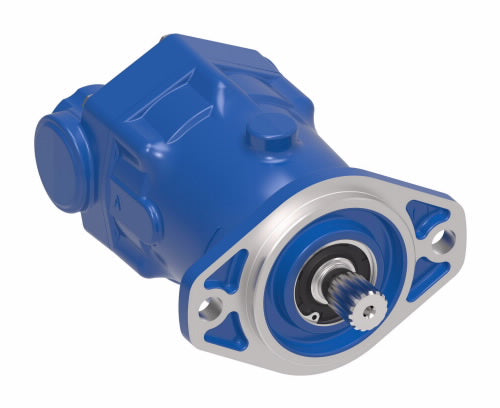

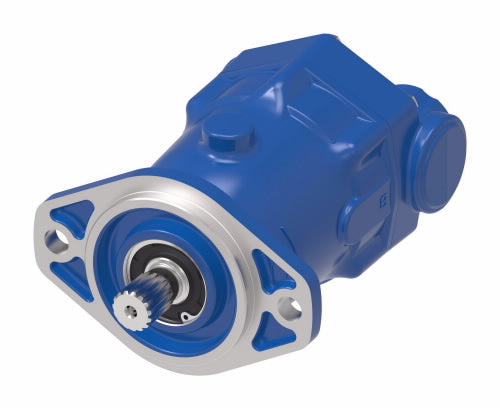

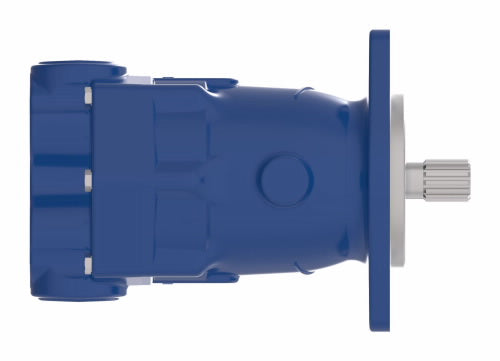

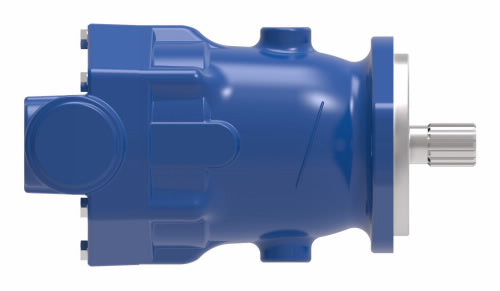

The Eaton 74328-DAB is a fixed-displacement axial piston hydraulic motor from Eaton’s 74328 series (Danfoss-designed), tailored for medium-pressure, high-speed applications in industrial and mobile environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
|
| Part Number |
74328-DAB |
| Subcategory |
Hydraulic Motors |
| Motor Type |
Fixed Displacement, Medium Pressure
|
| Displacement |
3.00 in³/r
|
| Main Ports |
1-1/16–12 UN-2B SAE O-Ring Ports - Rear
|
| Mount |
2-Bolt Flange (SAE-B)
|
| Shaft Type |
13 Tooth 16/32 Spline - 1.62 in Shaft Ext.
|
| Drain Port |
3/4–16 UNF-2B SAE O-Ring Port - Upper Rear
|
| Working Pressure |
4568 psi
|
| Maximum Operating Pressure |
5004 psi
|
| Torque |
2198 in |
| Maximum Flow Rate |
41.3 gpm |
| Finish |
Primer Per Spec 209-13A |
| Max Operating Temperature |
225 °F |
| Max Rpm |
3000 rpm |
| Series |
743 |
| Height |
136.7 mm |
| Length |
253.3 mm |
| Width |
174.8 mm |
| Pressure |
315 Bar |
| Max. Displacement |
49.2 cc/rev. |
| Material |
Cast Iron |
| Weight |
10.00 lbs |
Information About 74328-DAB
The 74328-DAB is part of Eaton’s 743XX series of fixed-displacement axial piston motors, designed for medium-duty hydraulic applications in industrial and mobile equipment. With a displacement of approximately 49 cm³/rev (3.00 in³/rev), it delivers reliable torque output, bi-directional rotation, and high-speed performance up to 3000 rpm. Its compact SAE-B flange and spline shaft design support easy integration into a wide range of systems requiring consistent hydraulic power. Built for durability, it operates under pressures up to 315 bar (4568 psi) and is field-serviceable for reduced maintenance downtime.
Key Features:
- Fixed Displacement Design: Provides predictable, constant torque and flow delivery for stable hydraulic operation.
- Compact Power: ~49 cm³/rev displacement in a lightweight housing, ideal for confined installations or mobile use.
- High Pressure Rating: Supports up to 315 bar (4568 psi), suitable for continuous and demanding duty cycles.
- Speed Capability: Operates efficiently at speeds up to 3000 rpm for fan drives, conveyors, and hydraulic systems.
- Bi-directional Rotation: Supports flexible circuit configurations for both forward and reverse flow applications.
- SAE-B Mounting: Standard two-bolt flange mount and 13-tooth spline shaft for quick, secure installation.
- Rear Porting: Includes SAE O-ring ports for work and case drain connections, simplifying plumbing and reducing leak risk.
- Durable Construction: Precision engineering ensures long life under variable load and temperature conditions.
- Serviceable Design: Allows for convenient maintenance and field replacement to minimize downtime.
- Versatile Applications: Used in agriculture, construction, automation, and industrial hydraulic systems.
The Eaton 74328-DAB is a dependable choice for compact hydraulic motor needs where fixed torque, space efficiency, and rugged design are essential.
