Description

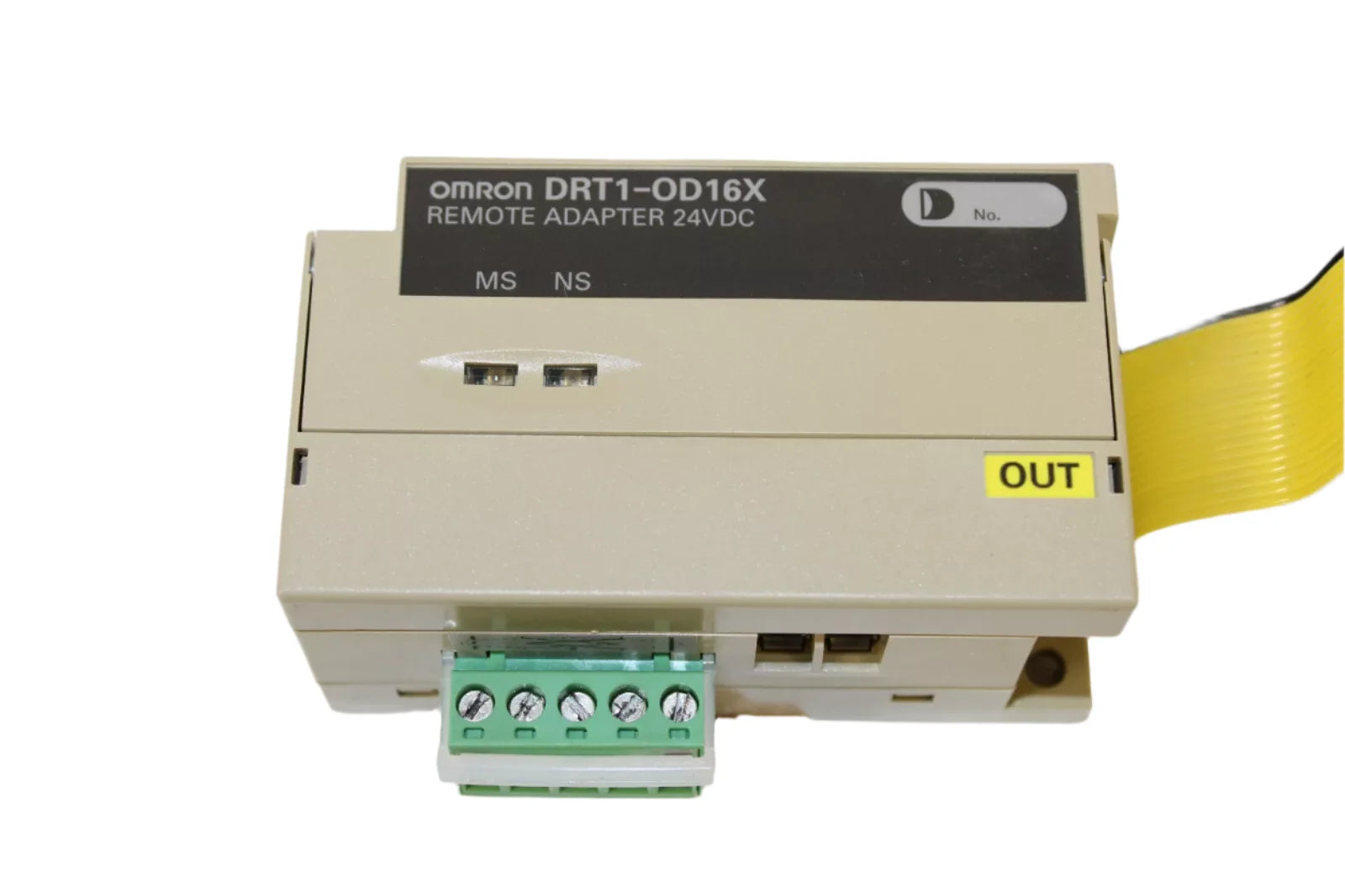

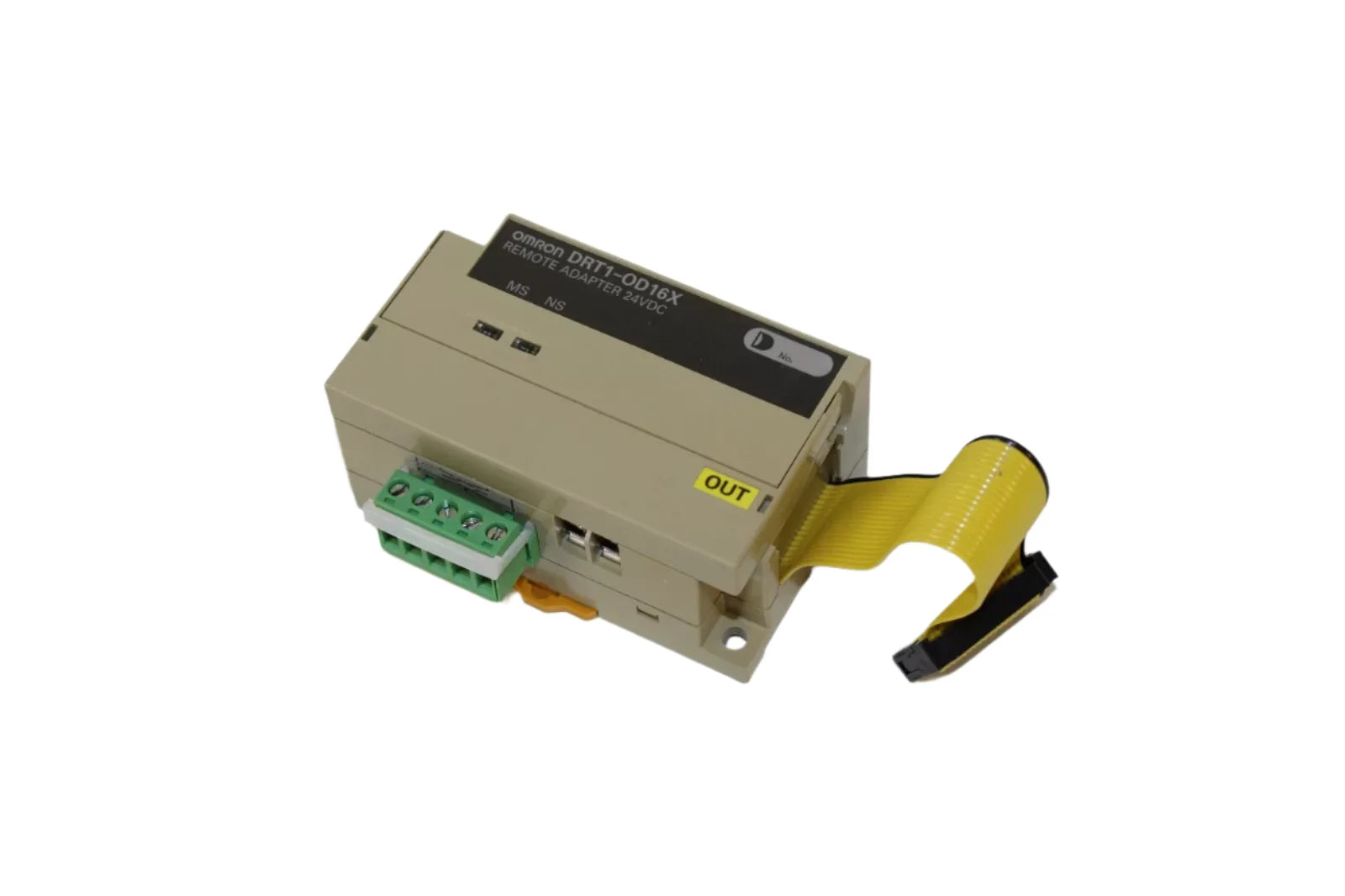

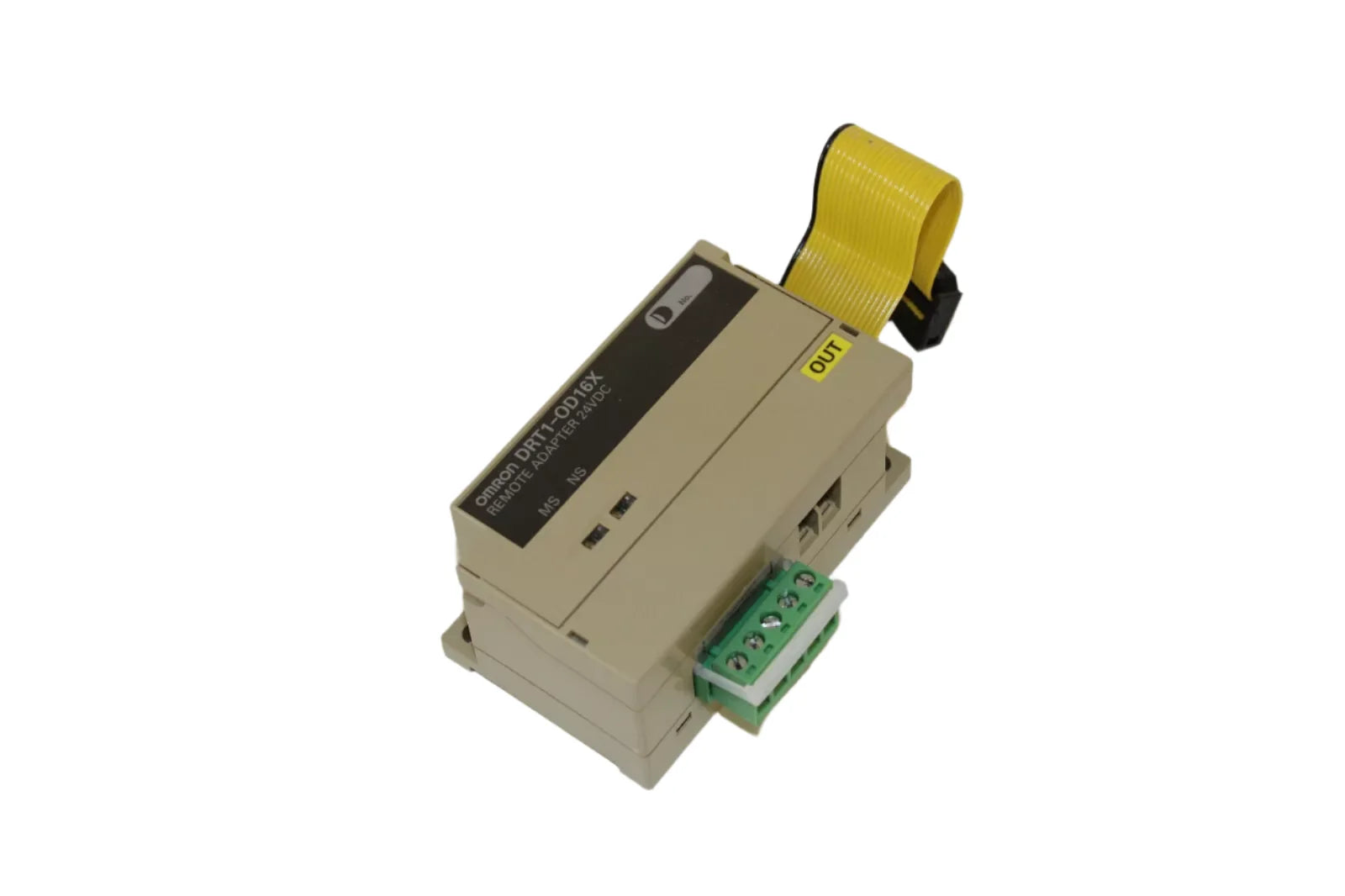

The Omron DRT1-OD16X is a compact DeviceNet remote output adapter designed for industrial automation applications. It features 16 NPN transistor output points, each capable of delivering up to 30 mA at 24 VDC.

Technical Specifications

Information About DRT1-OD16X

The Omron DRT1-OD16X is a compact DeviceNet remote output adapter designed for industrial automation applications. It provides 16 NPN transistor output points, each capable of delivering up to 0.3 A at 24 VDC. The unit features a fast ON delay time of 0.5 milliseconds, ensuring prompt response to control signals .
DO Supply

Key Features:

• Output Type: NPN transistor (open collector)
• Output Points: 16
• Rated Output Current: 0.3 A per point
• Operating Voltage: 24 VDC
• ON Delay Time: 0.5 ms
• Mounting: DIN rail
• Protection Rating: IP20
• Dimensions: Approximately 85 x 50 x 40 mm

The DRT1-OD16X is compatible with Omron's G70D series I/O relay terminals and can directly connect to SMC valves, enhancing its versatility in various automation setups . Additionally, the adapter supports two independent power supplies, providing electrical isolation between the I/O terminals and internal circuits for improved system reliability
