Description

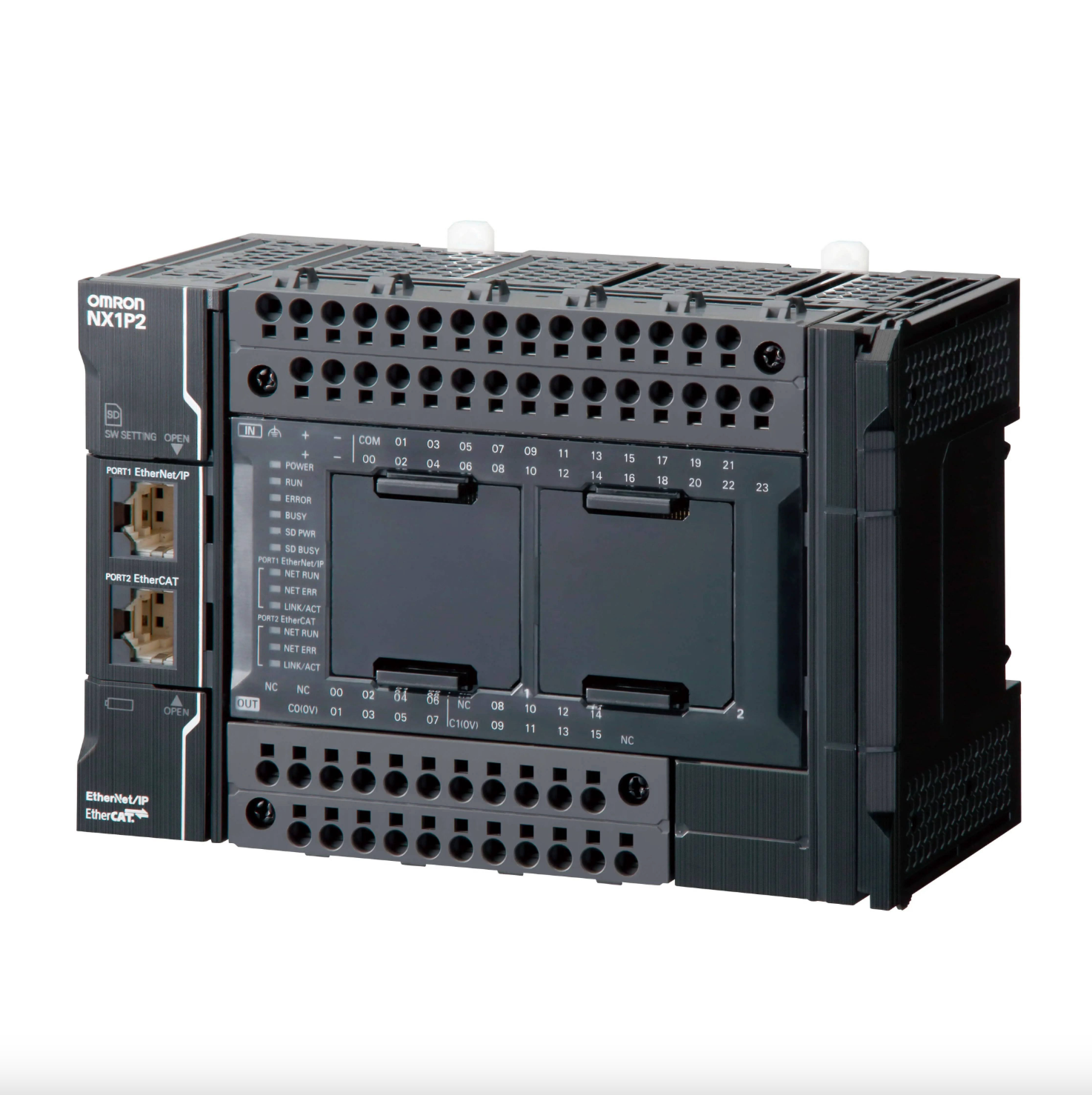

The Omron NX1P2-1140DT1 is a compact PLC CPU designed for high-speed machine control and synchronized motion applications. It integrates built-in I/O, EtherCAT networking, and multi-axis motion control in a single unit. This controller is ideal for standalone machines and space-constrained automation systems requiring precise real-time performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Controls & Indicators |
| Part Number |
NX1P2-1140DT1 |
| Subcategory |
Power Controller |
| Series |
Sysmac NX1P |
| Controller Type |
CPU Unit |
| Built-In I/O |
40 digital I/O |
| I/O Type |
PNP |
| Motion Axes Supported |
8 axes |
| EtherCAT Nodes |
Up to 16 |
| Program Memory |
1.5 MB |
| Power Supply Voltage |
20.4–28.8 VDC |
| EtherCAT Port |
Integrated |
| Programming Software |
Sysmac Studio |
| Weight |
2.00 lbs |
Information About NX1P2-1140DT1
The NX1P2-1140DT1 is part of Omron’s Sysmac NX1P series, which combines PLC functionality and motion control within a compact, all-in-one CPU platform. It features an industrial-grade design with built-in digital I/O and direct EtherCAT connectivity for servo drives and remote I/O. The controller supports real-time control of multiple motion axes without the need for additional motion units. Its architecture is optimized for cost-effective automation while maintaining compatibility with Omron Sysmac Studio and EtherCAT devices.
Key Features:
- Integrated PLC and Motion Control: Combines logic control and motion control in a single compact CPU.
- Built-In Digital I/O: Includes 40 onboard PNP digital I/O points for direct device connection.
- Multi-Axis Motion Capability: Supports control of up to 8 synchronized motion axes.
- EtherCAT Network Support: Connects up to 16 EtherCAT nodes for real-time distributed control.
- High-Speed Processing: Designed for fast instruction execution and deterministic control cycles.
- Compact Form Factor: Reduces panel space requirements in standalone and small machines.
- Wide Input Voltage Range: Operates reliably across industrial 24 VDC power supplies.
The NX1P2-1140DT1 delivers the reliability and precision required for compact motion control and high-performance machine automation systems.
