Description

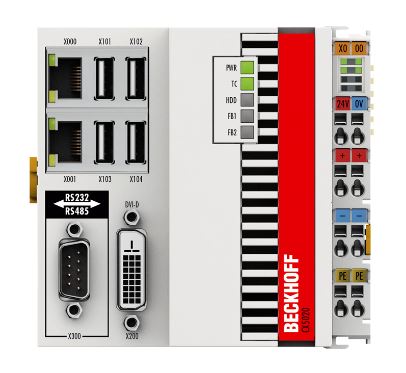

The Beckhoff CX5020-0120 is an Embedded PC from the CX5000 Series, featuring an Intel® Atom™ Z530 processor running at 1.6 GHz with Hyper-Threading technology. Designed for DIN-rail installation, it offers 512 MB RAM, 128 MB Compact Flash memory, and dual Ethernet interfaces for efficient and compact industrial automation control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
CX5020-0120 |
| Subcategory |
Embedded PC |
| Series |
CX5000 |
| Processor |
Intel® Atom™ Z530, 1.6 GHz, Hyper-Threading |
| RAM |
512 MB |
| Flash Memory |
128 MB Compact Flash |
| Ethernet Ports |
2 × RJ45 (10/100/1000 Mbit/s) |
| Mounting Type |
DIN-rail |
| Power Supply |
24 V DC (-15% / +20%) |
| Max. Power Consumption |
13 W |
| E-bus/K-bus Current Supply |
2 A |
| Power Consumption (E-bus/K-bus) |
Max. 10 W (5 V / 2 A) |
| Operating System |
Windows Embedded or TwinCAT-supported OS |
| Communication |
Ethernet-based (fieldbus compatible) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
95%, non-condensing |
| Protection Class |
IP20 |
| Dimensions (W × H × D) |
106 × 100 × 92 mm |
| Weight |
Approx. 575 g |
Information About CX5020-0120
The CX5020-0120 belongs to the Beckhoff CX5000 series of Embedded PCs, developed for flexible, high-efficiency automation and control tasks. Powered by an Intel® Atom™ Z530 processor with Hyper-Threading, it provides excellent computing performance while maintaining low energy consumption. With 512 MB of onboard RAM and 128 MB Compact Flash memory, the CX5020-0120 supports compact yet powerful control solutions. Its dual Gigabit Ethernet ports enable fast communication and easy integration into EtherCAT, Modbus, or other industrial networks. The device’s fanless, DIN-rail-mounted design and wide temperature range allow reliable 24/7 operation even in harsh industrial environments.
Key Features:
- Efficient Atom Processor: Equipped with an Intel® Atom™ Z530 CPU running at 1.6 GHz with Hyper-Threading for optimized multitasking and control.
- Compact Memory Setup: Features 512 MB DDR2 RAM and 128 MB Compact Flash memory for stable embedded performance.
- Versatile Network Connectivity: Dual Gigabit Ethernet interfaces enable integration with various industrial communication protocols.
- Low Power Consumption: Consumes only 13 W of power, making it suitable for energy-efficient control cabinets.
- Modular System Integration: Compatible with Beckhoff’s modular I/O system, supporting both E-bus and K-bus expansion.
- Industrial Durability: Fanless construction ensures reliable operation under high vibration, dust, and temperature variation.
- DIN-Rail Mounting: Compact, space-saving design for easy installation in control panels and cabinets.
- Wide Temperature Range: Operates from -25°C to +60°C, meeting the demands of industrial environments.
The CX5020-0120 delivers the reliability and precision required for automation, motion control, and data acquisition in distributed industrial systems.
