Description

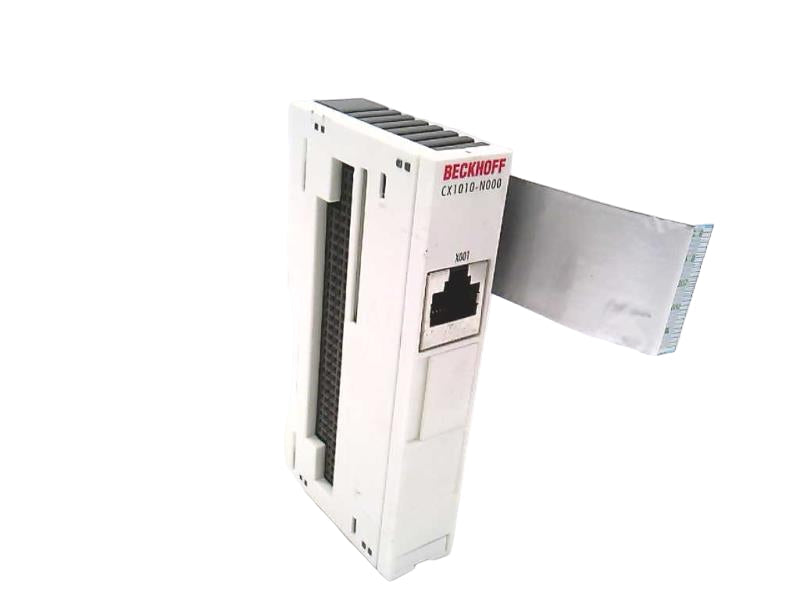

The Beckhoff CX1010-N000 CPU module is a compact embedded PC designed for industrial automation applications. It integrates an Intel-compatible processor, onboard RAM, CompactFlash® storage, and an Ethernet interface, making it suitable for PLC and motion control tasks. Its modular architecture allows flexible expansion with fieldbus and I/O interfaces for scalable control solutions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Panel Accessories |
| Part Number |
CX1010-N000 |
| Subcategory |
Panel Accessory |
| Processor |
Intel-compatible Pentium MMX, 500 MHz, 1 core |
| Main Memory |
256 MB DDR RAM (non-expandable) |
| Flash Memory |
128 MB CompactFlash® card included; expandable via Type II slot |
| Expansion Slot |
1 x CompactFlash® Type II with ejector |
| Interfaces |
1 x RJ45 Ethernet 10/100 Mbit/s |
| Operating Systems |
Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control Software |
TwinCAT 2 PLC runtime, TwinCAT 2 NC PTP runtime |
| System Bus |
16-bit ISA (PC/104) |
| I/O Connection |
Via CX1100 power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Cooling |
Passive |
| Diagnostics |
LEDs for power, LAN speed/activity, TC status, flash access |
| Real-time Clock |
Battery-backed, exchangeable |
| Power Supply |
Via CX1100-xxxx module through system bus |
| Max. Power Consumption |
8 W (CPU); 10 W (E-bus/K-bus, 5 V/2 A max.) |
| Operating Temperature |
0…50 °C |
| Storage Temperature |
-25…+85 °C |
| Humidity |
95% non-condensing |
| Vibration/Shock Resistance |
EN 60068-2-6 / EN 60068-2-27 |
| EMC Standards |
EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating |
IP20 |
| Approvals/Markings |
CE, UL |
| Mounting Type |
DIN rail in control cabinets |
| Dimensions (W x H x D) |
58 x 120 x 91 mm |
| Weight |
Approx. 355 g (0.44 lbs) |
Information About CX1010-N000
The CX1010-N000 is part of the Beckhoff CX1000 series of modular Embedded PCs. It combines the CPU, memory, and CompactFlash® storage in one unit and can be expanded with additional interfaces through its PC/104 connection. This module is designed for DIN rail mounting in control cabinets and operates with passive cooling, ensuring reliable performance in industrial environments. Compatible with TwinCAT 2 software and running Windows Embedded CE 6 or Windows Embedded Standard 2009, the CX1010-N000 can function as both a PLC and a motion controller.
Key Features:
- Compact Embedded PC design: Combines CPU, memory, and storage in a modular format for automation use.
- Processor performance: Intel Pentium-class CPU at 500 MHz with single-core architecture.
- Memory configuration: 256 MB DDR RAM and 128 MB CompactFlash® storage included, expandable via Type II slot.
- Integrated communication: One Ethernet 10/100 Mbit/s port for networking and remote programming.
- System compatibility: Supports PC/104 interface for expansion with additional Beckhoff modules.
- Control software support: Runs TwinCAT 2 PLC runtime and NC PTP motion control.
- Industrial robustness: Conforms to EN standards for shock, vibration, EMC, and IP20 protection.
- Flexible installation: Designed for DIN rail mounting within industrial control cabinets.
The CX1010-N000 delivers the reliability and precision required for industrial PLC and motion control applications.
