Description
The Beckhoff CX5020-0112 is an embedded PC controller featuring an Intel Atom® Z530 1.6 GHz single-core processor with passive cooling. It supports both TwinCAT 2 and TwinCAT 3 runtimes, integrates dual Gigabit Ethernet interfaces, and includes a CompactFlash® slot for storage. Designed for industrial automation, it offers reliable operation in harsh conditions with extended temperature tolerance and IP20 protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Controls & Indicators |
| Part Number |
CX5020-0112 |
| Subcategory |
CPU/Control Board |
| Processor |
Intel Atom® Z530, 1.6 GHz, 1 core |
| Cooling |
Passive |
| Main Memory |
512 MB RAM, expandable to 1 GB |
| Flash Memory |
128 MB CompactFlash®, expandable |
| Persistent Memory |
Integrated 1-second UPS (1 MB on CF card) |
| Interfaces |
2× RJ45 (10/100/1000 Mbit/s), 4× USB 2.0, 1× DVI-D, 1× optional |
| Diagnostics LEDs |
Power, TC status, flash access, 2× bus status |
| Clock |
Battery-backed real-time clock |
| Operating System |
Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control Software |
TwinCAT 2 PLC, NC PTP; TwinCAT 3 runtime (XAR) |
| I/O Connection |
E-bus or K-bus, automatic recognition |
| Power Supply |
24 V DC (-15 %/+20 %) |
| Current Supply (E-bus/K-bus) |
2 A (max. 10 W at 5 V) |
| Max. Power Consumption |
13 W |
| Operating Temperature |
-25…+60 °C |
| Storage Temperature |
-40…+85 °C |
| Relative Humidity |
95 %, non-condensing |
| Vibration/Shock Resistance |
EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission |
EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating |
IP20 |
| Approvals/Markings |
CE, UL, optional ATEX (II 3 G Ex nA IIC T4 Gc) |
| TwinCAT 3 Platform Level |
Performance (40) |
| Dimensions (W × H × D) |
106 × 100 × 92 mm |
| Weight |
0.575 kg (≈1.20 lbs) |

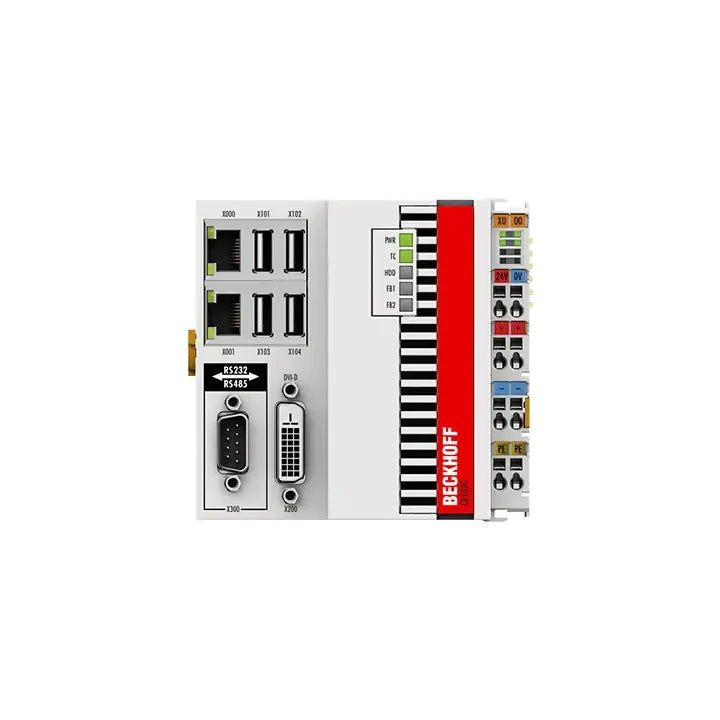

Information About CX5020-0112
The CX5020-0112 is part of Beckhoff’s CX5000 Embedded PC series, engineered for compact yet powerful control applications. It includes 512 MB RAM (expandable to 1 GB ex factory) and a 128 MB CompactFlash® card, ensuring stable system performance and persistent data handling via its integrated 1-second UPS. The unit provides multiple interfaces including 2× RJ45 Gigabit Ethernet, 1× DVI-D, 4× USB 2.0, and one optional interface, making it highly adaptable for industrial networking and visualization tasks. Designed for rugged use, the CX5020-0112 supports E-bus or K-bus I/O with automatic recognition and conforms to EMC, vibration, and shock resistance standards.
Key Features:
- Intel Atom® Z530 CPU: 1.6 GHz single-core processor with efficient passive cooling.
- Dual runtime support: Compatible with TwinCAT 2 and TwinCAT 3 (XAR) for automation and motion control.
- Memory options: 512 MB RAM standard, expandable to 1 GB; CompactFlash® storage with 128 MB supplied.
- Integrated UPS: 1-second UPS ensures secure data storage in case of power failure.
- Interfaces: 2× Gigabit Ethernet, 4× USB 2.0, 1× DVI-D, and one optional expansion interface.
- I/O flexibility: Supports both E-bus and K-bus with automatic recognition.
- Industrial reliability: Wide operating temperature range from -25 to +60 °C and shock/vibration tested.
- Certifications: CE, UL, and optional ATEX approval with Ex marking for hazardous environments.
The CX5020-0112 delivers the processing power, flexibility, and durability required for advanced embedded control systems.
