Description

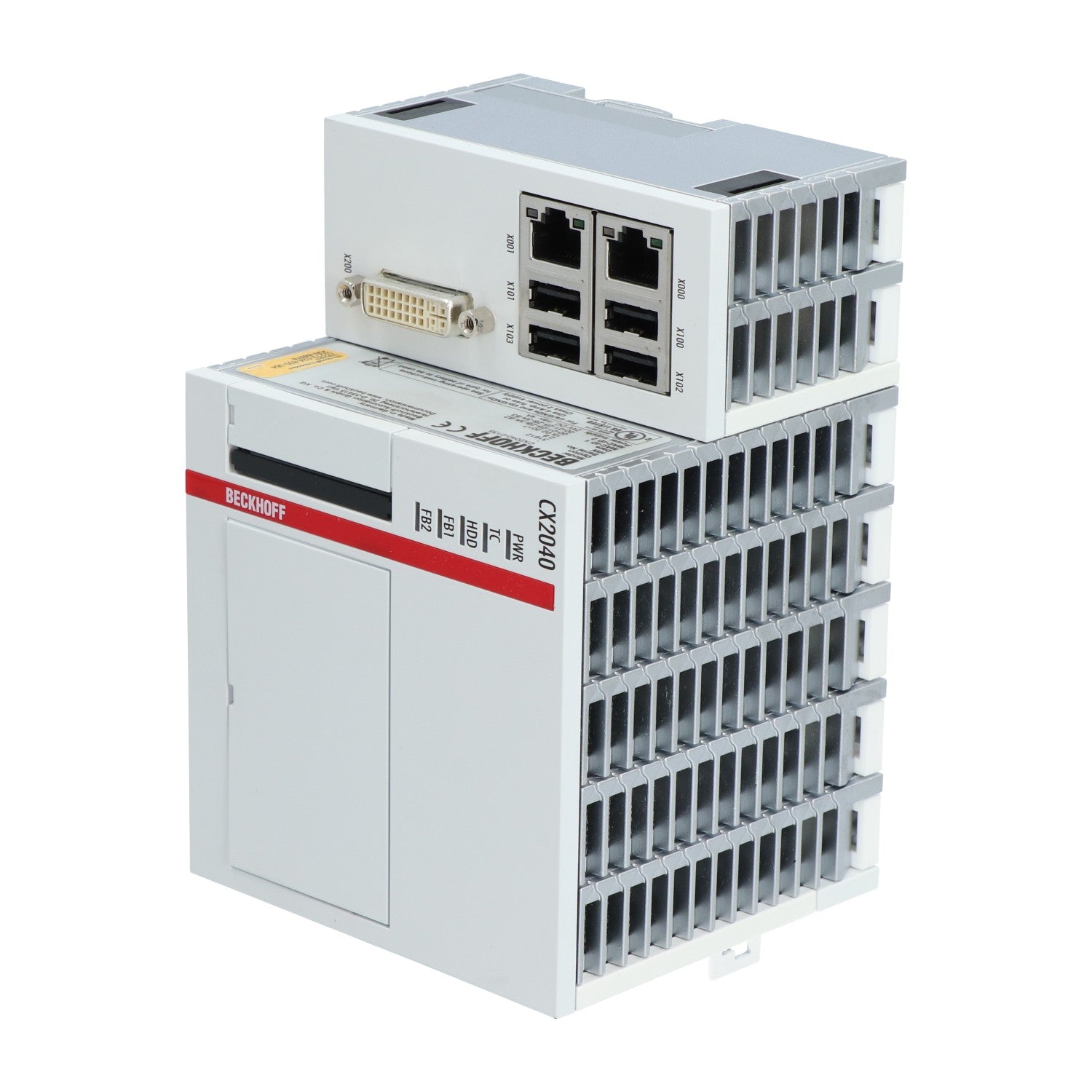

The Beckhoff CX2040-0135 is a high-performance Embedded PC designed for modular DIN rail installation in demanding industrial automation environments. It features a 2.1 GHz quad-core Intel processor, 4 GB DDR3 RAM, and a 40 GB flash memory running Windows Embedded Standard 7 P 64-bit for efficient multitasking and real-time control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Computers |
| Part Number |
CX2040-0135 |
| Subcategory |
Embedded PC |
| Processor |
Intel Quad-Core CPU |
| Clock Speed |
2.1 GHz |
| Number of Cores |
4 |
| Operating System |
Windows Embedded Standard 7 P (64-bit) |
| Memory |
4 GB DDR3 RAM (internal, non-expandable) |
| Storage |
40 GB flash memory |
| Persistent Memory |
128 KB integrated |
| Ethernet Ports |
2 x RJ45 (10/100/1000 Mbit/s) |
| Expansion Slots |
Modular system with optional I/O, fieldbus, or communication modules |
| Power Supply |
24 V DC |
| Cooling |
Passive fanless cooling system |
| Diagnostic Indicators |
LEDs for power, bus, and system status |
| Mounting |
DIN rail installation |
| Protection Class |
IP20 |
| Operating Temperature |
0…55°C |
| Storage Temperature |
-25…+85°C |
| Relative Humidity |
95%, non-condensing |
| Compatibility |
TwinCAT 2 and TwinCAT 3 control runtimes |
| Weight |
3.00 lbs (approx. 1.36 kg) |
Information About CX2040-0135
The CX2040-0135 belongs to Beckhoff’s CX2000 series of Embedded PCs, developed for high-performance industrial control, motion, and process automation. It integrates a 2.1 GHz quad-core Intel processor that provides the computational power needed for complex automation tasks and multi-axis motion control. The system includes 4 GB DDR3 RAM, 40 GB flash storage, and 128 KB of persistent memory for secure data retention after power loss. Running Windows Embedded Standard 7 P (64-bit), it offers a flexible software platform compatible with Beckhoff’s TwinCAT automation suite. Its modular architecture allows easy expansion with I/O and communication modules, enabling scalable control solutions for industrial systems.
Key Features:
- High-Performance Processor: Equipped with a 2.1 GHz Intel Quad-Core CPU, delivering exceptional multitasking and real-time responsiveness.
- Integrated Memory System: 4 GB DDR3 RAM with 40 GB flash memory ensures stable system performance and fast data access.
- Persistent Storage: 128 KB non-volatile memory maintains critical data during power interruptions.
- Modular Architecture: Supports optional I/O, fieldbus, and communication modules for flexible system scalability.
- Advanced Connectivity: Two Gigabit Ethernet ports enable high-speed network communication and EtherCAT integration.
- Windows Embedded Platform: Preinstalled Windows Embedded Standard 7 P (64-bit) supports standard and TwinCAT software environments.
- Fanless Cooling: Passive thermal management provides silent operation and improved system reliability.
- Industrial Durability: IP20-rated housing designed for control cabinet installation with 24 V DC power input.
The CX2040-0135 delivers the reliability and precision required for high-performance automation, real-time control, and industrial computing applications.
