Description

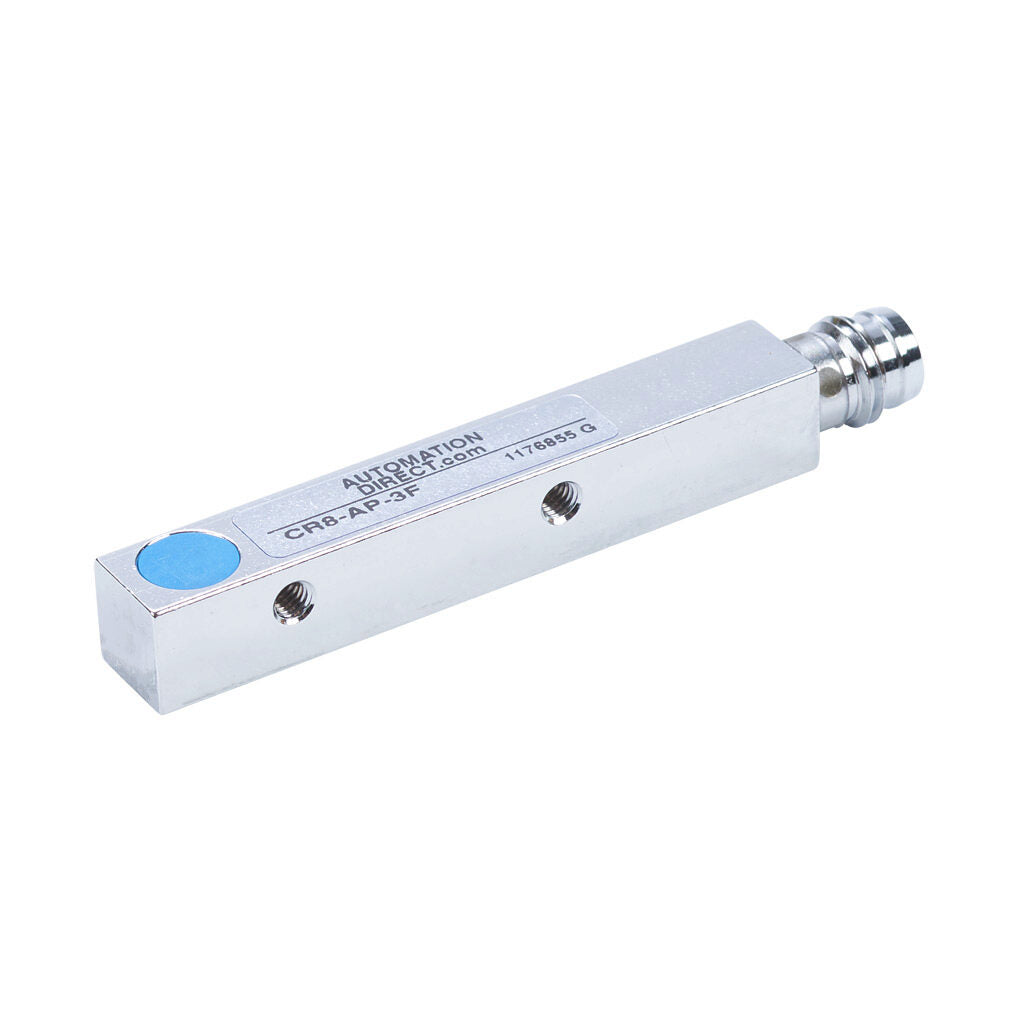

The AutomationDirect CR8-AP-3F is a rectangular inductive proximity sensor designed for standard-duty industrial sensing applications in compact spaces. It provides a 3mm sensing distance and PNP normally open output for reliable detection of metallic objects. This sensor is used in automation systems requiring fast, non-contact position or presence detection with IP67 environmental protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
AutomationDirect |
| Category |
Industrial Sensors |
| Part Number |
CR8-AP-3F |
| Subcategory |
Inductive Proximity Sensors |
| Sensor Type |
Inductive |
| Shape |
Rectangular |
| Housing Size |
8 x 8 x 59 mm |
| Housing Material |
Nickel-Plated Brass |
| Sensing Distance |
3 mm |
| Output Type |
PNP, Normally Open |
| Number of Wires |
3 |
| Operating Voltage |
10–30 VDC |
| Switching Frequency |
1 kHz |
| Mounting Type |
Semi-Flush |
| Connection Type |
3-Pin M8 Quick-Disconnect |
| Operating Temperature |
-25 to 70°C |
| IP Rating |
IP67 |
| Weight |
0.10 kg |
Information About CR8-AP-3F
The CR8-AP-3F is an AutomationDirect inductive proximity sensor engineered with a compact 8 x 8 x 59mm rectangular nickel-plated brass housing. It utilizes triple sensing technology to provide stable detection performance in standard industrial environments. The sensor operates on 10–30 VDC and features a 3-wire PNP normally open configuration for integration with PLC digital inputs. Designed for semi-flush mounting, it includes a 3-pin M8 quick-disconnect connection and supports switching frequencies up to 1 kHz for responsive object detection.
Key Features:
- Inductive Sensing Technology: Detects metallic targets without physical contact.
- 3mm Sensing Distance: Suitable for precise short-range object detection.
- PNP Normally Open Output: Compatible with standard PLC digital input circuits.
- Compact Rectangular Housing: 8 x 8 x 59mm body for tight installation spaces.
- 10–30 VDC Operating Voltage: Supports common industrial DC power systems.
- 1 kHz Switching Frequency: Provides fast response for dynamic automation processes.
- IP67 Protection Rating: Sealed for protection against dust and water ingress.
- M8 Quick-Disconnect Connector: Simplifies wiring and maintenance (cable sold separately).
The CR8-AP-3F delivers the reliability and precision required for compact industrial metal detection and position sensing applications.
