Description

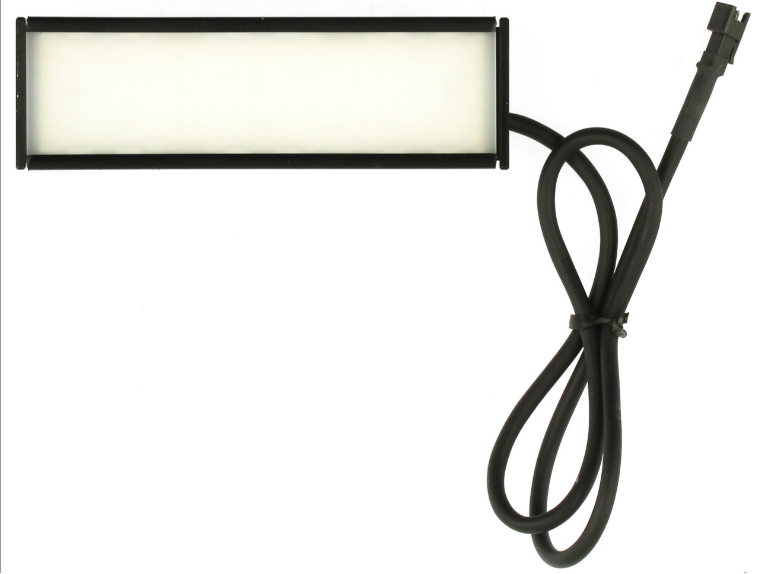

The Keyence CA-DBW12W is a high-intensity white bar light designed for uniform illumination in machine vision and inspection applications. With a 120 mm length and 13.8 W power consumption, it delivers stable brightness ideal for detecting surface variations and enhancing image contrast in automated systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Lighting |
| Part Number |
CA-DBW12W |
| Subcategory |
Lighting Fixture |
| Type |
Bar Light |
| LED Color |
White |
| Length |
120 mm |
| Diffusion Plate |
Included (thickness approx. 2 mm / 0.08") |
| Polarizing Diffusion Plate |
Compatible with OP-87975 |
| Power Consumption |
13.8 W |
| Input Voltage |
12 VDC |
| Mounting Orientation |
Multi-directional, surface or bracket mount |
| Material |
Aluminum body with optical diffusion panel |
| Cooling Method |
Passive air-cooled |
| Lifetime |
20,000+ hours typical (at rated current) |
| Operating Temperature |
0 to +40 °C (no condensation) |
| Storage Temperature |
-10 to +60 °C |
| Operating Humidity |
35 to 85 % RH (non-condensing) |
| Protection Rating |
Standard indoor type (non-waterproof) |
| Weight |
Approx. 195 g |
Information About CA-DBW12W
The CA-DBW12W belongs to Keyence’s CA-DBW series of bar lights, known for precise illumination control and high-quality light distribution. It uses high-efficiency white LEDs and includes a diffusion plate approximately 2 mm (0.08") thick to ensure even light output without glare. Operating at 12 VDC, this compact lighting module supports flexible mounting orientations, making it ideal for line-scan cameras, object recognition, and appearance inspection setups. The unit is compatible with Keyence’s optional OP-87975 polarizing diffusion plate, expanding its adaptability for reflective target applications.
Key Features:
- High-Intensity Illumination: Provides bright, even white LED lighting for inspection and vision systems.
- Compact 120 mm Design: Slim profile enables installation in tight or multi-axis inspection environments.
- Integrated Diffusion Plate: Ensures soft and uniform light distribution for accurate image capture.
- Energy Efficient: Operates at 13.8 W, minimizing power consumption without compromising brightness.
- Stable 12 VDC Input: Designed for reliable integration with machine vision controllers and LED drivers.
- Optional Polarizing Plate: Compatible with OP-87975, reducing glare on reflective surfaces.
- Durable Construction: Engineered for long operating life under continuous industrial use.
- Easy Mounting Options: Supports multiple installation orientations for maximum lighting flexibility.
- Consistent Color Output: Delivers stable white illumination for repeatable inspection results.
The CA-DBW12W delivers the consistent, high-quality lighting required for precision visual inspection, automation, and quality assurance applications.
