Description

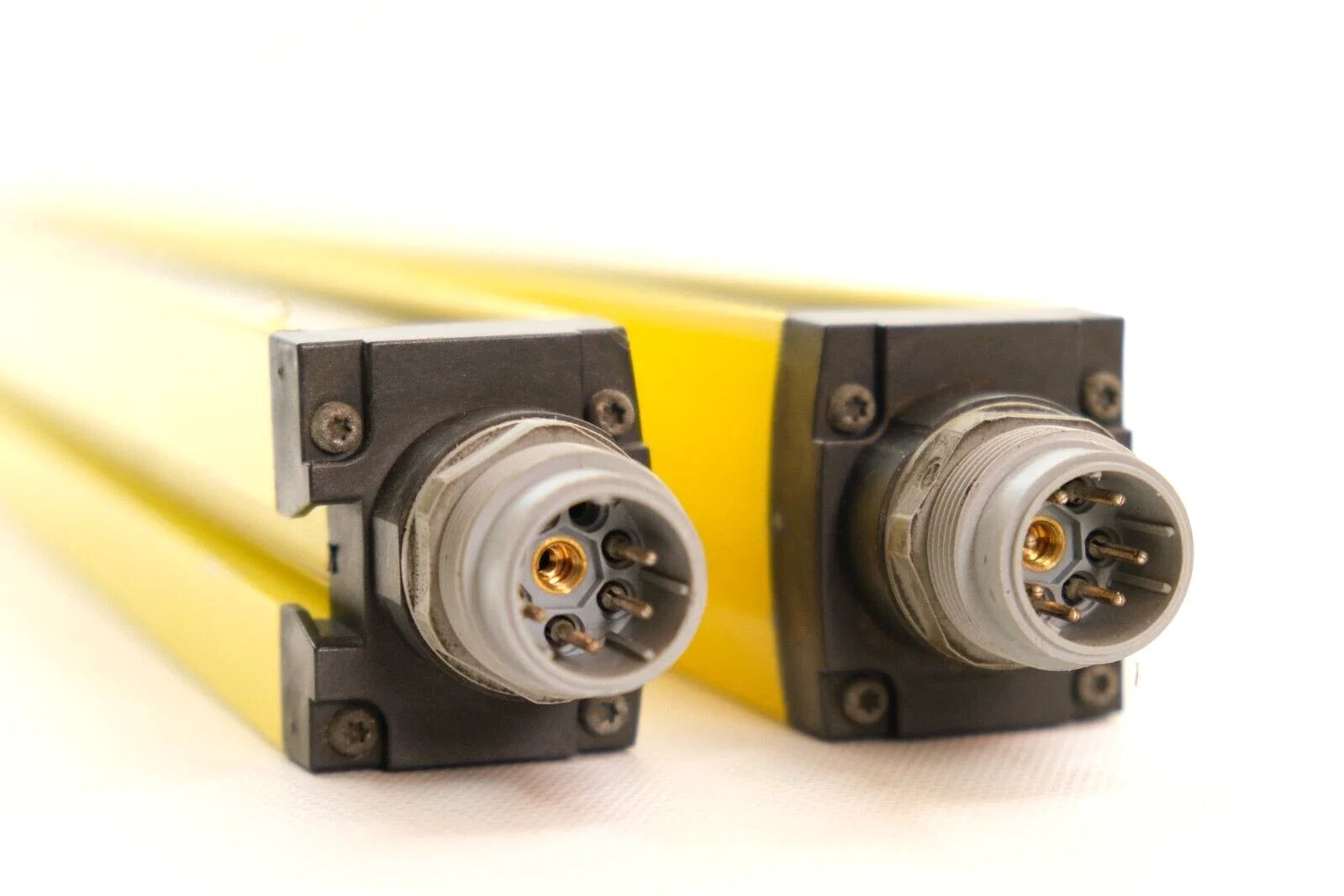

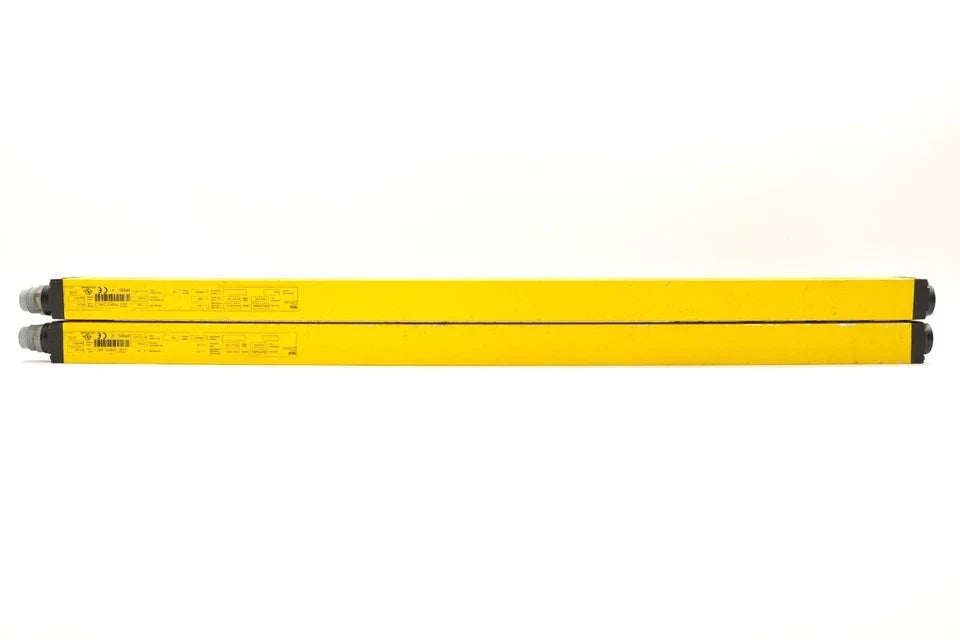

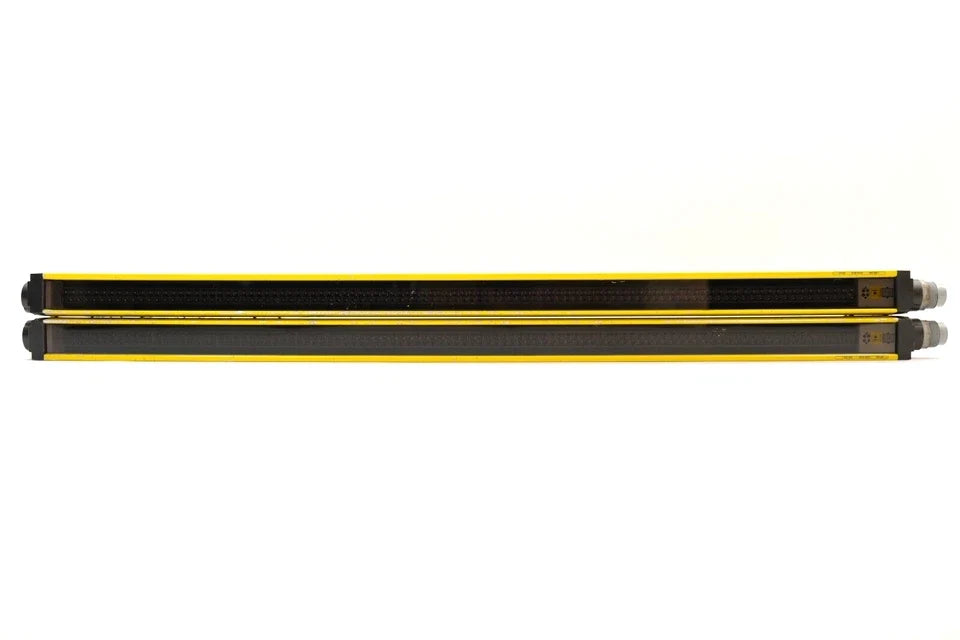

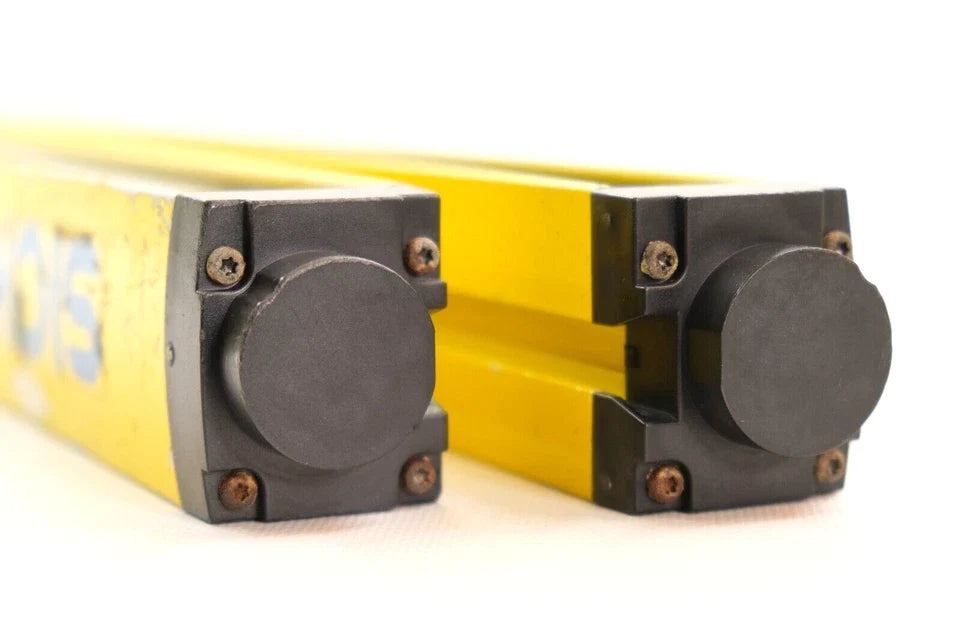

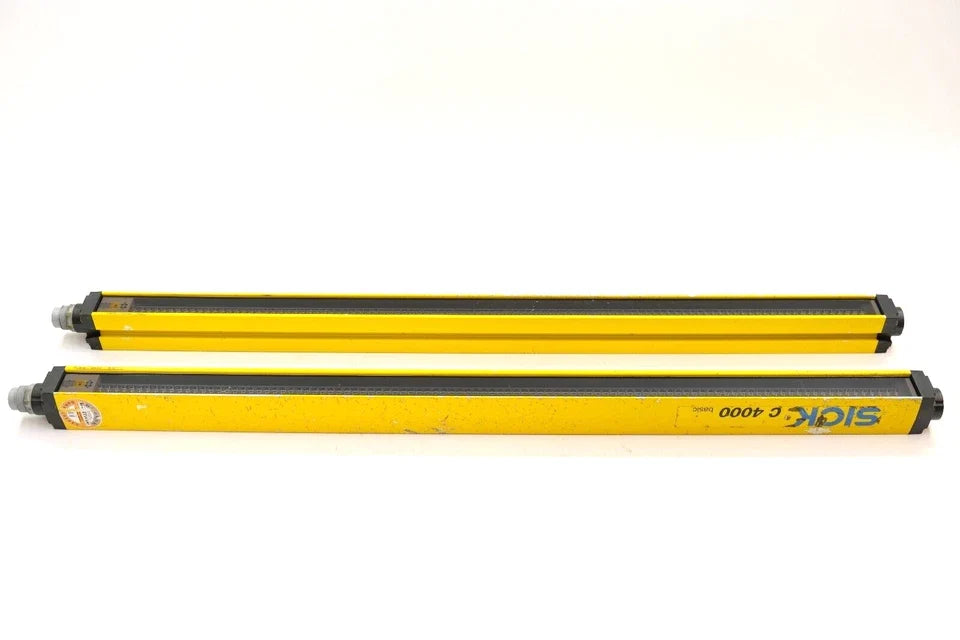

The SICK C40E-0701BH030 is a Type 4 safety light curtain receiver designed for non-contact machine safeguarding in industrial environments. It features a 14 mm resolution and a 750 mm protective field height with a scanning range of up to 5 meters. This receiver unit is used in conjunction with a matching transmitter to form a complete safety light curtain system, offering high safety integrity and reliable protection for personnel and machinery.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
C40E-0701BH030 |
| Subcategory |
Safety Light Curtains |
| Series |
C4000 Basic |
| Resolution |
14 mm |
| Protective Field Height |
750 mm |
| Scanning Range |
5 m |
| Synchronization |
Optical synchronization |
| Safety Type |
Type 4 (IEC 61496-1) |
| Safety Integrity Level |
SIL 3 (IEC 61508) |
| Performance Level |
PL e (EN ISO 13849) |
| Category |
Category 4 (EN ISO 13849) |
| PFHD |
15 × 10⁻⁹ (EN ISO 13849) |
| Mission Time |
20 years (EN ISO 13849) |
| Output Type |
2 PNP semiconductors, short-circuit protected |
| Output Voltage |
24 V DC (15 V DC to 28.8 V DC) |
| Residual Ripple |
≤ 10% |
| Maximum Cable Length |
≤ 15 m |
| System Connection |
M12 male connector, 8-pin |
| Housing Cross-Section |
48 mm x 40 mm |
| Housing Material |
Aluminum extruded profile |
| Enclosure Rating |
IP65 |
| Operating Temperature |
0 to +55 °C |
| Storage Temperature |
–25 to +70 °C |
| Air Humidity |
15% to 95%, Non-condensing |
| Vibration Resistance |
5 g, 10 Hz to 55 Hz (IEC 60068-2-6) |
| Shock Resistance |
10 g, 16 ms (EN 60068-2-27) |
| Weight |
1,7 kg |
| Wavelength |
850 nm |
Information About C40E-0701BH030
The C40E-0701BH030 is part of SICK’s C4000 Basic series of safety light curtains, engineered to meet Type 4 safety standards for industrial machine protection. It provides a high level of safety, achieving SIL 3 and PL e ratings, and is equipped with optical synchronization for seamless operation with its paired emitter. The receiver supports hard-wired configuration and is designed for easy integration into automated systems. With a robust aluminum housing and IP65 rating, the unit is built to withstand harsh industrial environments.
Key Features:
- Type 4 Safety Classification: Complies with IEC 61496-1 for high-level machine safeguarding.
- 14 mm Resolution: Ensures precise detection for hand and body protection applications.
- 750 mm Protective Field Height: Provides reliable safeguarding for larger vertical openings.
- Scanning Range of 5 m: Allows for flexible installation and wide-area coverage.
- SIL 3 / PL e Safety Integrity Levels: Meets the highest safety standards for personnel protection.
- Optical Synchronization: Facilitates smooth operation with minimal wiring requirements.
- Hard-Wired Configuration: Supports simple and reliable system integration.
- IP65 Enclosure Rating: Designed for continuous operation in harsh environments.
The C40E-0701BH030 delivers the reliability and precision required for high-level safety light curtain applications in industrial automation.
