Description

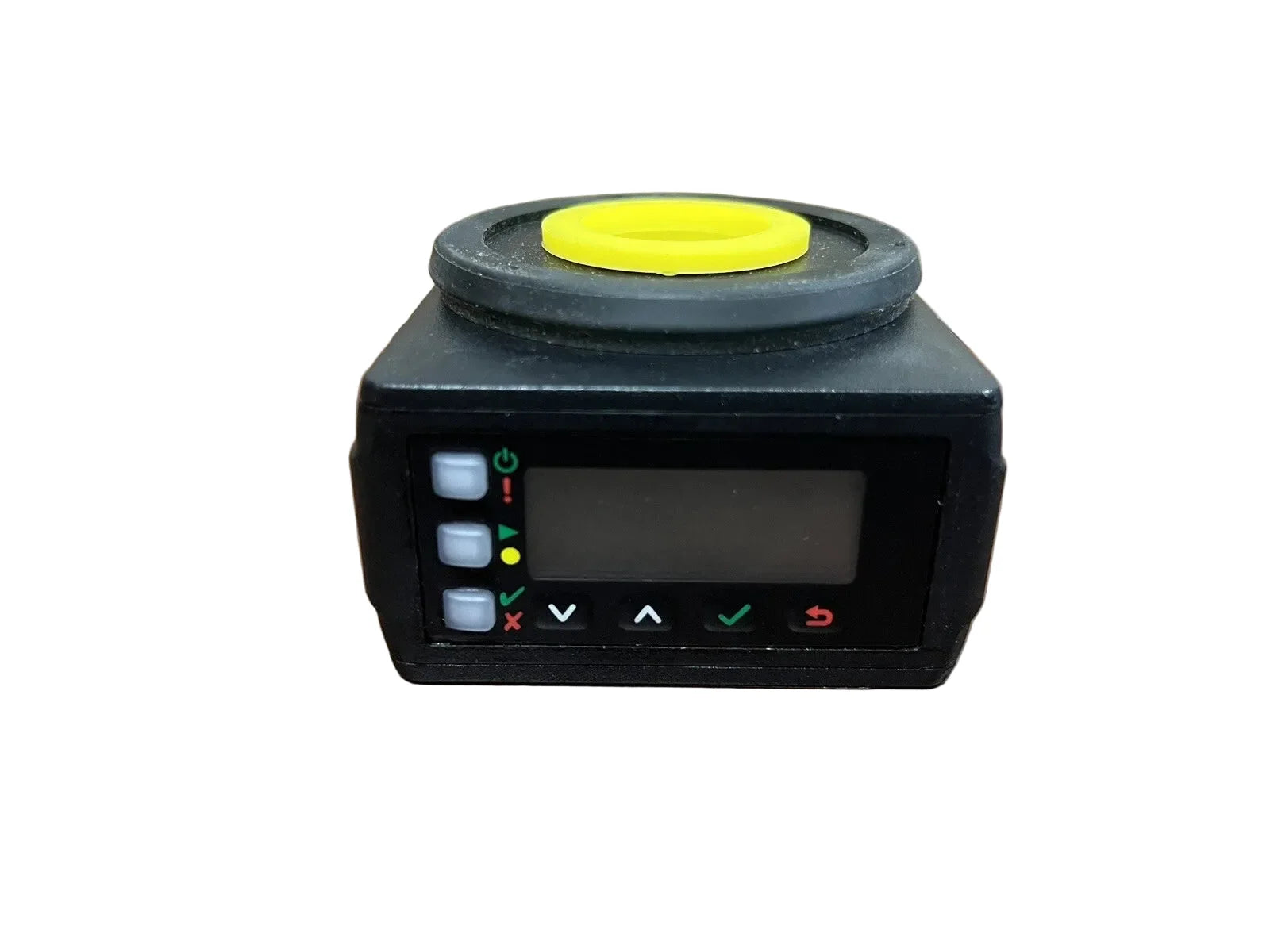

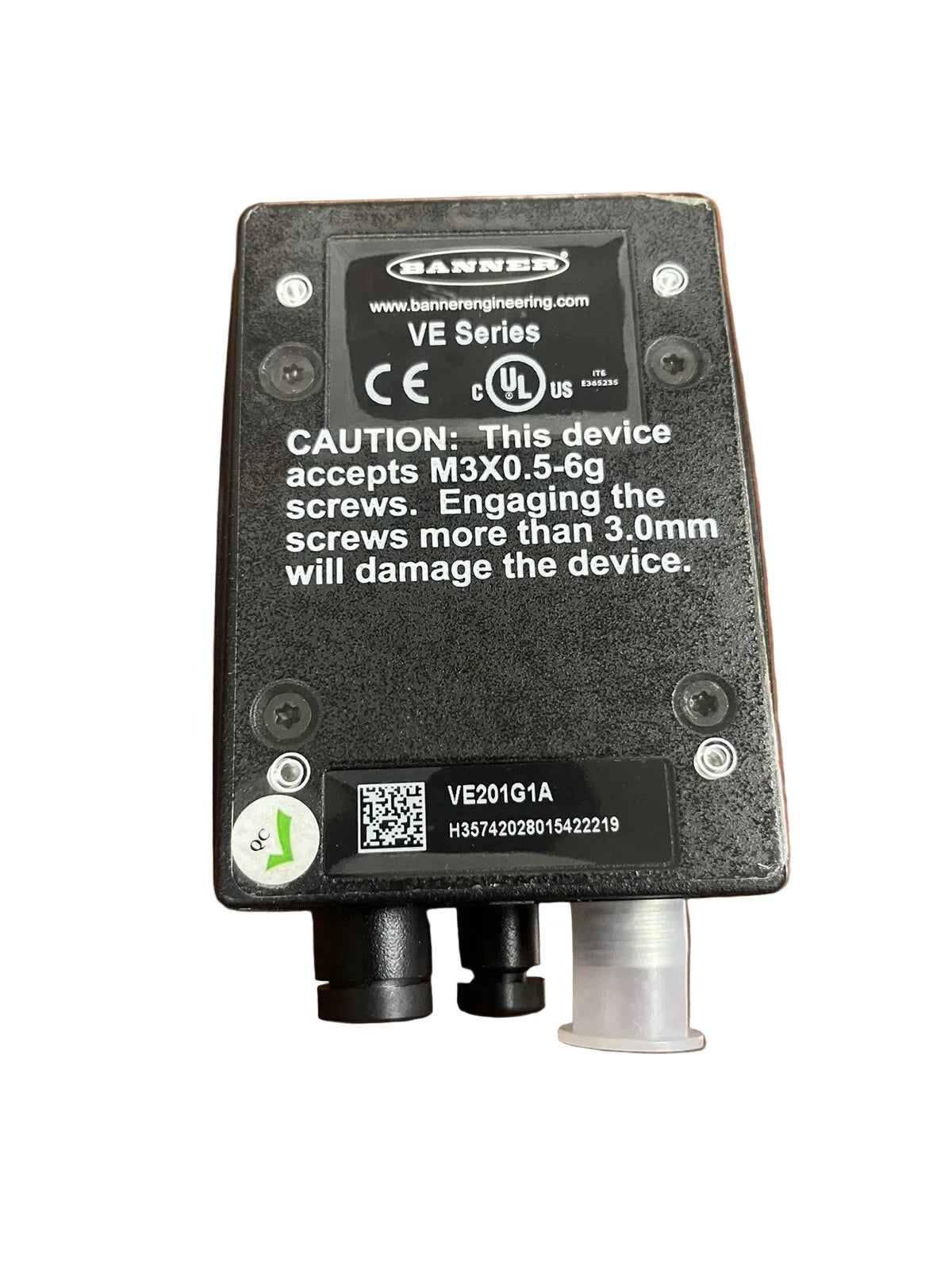

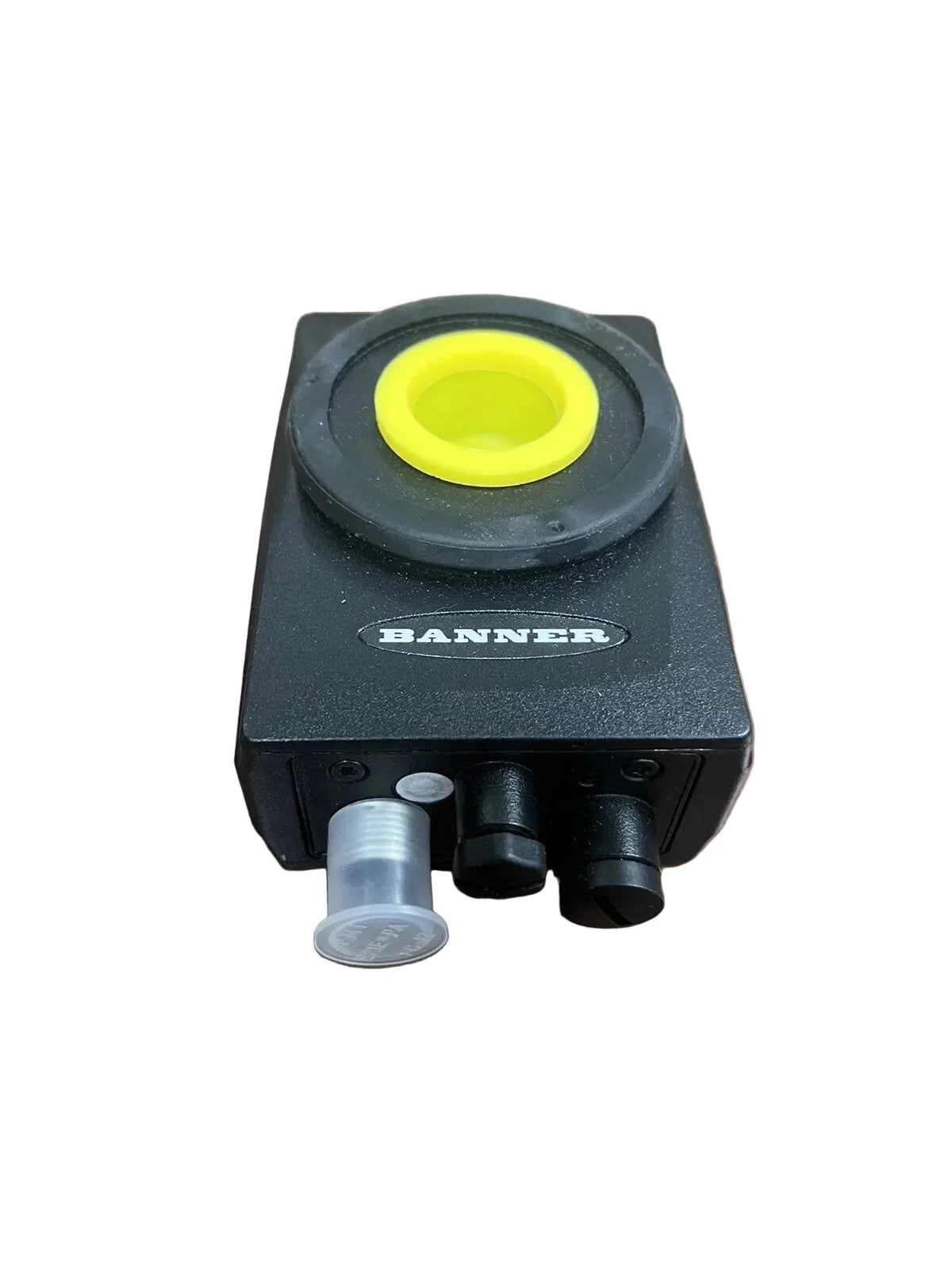

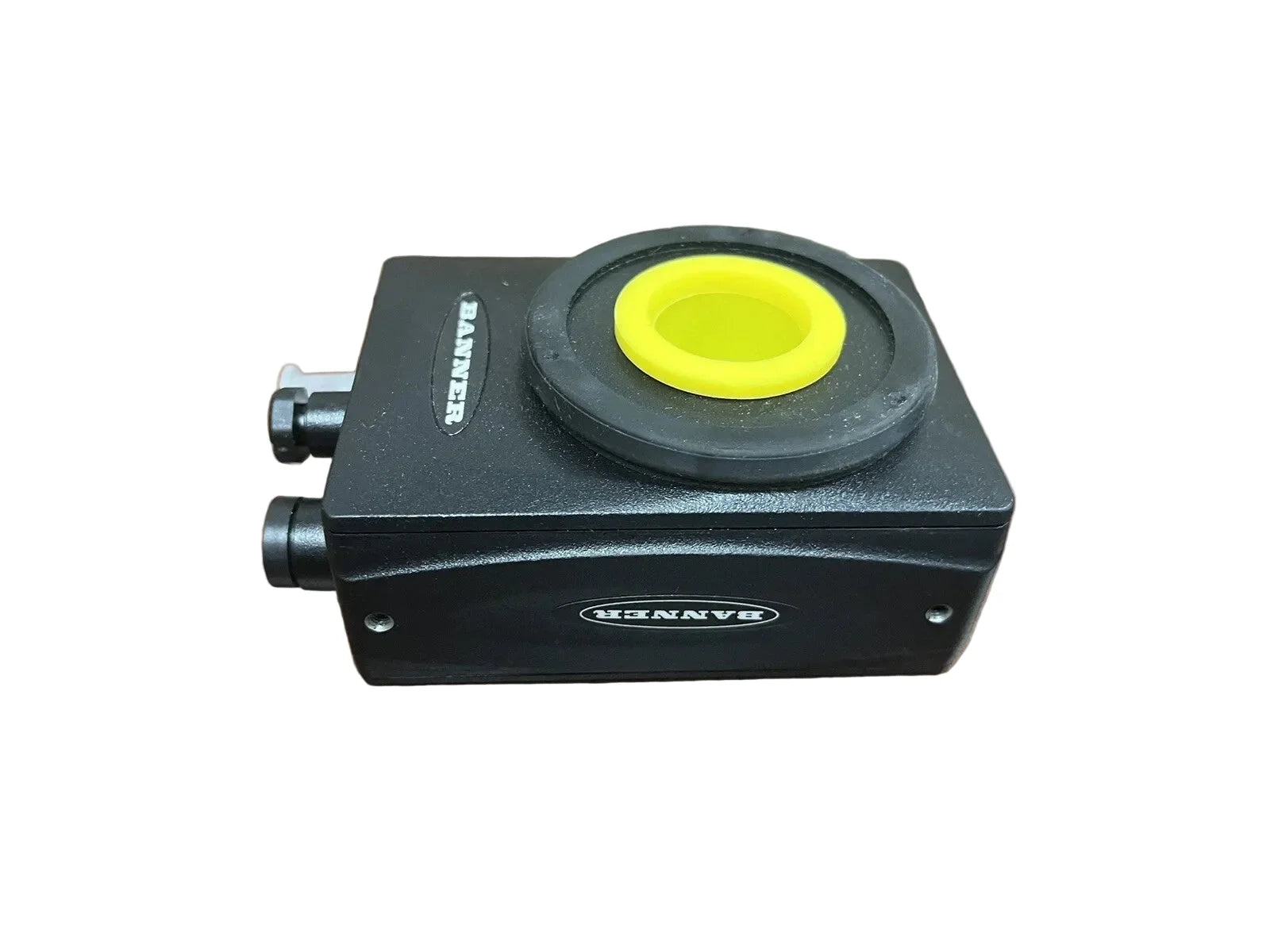

The Banner Engineering VE201G1A is a smart industrial vision camera designed for automated inspection, identification, positioning, and quality control applications. Featuring a 1.3 MP monochrome CMOS image sensor, onboard vision processing, and multiple industrial communication protocols, it provides reliable machine vision performance in demanding manufacturing environments.
Technical Specifications
| Condition |
New |
| Brand |
Banner Engineering |
| Part Number |
VE201G1A |
| Category |
Camera & Vision |
| Subcategory |
Video Camera |
| Product Type |
Smart Vision Camera |
| Series |
VE |
| Image Sensor |
CMOS |
| Image Type |
Monochrome |
| Resolution |
1.3 MP (1280 × 1024 Pixels) |
| Lens Mount |
C-Mount (Lens Required) |
| Supply Voltage |
12–30 VDC |
| Communication |
EtherNet/IP, PROFINET, Modbus/TCP, RS-232, FTP |
| Digital I/O |
6 Optically Isolated I/O |
| Protection Rating |
IP67 |
| Housing Material |
Aluminum |
| Washdown Rated |
Yes |
| Mounting Type |
Chassis Mount |
| Operating Temperature |
0°C to +50°C |
| Software |
Vision Manager Software Included |
| Dimensions (H × W × L) |
88 × 67 × 41 mm |
| Weight |
0.58 lbs |
Information About VE201G1A
The VE201G1A is part of Banner Engineering's VE Series Smart Cameras, combining image acquisition, processing, and industrial networking in a rugged IP67-rated housing. Equipped with a 1280 × 1024 monochrome CMOS sensor and a C-Mount lens interface, it supports applications such as presence verification, defect detection, part positioning, OCR, and traceability. Integrated Vision Manager Software and built-in industrial communication protocols enable seamless deployment without requiring an external vision controller.
Key Features:
- VE Series smart vision camera
- 1.3 MP monochrome CMOS image sensor
- 1280 × 1024 image resolution
- Integrated onboard image processing
- C-Mount lens interface (lens required)
- Six optically isolated digital I/O
- EtherNet/IP, PROFINET, Modbus/TCP, RS-232, and FTP communication
- IP67-rated aluminum housing
- Washdown-rated construction
- Compatible with Banner Vision Manager Software
The VE201G1A delivers high-performance industrial vision capabilities for inspection, identification, and quality control applications.
