Description

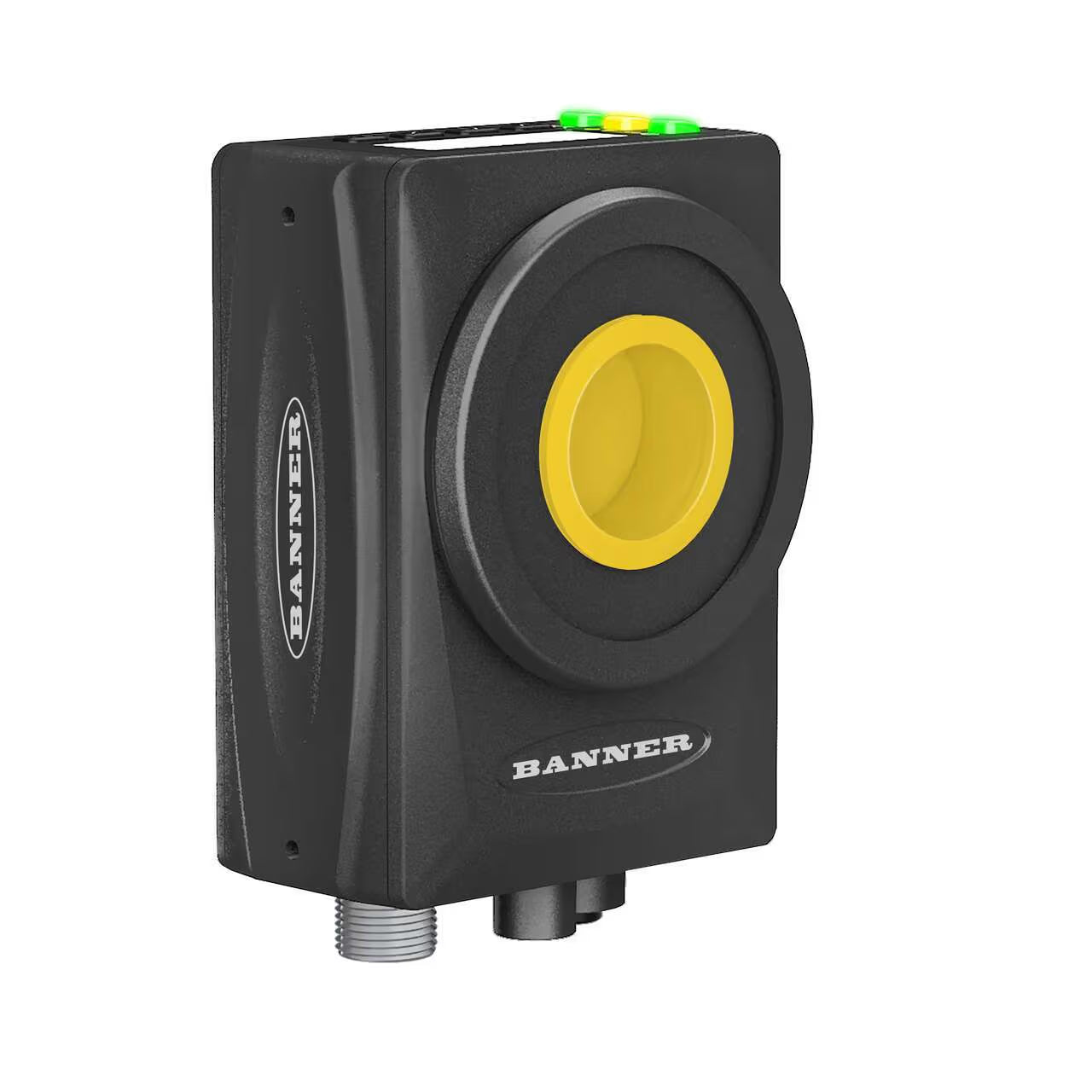

The Banner Engineering VE200G1A is a smart industrial vision camera designed for automated inspection, identification, positioning, and quality control applications. Featuring a grayscale WVGA image sensor, onboard image processing, and multiple industrial communication protocols, it provides a compact all-in-one solution for machine vision in demanding manufacturing environments.
Technical Specifications
| Condition |
New |
| Brand |
Banner Engineering |
| Part Number |
VE200G1A |
| Category |
Camera & Vision |
| Subcategory |
Camera Head |
| Product Type |
Smart Vision Camera |
| Series |
VE Series |
| Image Resolution |
752 × 480 Pixels (WVGA) |
| Image Type |
Grayscale |
| Lens Mount |
C-Mount (Lens Required) |
| Autofocus |
No |
| Digital I/O |
6 Optically Isolated Inputs/Outputs |
| Communication |
EtherNet/IP, PROFINET, Modbus/TCP, RS-232, FTP |
| Housing Material |
Aluminum |
| Protection Rating |
IP67 |
| Washdown Rated |
Yes |
| Dimensions (H × W × L) |
88 × 67 × 41 mm |
| Operating Software |
Banner Vision Manager |
| Application |
Machine Vision, Inspection, Identification, Quality Control |
| Weight |
0.80 lbs |
Information About VE200G1A
The VE200G1A is part of Banner Engineering's VE Series Smart Cameras, combining image acquisition, processing, and industrial networking in a rugged IP67-rated enclosure. Equipped with a 752 × 480 grayscale image sensor and a C-Mount lens interface, the camera supports a wide variety of inspection tasks, including presence detection, part positioning, flaw detection, traceability, and quality assurance. It integrates directly with industrial control systems through EtherNet/IP, PROFINET, Modbus/TCP, RS-232, and FTP, eliminating the need for an external vision controller.
Key Features:
- VE Series smart vision camera
- 752 × 480 pixel grayscale image sensor
- Integrated onboard vision processing
- C-Mount lens interface (lens required)
- Six optically isolated digital I/O
- EtherNet/IP, PROFINET, Modbus/TCP, RS-232, and FTP communication
- IP67-rated aluminum housing
- Washdown-rated construction
- Compatible with Banner Vision Manager Software
- Designed for inspection, identification, positioning, and quality control
The VE200G1A delivers reliable industrial machine vision with integrated processing and extensive factory communication support.
