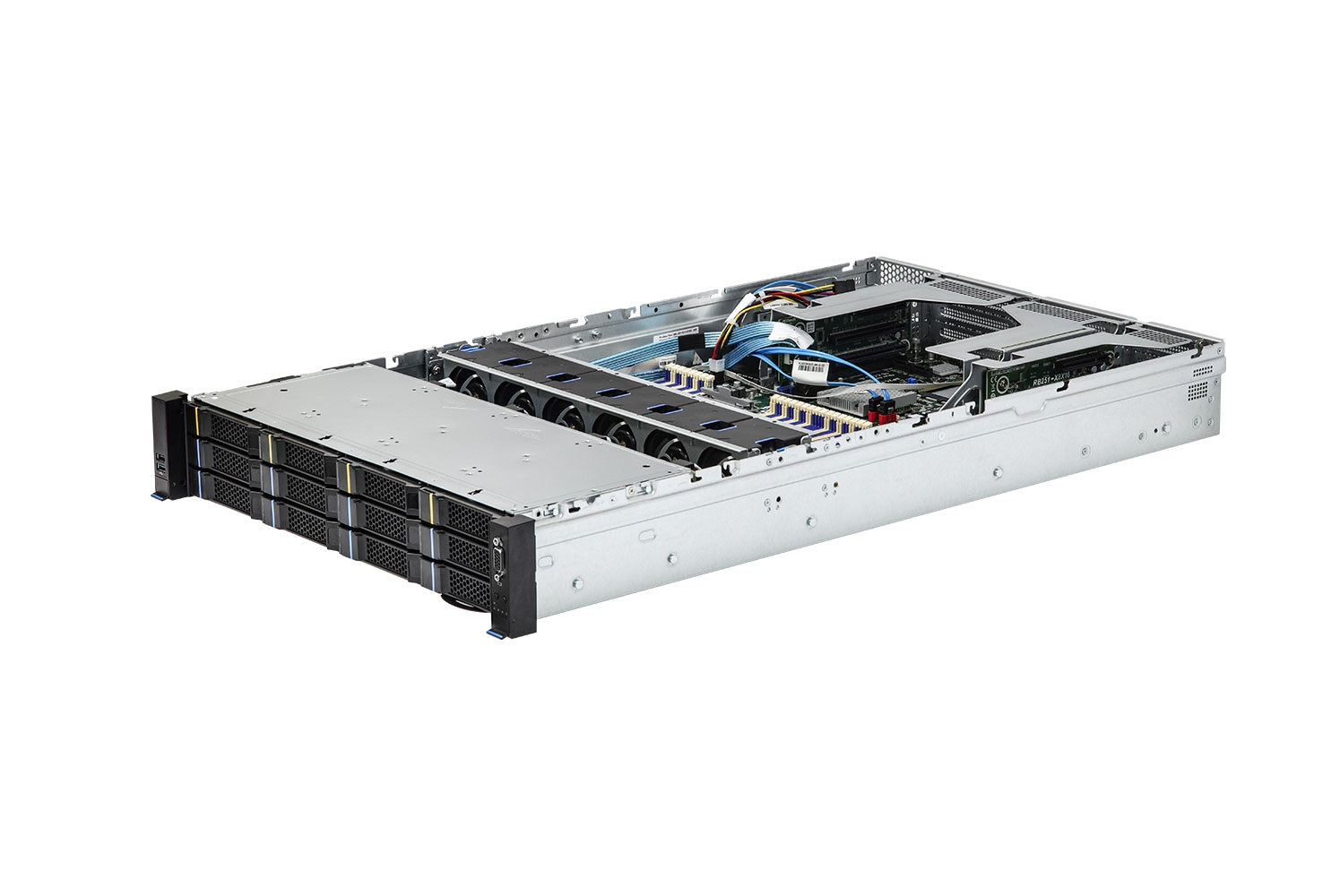

The ASRock Rack 2U2G-ICX2 is a 2U rackmount server barebone purpose-built for high-performance computing (HPC) and AI workloads. It is specifically designed to accommodate high-power accelerators, including support for NVIDIA A100 GPUs.
Specifications
Model Number: 2U2G-ICX2
Brand: ASRock
Alt Part Number(s): 2U2G-ICX2
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 2U2G-ICX2
Processor Type: 3rd Gen Intel Xeon Scalable
Processor Socket: Dual LGA 4189 (Socket P+)
Processor Core: 80-Core
Processor Power: 230W
Chipset Type: Intel C621A
Motherboard: SP2C621D32TM3
GPU Supported: NVIDIA A100 (4GPUs)
Networking: 2 × 1GbE (Intel i350),1 × OCP NIC 3.0 (PCIe 4.0 x16)
Drive Bays: 12 × 3.5"/2.5" hot-swap, 2 × 2.5" SATA, 2 × M.2
Graphics Controller: ASPEED AST2500 VGA (DB15 port)
Memory Capacity: Up to 256GB per DIMM
Memory Supported: 8TB
Memory Technology: DDR4 288-pin RDIMM, LRDIMM, and 3DS variants
Memory Channels: 16‑Channel
Memory Slots: 32 x DIMM
Expansion Slots: 4 PCIe 5.0 x16 slots
Cooling: 6 PWM hot-swap fans
Power Supply: 1+1 redundant 2000W CRPS 80-PLUS (Platinum)
Form Factor: 2U Rackmount
