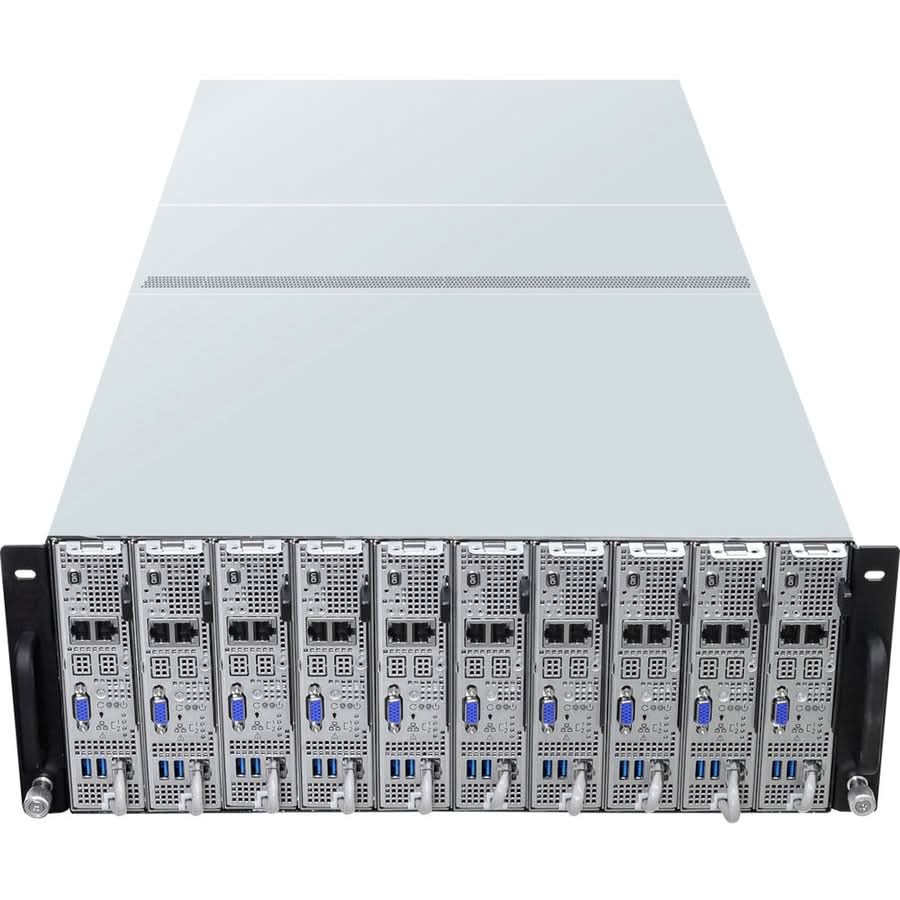

ASRock 4U18N-B550/2T 4U Rackmount Storage Server Barebone
- 4U chassis with 18 nodes support 36 x 2.5'' NVMe SSD, 1600W Redundant (3+1) PSU
- Supports AMD Ryzen™ 5000, 4000G, 3000G, 3000 series Processors
- 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
- Supports 2 x 2.5" NVMe SSD per node
- Integrated IPMI 2.0 and KVM with Dedicated LAN
- 2x RJ45 (10GbE) by Intel® X710-AT2
Product Specification:
|
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Part Number: 4U18N-B550/2T |
| Manufacturer Website Address: http://www.asrock.com |
| Maximum Memory Supported: 32 GB |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock, Inc |
| Product Model: 4U18N-B550/2T |
| Product Name: 4U18N-B550/2T Barebone System |
| Processor Supported: Ryzen 9,Ryzen 7,Ryzen 5,Ryzen 3,Ryzen 7 PRO,Ryzen 5 Pro,Ryzen 3 PRO |
| Controller Type: Serial ATA/600 |
| Processor Socket: Socket AM4 |
| Rack Height: 4U |
| Brand Name: ASRock |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: AMD |
| Chipset Model: B550 |
| Graphics Controller Model: AST2500 |
| Number Of Power Supplies Installed: 4 |
| Graphics Memory Capacity: 16 MB |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Ethernet Technology: 10 Gigabit Ethernet |
| Number Of Total Expansion Bays: 2 |
| Maximum Power Supply Wattage: 1600 W |
| Total Number Of Usb Ports: 2 |
| Number Of Vga Ports: 1 |
| Number Of Usb 3.2 Gen 1 Ports: 2 |
| Total Number Of Memory Slots: 4 |
Boost your enterprise performance with the ASRock 4U18N-B550/2T 4U Rackmount Storage Server Barebone - ORDER TODAY!
*
