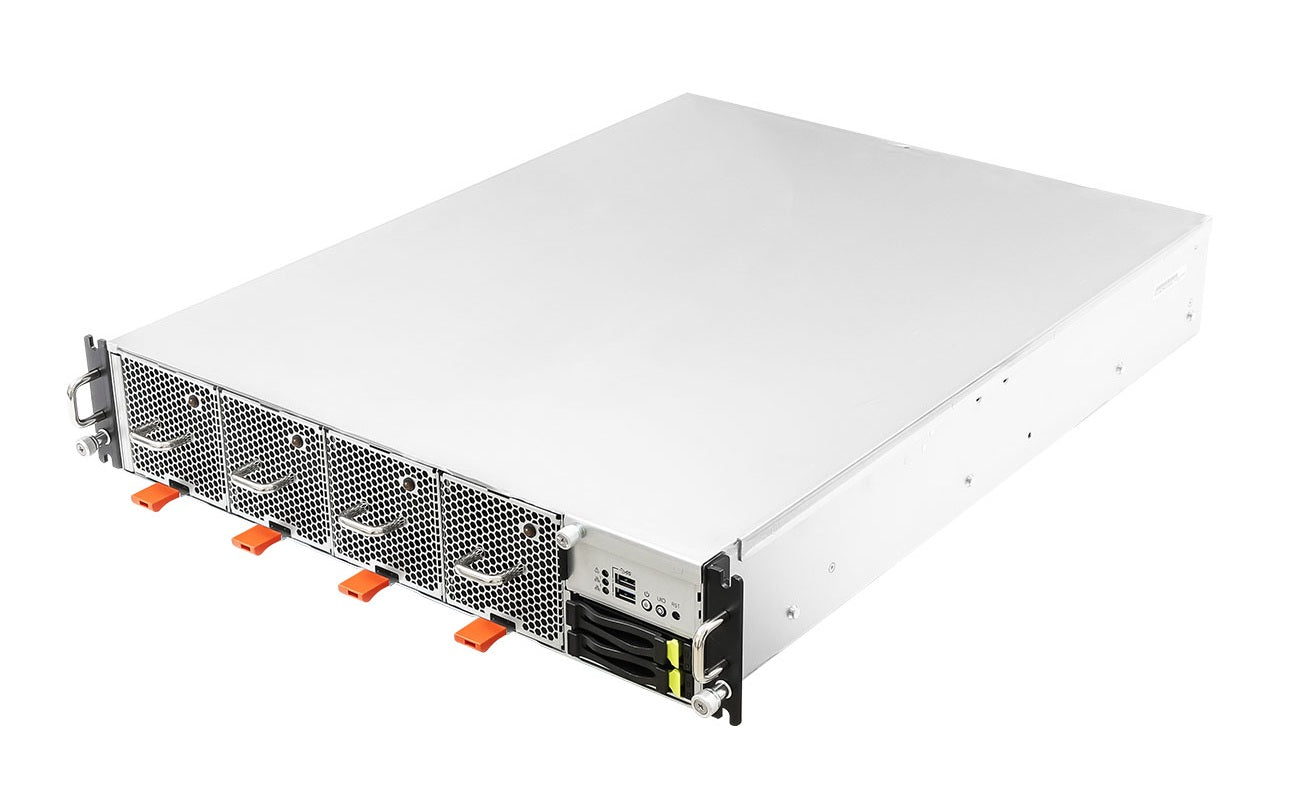

The 2U2G-EGS is a rack‑mount server barebone system designed for enterprise and data‑center use. Specifically, it is a 2U rackmount server chassis with server‑grade motherboard and power system, supporting a single Intel Xeon Scalable processor and high‑performance server hardware
Specifications
Model Number: 2U2G-EGS
Brand: ASRock
Alt Part Number(s): 2U2G-EGS
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 2U2G-EGS
Processor Type: 5th and 4th Gen Intel Xeon Scalable processors
Processor Core: 64 Core/128 Thread
Processor Power: Up to 350W
Processor Socket: Single Socket E (LGA 4677)
Motherboard: SPC741D16QM3
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 3 (2 × 1 GbE LAN + 1 × dedicated IPMI)
Number of Drive Bays: 2 × 2.5″ hot‑swap NVMe bays+M.2 Slots
Expansion Slots: 4 Slots
Memory Supported: Up to 4TB
Memory Technology: DDR5 288-pin
Memory Speed: 5600MT/s, 4800MT/s
Memory Slots: 16 DIMM Slots
Power Supply: 1000W 1+1 Hot-swap 80-PLUS Titanium/Platinum
System Cooling: 4 PWM Hot-swap 80x56 mm fans, 1 PWM fixed 40x28 mm fan
Form Factor: 2U Rackmount
Height: 3.4"
Width: 22.8"
Depth: 17.2"
