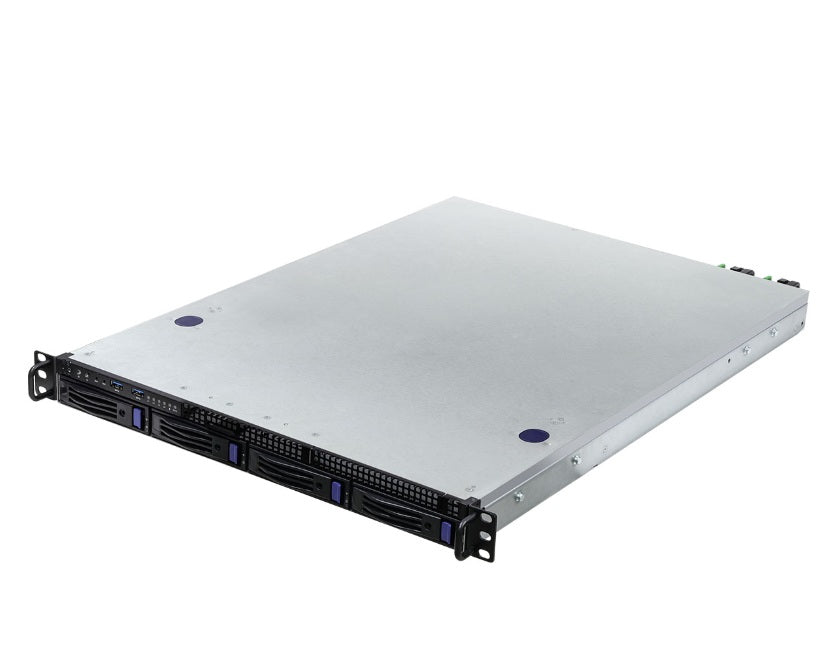

The ASRock Rack 1U2FH-4L/C622 is a compact 1U rackmount server barebone built on the Intel C622 chipset, optimized for data centers and high-density enterprise environments. It features a dual-socket design supporting 1st and 2nd Gen Intel Xeon Scalable Processors (LGA 3647).
Specifications
Model Number: 1U2FH-4L/C622
Brand: ASRock
Alt Part Number(s): 1U2FH-4L/C622
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U2FH-4L/C622
Processor Type: Intel Xeon Scalable Processors
Processor Core: 48-Core/ 96-Thread
Processor Power: 205W
Processor Socket: Dual Socket P (LGA3647)
Motherboard: EP2C622D16NM
Chipset: Intel C622
Graphics Controller: ASPEED AST2500
Networking: 1 × 1 GbE RJ‑45
VRAM: DDR4 16MB
Number of Drive Bays: 4 hot-swap 3.5" SATA drive bays, 2 fixed 2.5" SATA drive bays
Rear Expansion Slots: 2 FH PCIe3.0 x16
Memory Supported: 2TB
Memory Technology: DDR4 SDRAM
Memory Speed: DDR4 2933/2666/2400/2133 RDIMM/LRDIMM
Memory Slots: 16-DIMM slots
Memory Channels: 6-Channels
Cooling: 6 PWM hot-swap 40 x 56 mm fans
Power Supply: 1+1 Redundant PSU 750W 80-PLUS Platinum
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 43.3"
