Description

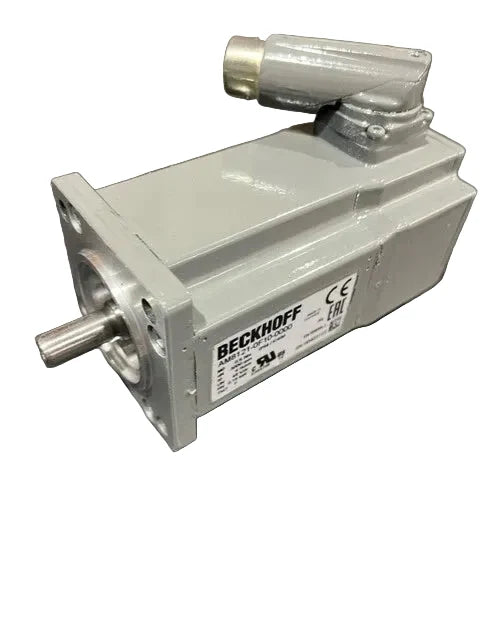

The Beckhoff AM8121-0F10-0000 servomotor is a compact AC synchronous motor designed for precise motion control in low-voltage drive systems. It operates at 48 VDC with a rated speed of 3000 RPM and delivers consistent torque for dynamic positioning tasks. This motor is suited for industrial automation applications requiring smooth shaft operation without a holding brake.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Motion Control |
| Part Number |
AM8121-0F10-0000 |
| Subcategory |
Servo Motors |
| Motor Type |
AC Synchronous Servomotor |
| Rated Voltage |
< 50 V DC |
| Rated Speed |
3000 r/min |
| Rated Power |
0.16 kW |
| Rated Torque |
0.5 Nm |
| Standstill Current |
4.0 A |
| Feedback System |
OCT Single-Turn Absolute Encoder (18-bit) |
| Flange Size |
F2 (58 mm) |
| Shaft Type |
Smooth Shaft |
| Shaft Diameter |
20 mm |
| Protection Rating |
IP54 / IC400 |
| Holding Brake |
Not Included |
| Safety Rating |
SIL 3 |
| Certifications |
UL, CE, cUL |
| Surface Temperature |
Up to 100 °C |
| Weight |
1.8 lbs |
Information About AM8121-0F10-0000
The AM8121-0F10-0000 is part of Beckhoff’s AM8000 series of synchronous servomotors, engineered for high performance in compact form factors. It features a flange size of 58 mm and a smooth shaft design, making it suitable for space-constrained installations. The motor uses a single-turn OCT feedback system with an 18-bit absolute encoder for precise position feedback. Designed for use with Beckhoff servo drives, it supports safety-rated applications up to SIL 3 and complies with relevant industrial standards.
Key Features:
- AC Synchronous Motor Design: Provides precise and efficient motion control for automation systems.
- Low-Voltage Operation: Designed for <50 V DC drive systems.
- Compact Motor Construction: Short motor length with 58 mm flange size for tight installations.
- High-Speed Performance: Rated speed of 3000 r/min for dynamic motion profiles.
- Single-Turn Absolute Feedback: OCT encoder with 18-bit resolution for accurate positioning.
- Smooth Shaft Configuration: Designed without a holding brake for continuous motion applications.
- Industrial Safety Compliance: Certified up to SIL 3 and compliant with EC Machinery Directive.
The AM8121-0F10-0000 delivers the reliability and precision required for compact servo-driven industrial motion control applications.
