Description

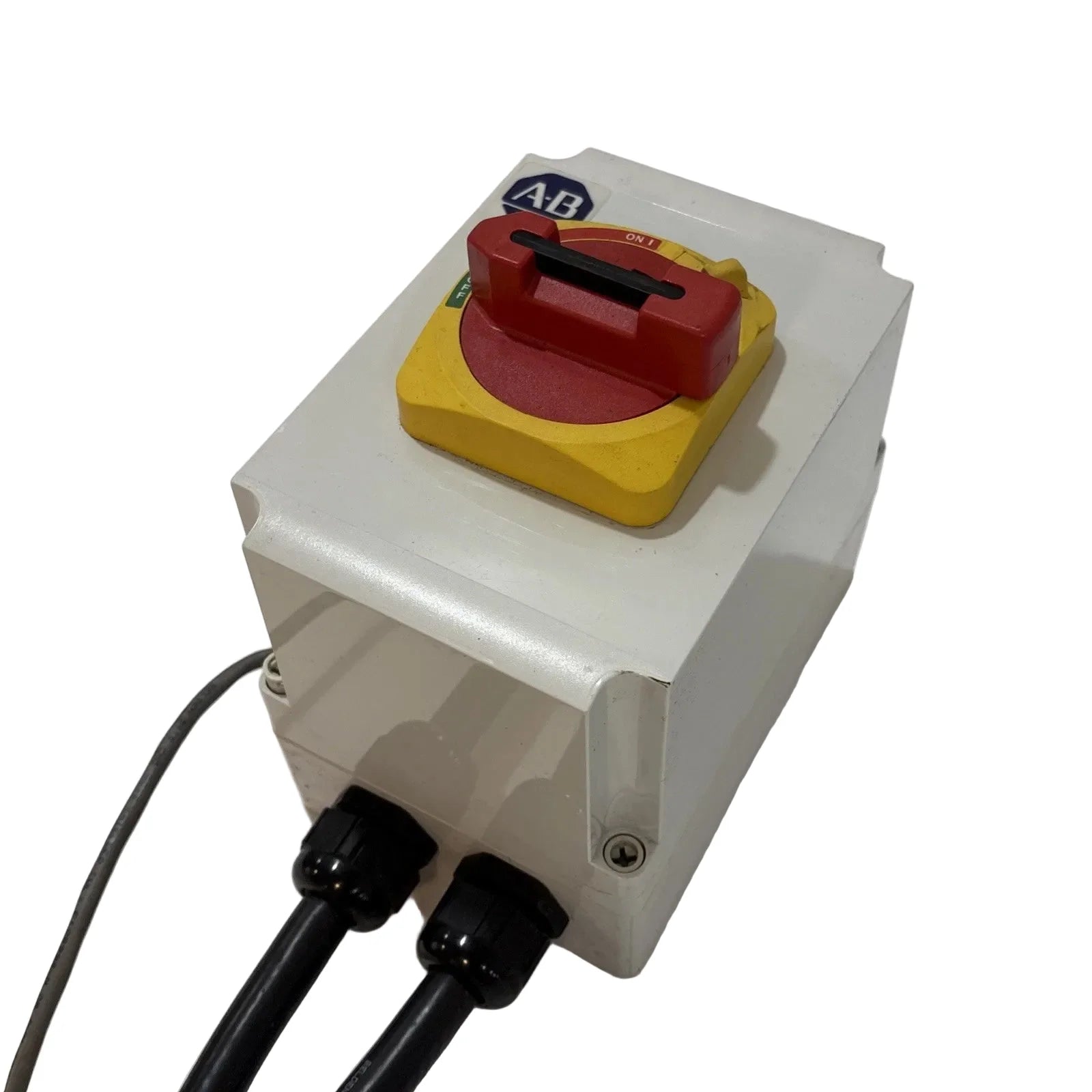

The Allen-Bradley 194E-KA32E-PD10-PE load switch is a compact industrial disconnect switch designed for reliable motor isolation and power switching applications. Manufactured by Rockwell Automation, this 32A IEC load switch features a durable non-metallic enclosure, IP66 environmental protection, and a red/yellow rotary handle for safe operation. The 194E-KA32E-PD10-PE is engineered for demanding industrial environments requiring dependable disconnect and isolation control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Industrial Automation |
| Part Number |
194E-KA32E-PD10-PE |
| Subcategory |
Load Switches |
| Product Type |
IEC Load Disconnect Switch |
| Series |
Bulletin 194E |
| Rated Current |
32 A |
| Number of Poles |
3 Pole |
| Switch Configuration |
OFF-ON 90° |
| Mounting Type |
Base Mount / DIN Rail |
| Enclosure Material |
Non-Metallic |
| Enclosure Rating |
UL Type 3/4/4X |
| IP Rating |
IP66 |
| Handle Color |
Red / Yellow |
| Auxiliary Contact |
1 NO Early-Break Contact |
| Additional Feature |
Grounding Pole |
| Operating Voltage |
Up to 690 V AC |
| Thermal Current Rating |
50 A Ith |
| Continuous Current UL/CSA |
32 A |
| Padlock Capability |
Up to 3 Padlocks |
| Application |
Motor Isolation and Disconnect |
| Standards Compliance |
IEC 60947-1, IEC 60947-3, UL 508 |
| Certifications |
UL, CSA, CE |
| Operating Temperature |
-25 °C to +60 °C |
| Storage Temperature |
-40 °C to +80 °C |
| Weight |
1.36 kg |
Information About 194E-KA32E-PD10-PE
The 194E-KA32E-PD10-PE is part of the Allen-Bradley Bulletin 194E series of IEC load switches developed for industrial motor disconnect and local isolation applications. This enclosed disconnect switch incorporates a 3-pole switching configuration with one normally open early-break auxiliary contact and an integrated grounding pole for enhanced operational safety. Designed with a non-metallic UL Type 3/4/4X enclosure and IP66 protection rating, the switch offers excellent resistance against dust, moisture, and harsh industrial conditions. Its OFF-ON 90° rotary operation, padlock-capable handle system, and DIN rail/base mounting flexibility make it suitable for machine panels, automation systems, motor control centers, and industrial power distribution applications.
Key Features:
- 32 Amp Load Rating: Supports industrial switching applications up to 32A.
- IEC Load Switch Design: Engineered for motor isolation and disconnect operations.
- 3-Pole Configuration: Provides reliable three-pole power switching capability.
- Non-Metallic Enclosure: Durable corrosion-resistant enclosure for harsh environments.
- IP66 Protection Rating: Resistant to dust ingress and high-pressure water exposure.
- UL Type 3/4/4X Enclosure: Suitable for indoor and outdoor industrial installations.
- Red/Yellow Rotary Handle: High-visibility handle improves operator safety.
- OFF-ON 90° Operation: Simple and secure rotary switching mechanism.
- Integrated Grounding Pole: Additional grounding functionality for enhanced protection.
- Auxiliary Contact Included: Equipped with 1 NO early-break auxiliary contact.
- Base and DIN Rail Mounting: Flexible installation options for control panels.
- Padlockable Handle Design: Supports lockout/tagout safety procedures.
The 194E-KA32E-PD10-PE delivers the reliability and precision required for industrial disconnect switching, motor isolation, and power distribution control systems.
