Description

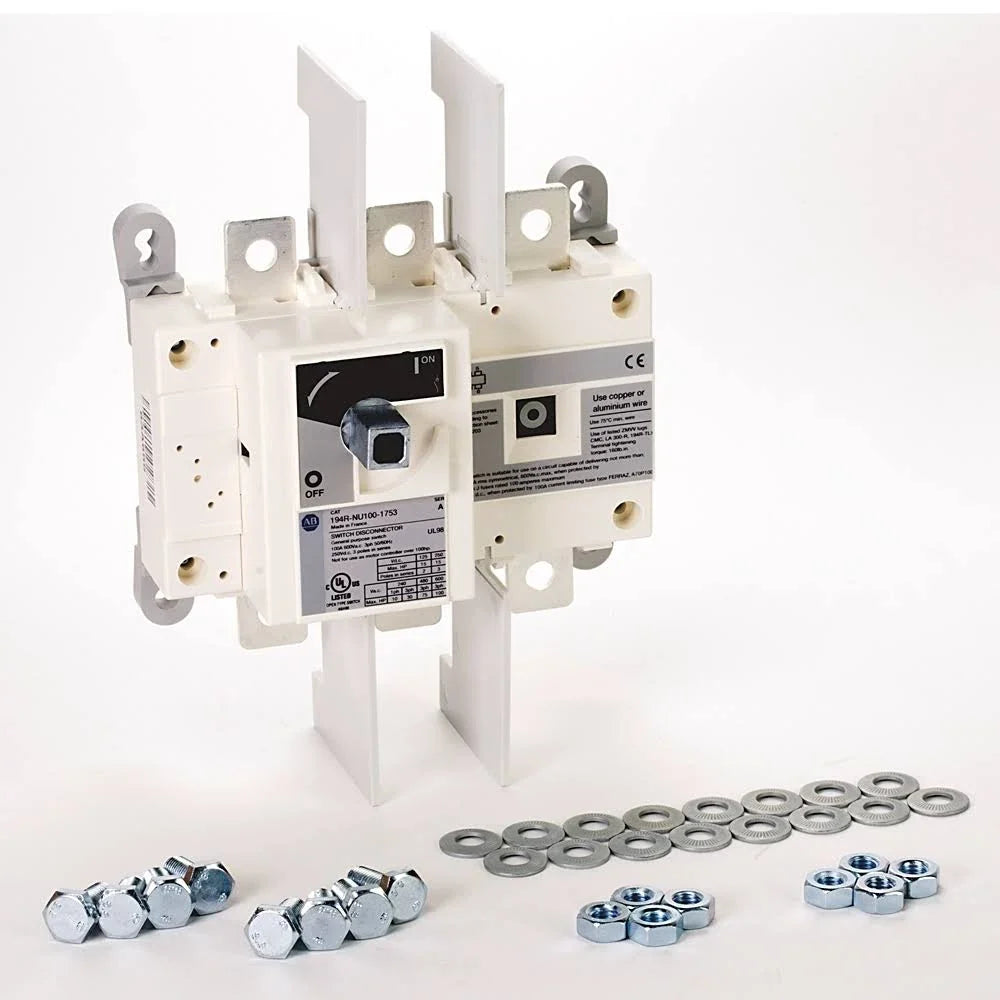

The Allen-Bradley 194R-NU100-1753 is a robust non-fused disconnect switch designed for high-capacity load switching and circuit isolation in industrial applications. With a 100A rating, it offers reliable performance for power control and maintenance safety.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194R-NU100-1753
|
| Subcategory |
Disconnect Switch |
| Series |
Bulletin 194R |
| Amperage Rating |
100 Amp |
| Voltage Rating |
600 VAC |
| Number of Poles |
3 Pole |
| Contact Configuration |
Non-Fused |
| Terminal Type |
Screw |
| Mounting Type |
Panel Mountable |
| Enclosure Type |
Open Type |
| Standards Compliance |
KC |
| Weight |
5.2400 lb |
Information About 194R-NU100-1753
The 194R-NU100-1753 is part of Allen-Bradley’s Bulletin 194R line of non-fused disconnect switches, engineered to handle demanding industrial environments. It features a 100A contact rating at 600 VAC, ensuring safe and reliable disconnection of circuits during maintenance or emergency shutdowns. This model is designed with 3 poles, making it ideal for three-phase systems commonly found in industrial power distribution.
Key Features:
- High Current Rating: Capable of safely interrupting loads up to 100A at 600 VAC.
- Three-Pole Design: Supports disconnection of three-phase circuits.
- Non-Fused Configuration: Simplifies design for systems where fusing is handled upstream.
- Screw-Type Terminals: Facilitates secure wiring and easy installation.
- Open-Type Enclosure: Allows for flexible mounting within existing control panels.
- Reliable Operation: Provides robust performance in industrial environments.
- Global Certification: Meets KC standard, ensuring compliance for international installations.
- Bulletin 194R Series: Integrates seamlessly with other Allen-Bradley products in the same family.
- Panel Mountable: Can be easily integrated into standard industrial enclosures.
- Compact Footprint: Saves valuable panel space without sacrificing performance.
The 194R-NU100-1753 offers reliable load switching and safety disconnection in industrial power systems.
