Description

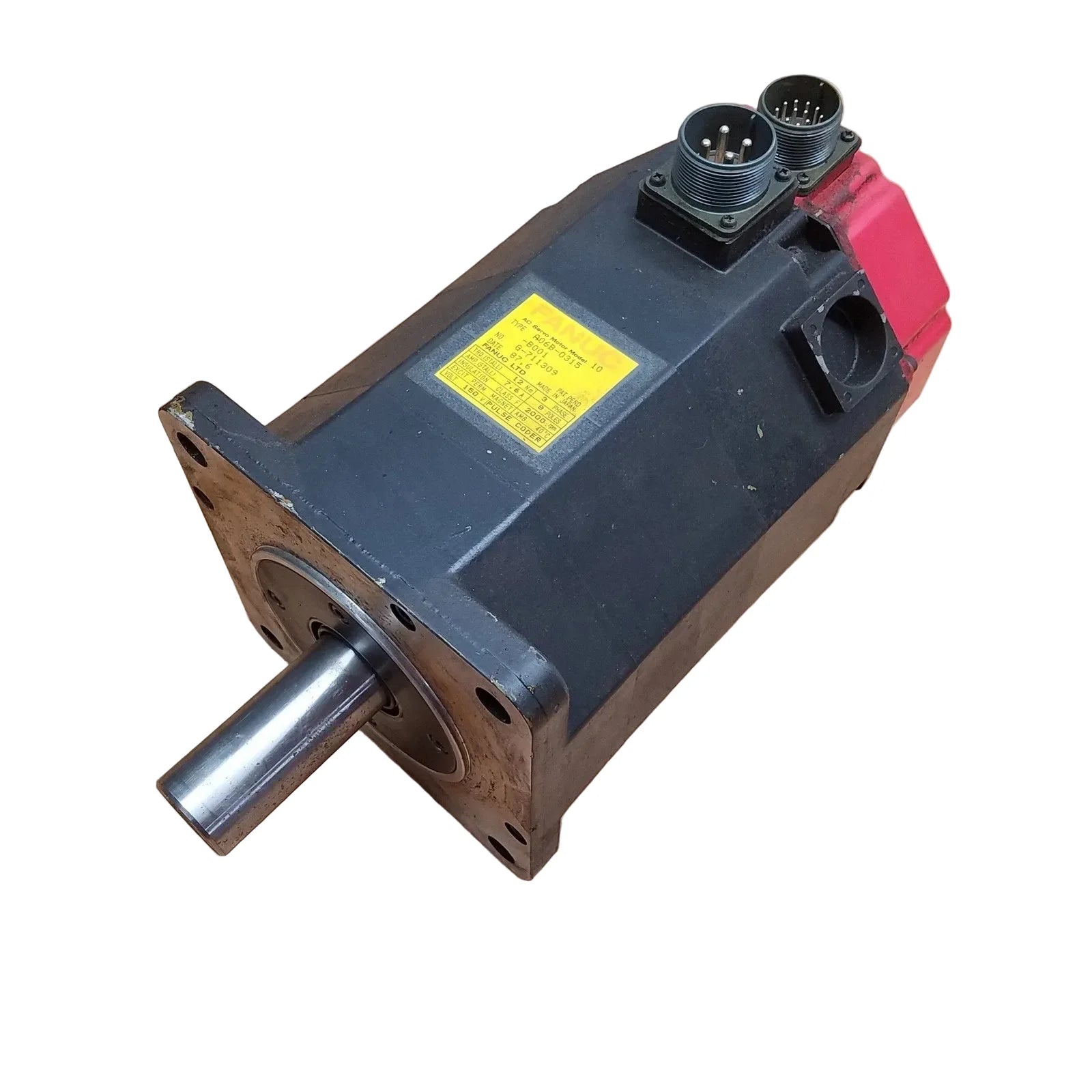

The Fanuc A06B-0315-B001 is a 3-phase AC servo motor designed for CNC and industrial motion control applications. Rated at 1.5 kW with a maximum speed of 2000 RPM, it provides stable torque output and reliable operational performance. Its flange mounting configuration and keyed shaft enable secure mechanical integration into machine assemblies.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fanuc |
| Category |
Servo Products |
| Part Number |
A06B-0315-B001 |
| Subcategory |
Servo Motor |
| Motor Type |
AC Servo Motor |
| Model |
10S |
| Power Rating |
1.5 kW |
| Rated Voltage |
200–230 VAC |
| Rated Current |
7.6 A |
| Rated Speed |
2000 RPM |
| Phase |
3-Phase |
| Frequency |
50/60 Hz |
| Insulation Class |
Class F |
| Protection Rating |
IP54 |
| Cooling Type |
Self-Ventilated |
| Mounting Type |
Flange Mount |
| Shaft Type |
Keyed Shaft |
| Weight |
42.00 lbs |
Information About A06B-0315-B001
The A06B-0315-B001 is part of the Fanuc A06B servo motor series and corresponds to the Model 10S configuration. It operates on a 200–230 VAC supply and delivers consistent current performance at 7.6 A under rated conditions. Built with Class F insulation and an IP54 protection rating, the motor is designed to withstand industrial environments while maintaining thermal and mechanical durability. The self-ventilated cooling design supports sustained operation in CNC machine tools and automated production systems.
Key Features:
-
1.5 kW Power Rating: Suitable for medium-duty servo applications.
-
2000 RPM Speed: Designed for controlled motion performance.
-
200–230 VAC Operation: Compatible with standard industrial power systems.
-
7.6 A Rated Current: Supports stable electrical load handling.
-
Class F Insulation: Rated for temperatures up to 155°C.
-
IP54 Protection: Resistant to dust ingress and limited moisture exposure.
-
Flange Mount Design: Enables secure installation in machinery.
-
Keyed Shaft Output: Provides reliable torque transmission.
The A06B-0315-B001 delivers the reliability and precision required for CNC servo motor drive applications.
