Description

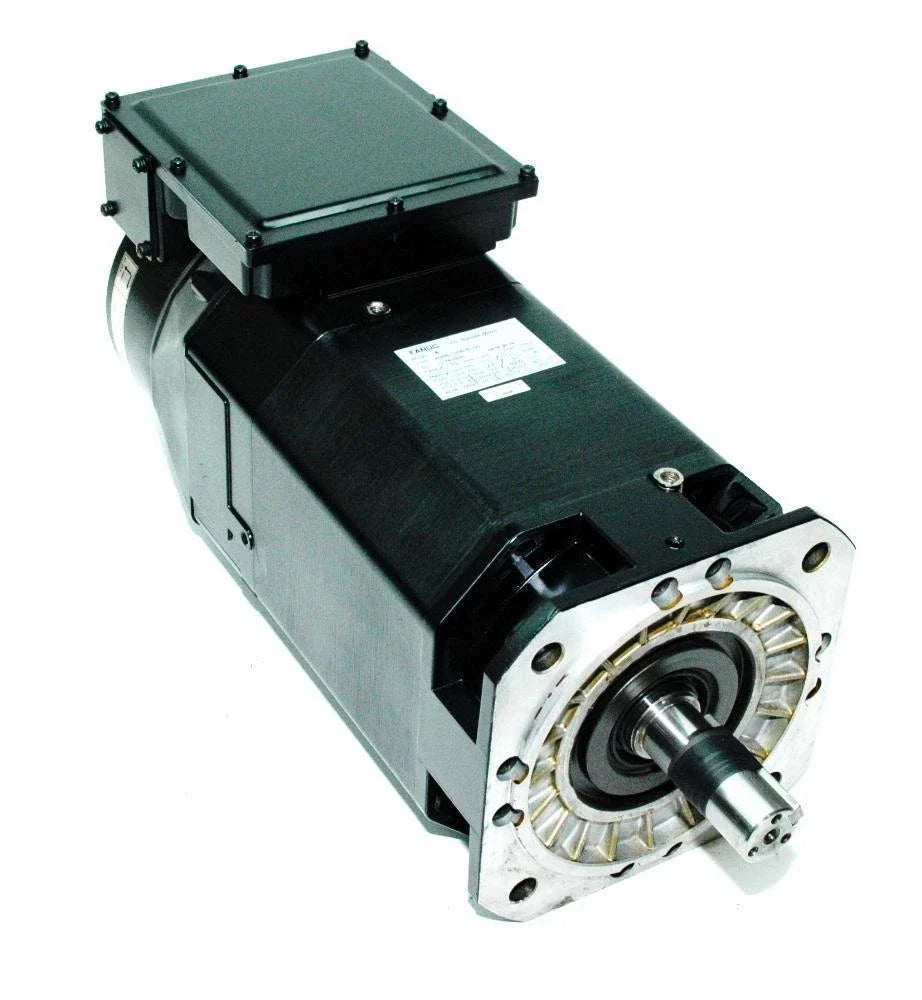

The Fanuc A06B‑1006‑B100 is a high-performance AC spindle motor (Model 6, flange‑mount) used in precision CNC machining.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fanuc |
| Category |
Servo Products |
| Part Number |
A06B-1006-B100 |
| Subcategory |
Servo Motor |
| Type |
AC Motor |
| Range |
A06B |
| Design |
Flange Mount |
| Application |
CNC / Spindle Motor |
| Performance |
High-Speed CNC Operation |
| Poles |
4 Poles |
| Phase |
3 Phase |
| Voltage Rating |
200 VAC |
| Speed Range |
1500 / 6000 RPM |
| Power Output |
7.5 kW |
| Current Rating |
22 A (continuous) / 31 A (peak) |
| Insulation Class |
F |
| Dimensions |
22" x 8" x 10" |
| Mounting |
Flange Type |
| Cooling |
Rear Exhaust Fan |
| Weight |
155.00 lbs |
Information About A06B-1006-B100
The A06B-1006-B100 is a high-performance Fanuc AC spindle motor, Model 6, designed for precision CNC machining applications. Featuring a flange-mounted design, it provides a wide speed range of 1500 to 6000 RPM and delivers up to 7.5 kW of power with excellent torque stability. Operating on 200 VAC 3-phase power, this motor integrates seamlessly with Fanuc analog spindle drive systems and supports high-speed, high-accuracy machining. Built for robust industrial use, it includes a rear exhaust fan for thermal management and comes equipped with standard spindle feedback for closed-loop control.
Key Features:
- Flange-Mounted Construction: Provides secure, precise installation and optimal alignment for CNC machine tools.
- High-Speed, High-Torque Performance: Delivers 5.5 kW continuous and up to 7.5 kW peak power for demanding operations like milling, drilling, and grinding.
- Wide Speed Range: Operates from 1500 to 6000 RPM, supporting a variety of cutting speeds and machining strategies.
- 3-Phase AC Power Input: Runs on 200 VAC, delivering smooth and efficient power to the spindle across all load conditions.
- Current Rating: Rated for 22 A continuous and 31 A peak, ensuring robust acceleration and cutting force during operation.
- Built-In Spindle Feedback: Ensures reliable position and speed control in closed-loop CNC systems using Fanuc analog interfaces.
- Compact Industrial Design: Measures 22" x 8" x 10", offering compact power density for integration into vertical and horizontal machining centers.
The Fanuc A06B-1006-B100 spindle motor remains a proven solution for high-precision CNC systems, offering excellent speed control, long-lasting reliability, and seamless integration into Fanuc-driven machining platforms. Whether for OEM applications or retrofit upgrades, it provides the power and performance essential for modern manufacturing environments.
