Description

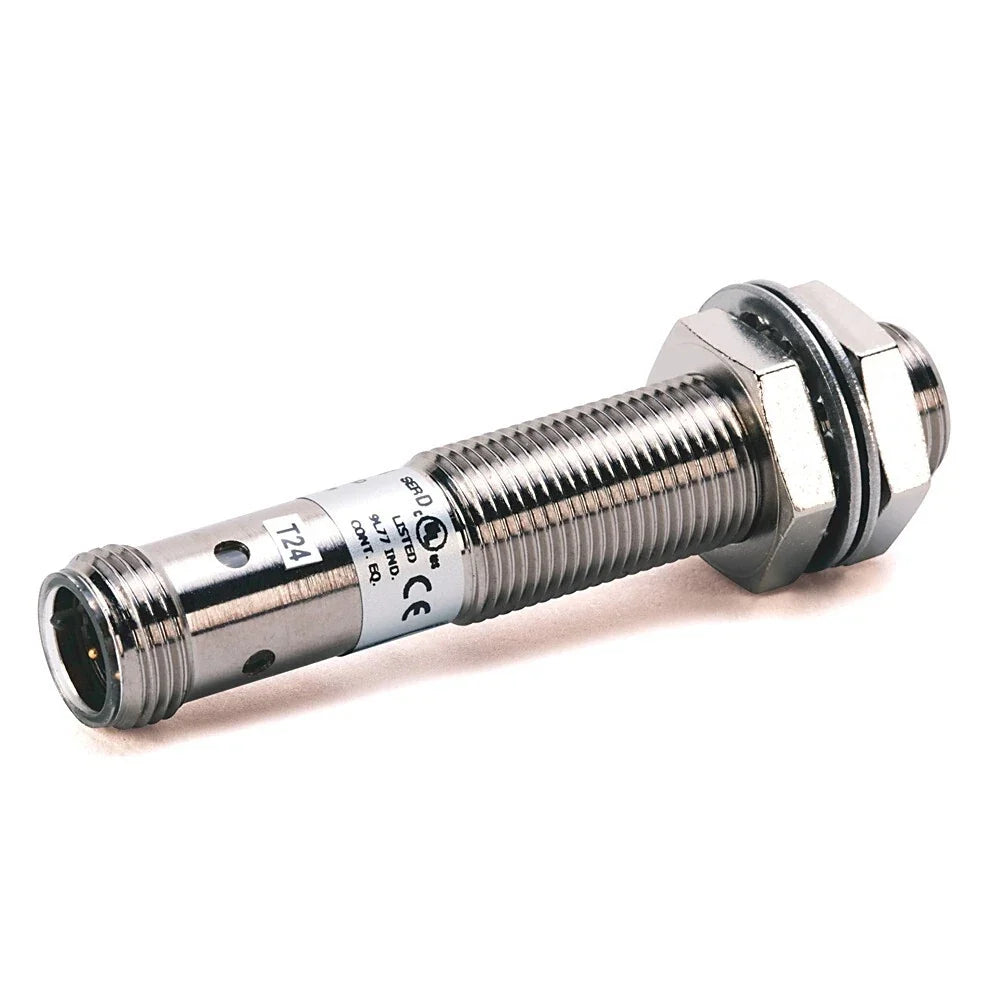

The Allen-Bradley 872C-M4NP12-D4 is a compact, cylindrical inductive proximity sensor designed for detecting metallic targets. With a 12 mm threaded barrel and a 4 mm sensing range, it offers reliable non-contact detection in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
872C-M4NP12-D4 |
| Subcatecory |
|
| Sensing Range |
4 mm |
| Output Type |
Normally Open (NO) |
| Operating Voltage |
Up to 30 V DC |
| Max Load Current |
200 mA |
| Operating Frequency |
900 Hz |
| Barrel Type |
Threaded, cylindrical |
| Barrel Diameter |
12 mm |
| Material |
Nickel Brass |
| Connection Type |
4-Pin DC Micro QD |
| Mounting |
Flush (shielded) |
| Weight |
0.0600 lb |
Information About 872C-M4NP12-D4
The 872C-M4NP12-D4 operates on DC voltage up to 30V and delivers a normally open output with a maximum load current of 200 mA, supporting fast switching with a 900 Hz operating frequency. Its shielded, screw-thread design allows for flush mounting and precise alignment in space-constrained applications. The sensor includes a 4-pin DC Micro QD connection for easy installation and replacement in field wiring. Constructed from nickel-plated brass, it meets global standards such as CE, UL, CCC, KC, and RCM for dependable sensing performance.
Key Features:
- Detection Type: inductive sensor for metallic target detection.
- Barrel Diameter: standard 12 mm threaded cylindrical housing for compact mounting.
- Sensing Distance: 4 mm sensing range with shielded, flush-mount capability.
- Switching Output: normally open (NO) configuration with 200 mA max load.
- High Switching Speed: operates at 900 Hz for rapid detection response.
- Voltage Rating: supports up to 30V DC operation.
- Connection Type: 4-pin DC Micro QD plug-in for fast installation and replacement.
- Rugged Design: nickel-plated brass body with resistance to industrial environments.
- Certifications: C-TICK, CE, UL, CCC, KC, RCM compliance ensures global suitability.
The 872C-M4NP12-D4 provides fast, reliable metallic object detection with high-frequency response and a compact threaded design for industrial sensor networks.
