Description

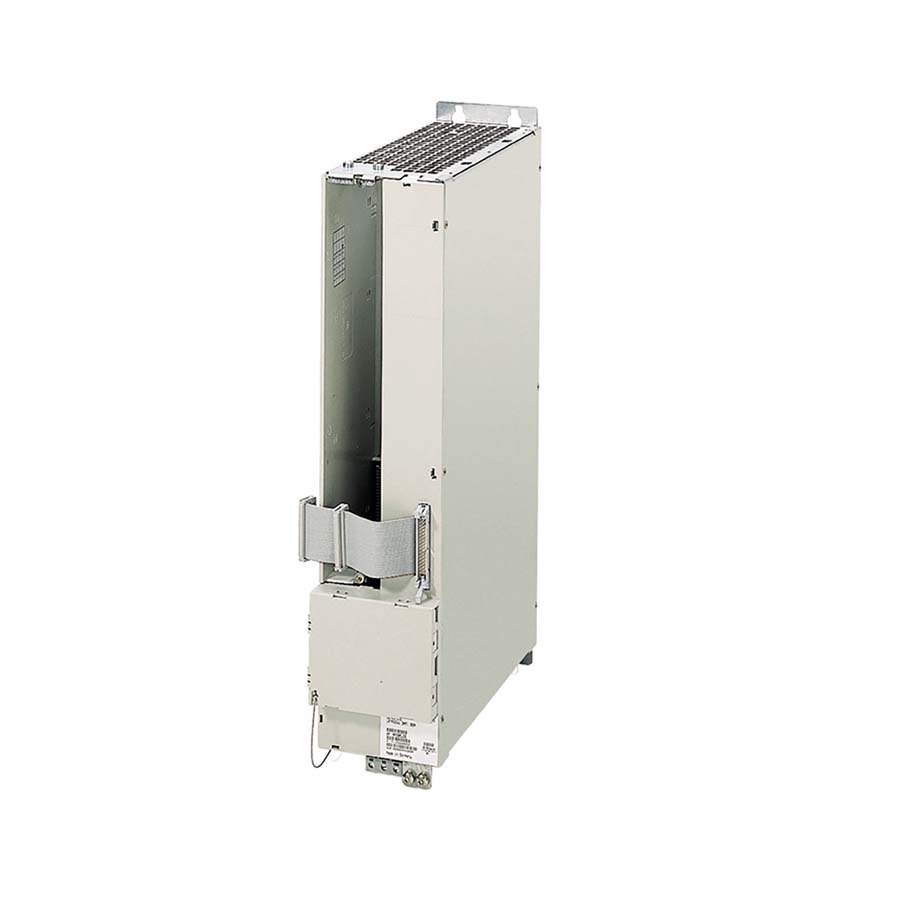

The Siemens 6SN1123-1AA00-0CA2 is a SIMODRIVE 611 power module designed for single-axis applications with internal cooling. It supports a rated feed current of 18A and a main spindle current of 24A, providing reliable performance in CNC systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Power Modules |
| Part Number |
6SN1123-1AA00-0CA2 |
| Subcategory |
SIMODRIVE Power Module |
| Series |
SIMODRIVE 611 |
| Product Type |
Power Module |
| Number of Axes |
1 Axis |
| Cooling Option |
Internal Cooling |
| Rated Feed Current |
18 Amps |
| Main Spindle Current |
24 Amps |
| Operating Temperature Range |
0 to 55 °C |
| Storage Temperature Range |
-25 to 55 °C |
| Recommended Altitude |
< 1000 m above sea level |
| CNC Applications |
Supported |
| Product Status |
Cancelled since 01/04/2015 |
| Shipping Weight |
12.35 lbs |
Information About 6SN1123-1AA00-0CA2
The 6SN1123-1AA00-0CA2 is a Siemens SIMODRIVE 611 power module engineered for single-axis control in CNC automation. Designed with internal cooling, it ensures efficient thermal management during demanding operations. With a rated feed current of 18A and a main spindle current of 24A, the module provides reliable support for motion and spindle drives in precision machining. Operationally, it is suitable for environments between 0 to 55 °C, with storage capabilities down to -25 °C. Though discontinued since January 2015, it remains a robust and widely used solution in legacy CNC systems.
Key Features:
- Single-Axis Design: Built specifically to control one axis in CNC applications, ensuring focused and efficient power delivery for motion or spindle drives.
- Rated Feed Current: Handles 18A continuous feed current, supporting stable axis operation during machining tasks.
- Main Spindle Capacity: Provides 24A for spindle current, delivering reliable performance for high-speed cutting and heavy-load applications.
- Internal Cooling System: Integrated cooling mechanism ensures efficient heat dissipation, reducing the risk of overheating and prolonging module lifespan.
- CNC Compatibility: Fully supports Siemens SIMODRIVE 611-based CNC environments, enabling precise and responsive control in automated systems.
- Environmental Durability: Operates reliably between 0 °C and 55 °C, with storage capability from -25 °C to 55 °C, making it adaptable to varied industrial conditions.
- Altitude Rating: Recommended for installation below 1000 meters to maintain efficiency and avoid derating issues.
- Rugged Siemens Construction: Built with durable industrial-grade components for long-term, high-demand use in machining centers.
- Lifecycle Information: Discontinued since 2015, but still widely used in legacy systems as a replacement or spare part.
- Solid Build: Weighing approximately 12.35 lbs, it reflects robust construction suitable for heavy-duty CNC installations.
The 6SN1123-1AA00-0CA2 delivers the reliability and precision required for demanding CNC drive systems, combining strong current capacity, efficient cooling, and durable Siemens engineering.
