Description
The Siemens 6ES7972-0BB41-0XA0 is a standard PROFIBUS bus connector designed for use in industrial automation networks, particularly with SIMATIC S7 systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens
|
| Category |
Components |
| Part Number |
6ES7972-0BB41-0XA0
|
| Subcategory |
Connector/Terminal/Pin |
|
Product
|
SIMATIC DP Bus Connector |
| Interface Type |
PROFIBUS |
| Max Data Rate |
Up to 12 Mbit/s |
| Cable Outlet |
Tilted (angled) |
| Dimensions (W x H x D) |
15.8 x 54 x 39.5 mm |
| Termination Resistor |
Integrated, switchable |
| Isolation Function |
Yes |
| PG/Diagnostic Socket |
Yes (with PG socket for programming/diagnostics) |
| Mounting |
Screw fastening |
| Operating Environment |
Industrial (DIN rail, SIMATIC S7, ET 200 systems) |
| Connector Design |
Sub-D 9-pin male |
| Protection |
Rugged plastic housing |
| Weight |
0.18 lbs |
Information About 6ES7972-0BB41-0XA0

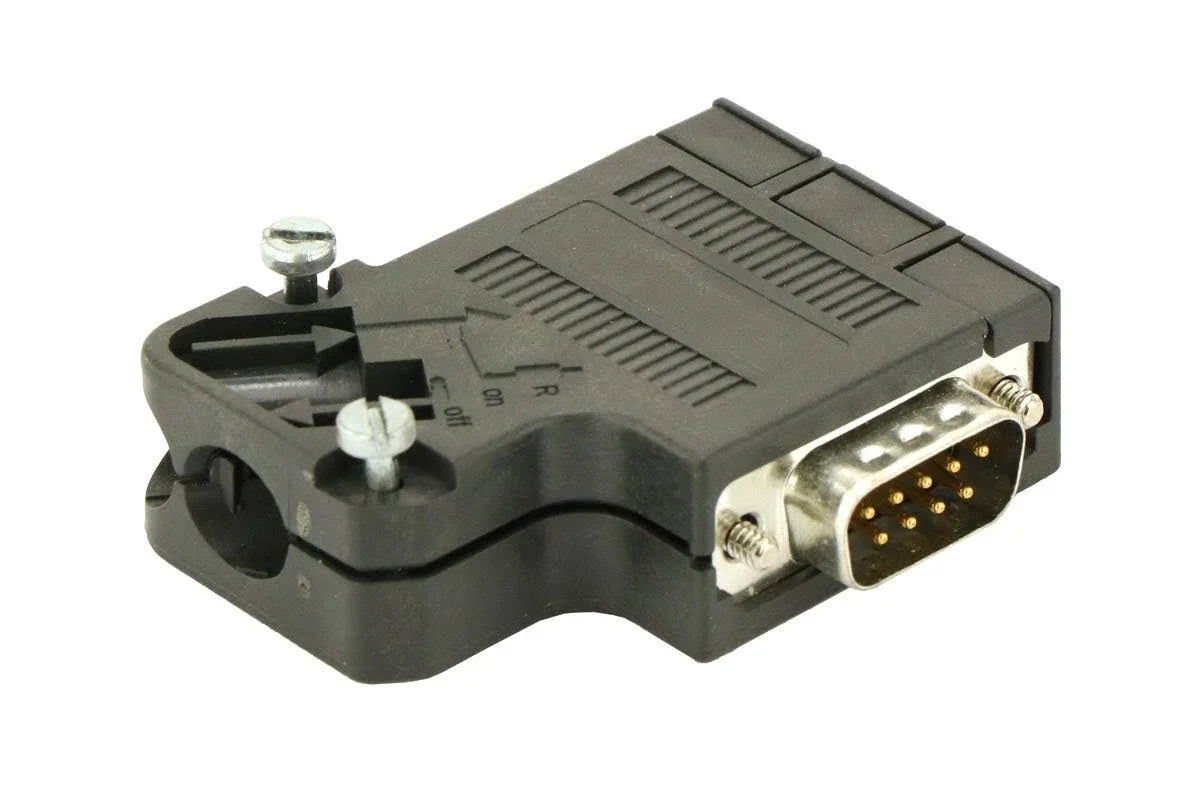

The Siemens 6ES7972-0BB41-0XA0 is a compact and robust PROFIBUS DP bus connector with a 90° cable outlet, designed for reliable communication in industrial automation systems such as the SIMATIC S7 series.
Key Features:
- Connector Type: PROFIBUS DP bus connector with 90° angled cable outlet
- PG/Diagnostic Port: Yes – integrated Sub-D 9-pin female socket for programming and diagnostics
- Termination Resistor: Integrated, switchable for proper line termination
- Baud Rate Support: Up to 12 Mbps
- Mounting: Screw-type fastening for secure and vibration-resistant installation
- Housing: Industrial-grade plastic housing with durable construction
- Electrical Isolation: Yes – ensures reliable signal integrity
- Dimensions: Approx. 15.8 × 54 × 39.5 mm
- Operating Temperature: –25 °C to +60 °C
- Compatibility: Designed for use with Siemens SIMATIC S7-300, ET 200M, and other PROFIBUS devices
Ideal for robust industrial environments, the 6ES7972-0BB41-0XA0 enables fast and easy PROFIBUS device connectivity with built-in diagnostics access. Its integrated termination and PG port make it particularly well-suited for maintenance and commissioning tasks in factory automation systems.
