Description

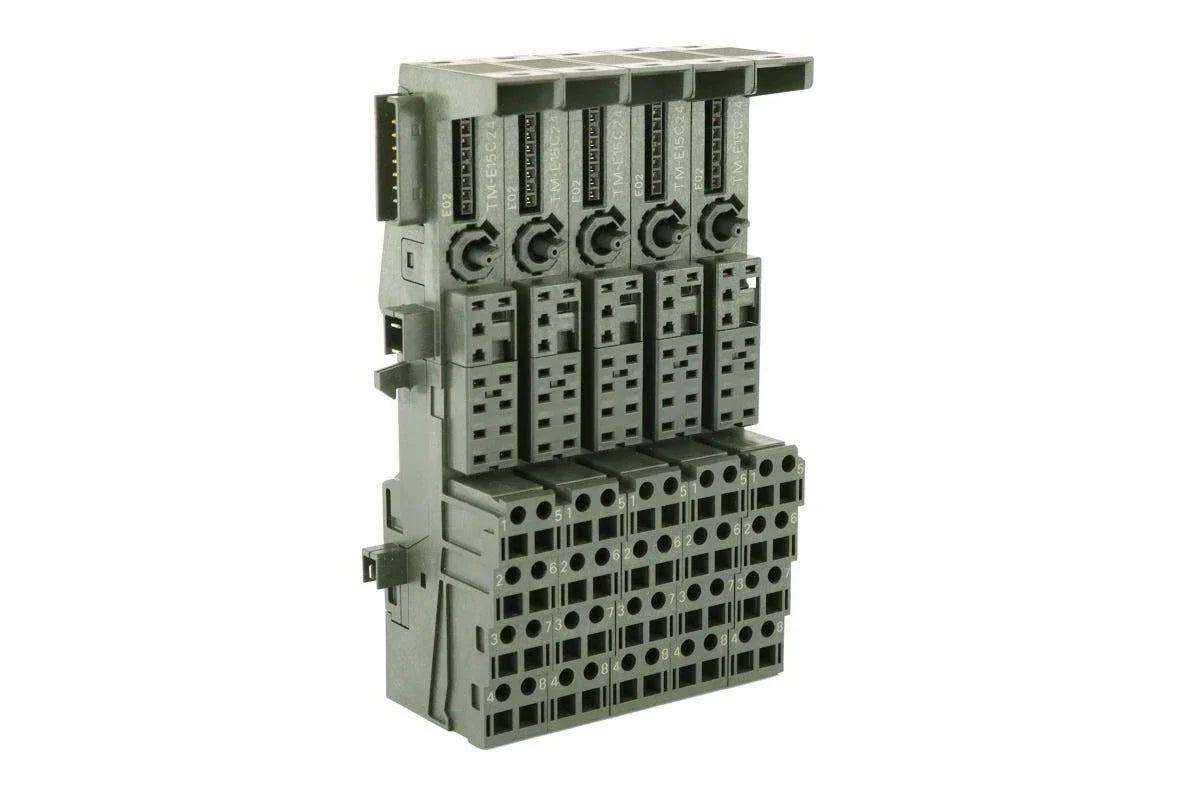

The 6ES7193-4CB30-0AA0 is a set of terminal modules from Siemens, designed for the SIMATIC DP ET 200S distributed I/O system. These spring-type terminals feature a compact design with 2 x 4 terminal connections and are intended for use with 15 mm wide electronic modules. The product is supplied in a pack of five and does not include terminal access to AUX1.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
|
| Part Number |
6ES7193-4CB30-0AA0
|
| Subcategory |
PLC Module/Rack |
| Terminal Type |
Spring-type terminals |
| Terminal Layout |
2 x 4 terminal connections |
| AUX1 Connectivity |
No terminal lead; inline continuity supported |
| Width |
15 mm |
| Packaging Unit |
5 modules per pack |
| Application |
Distributed I/O systems (SIMATIC DP) |
| Compatibility |
ET 200S electronic modules |
| Mounting |
DIN-rail compatible, snap-in |
| Weight |
0,319 Kg |
| Packaging Dimension |
15,90 x 18,00 x 5,20 |
| Package size unit of measure |
CM |
Information About 6ES7193-4CB30-0AA0
The 6ES7193-4CB30-0AA0 is part of Siemens’ SIMATIC DP series, specifically designed for ET 200S modular I/O systems. This terminal module pack includes five units of TM-E15C24-01 terminal blocks, each with a 15 mm width, optimized for mounting electronic modules within distributed control environments. Engineered with two spring-type terminal rows containing four connections each, these terminals ensure secure, maintenance-free wiring connections. Though they omit direct terminal lead access to AUX1, they maintain AUX1 continuity inline, enabling seamless integration into existing auxiliary circuits. These modules support quick installation, tool-free connection, and robust performance for field-level wiring.
Key Features:
- Product Series: Part of the Siemens SIMATIC DP ET 200S family, designed for modular automation applications.
- Spring-Type Terminal Technology: Provides fast, vibration-resistant wiring using push-in connection for 2 x 4 terminals per module.
- Module Compatibility: Suitable for use with 15 mm wide electronic modules in the ET 200S I/O platform.
- Terminal Layout: Each unit features 8 total terminals in two rows of four, streamlining field device integration.
- AUX1 Handling: No terminal lead connection to AUX1; AUX1 signal continues inline to downstream modules.
- Pack Quantity: Includes 5 identical terminal modules, ideal for multi-channel installations or spares.
- Compact Format: Slim profile conserves space in control cabinets and supports dense modular configurations.
- Tool-Free Installation: Spring clamp design facilitates fast wiring without the need for screwdrivers or ferrules.
The 6ES7193-4CB30-0AA0 terminal modules provide dependable connection and wiring convenience in ET 200S distributed systems, packaged in a set for efficient deployment in automation infrastructures.
