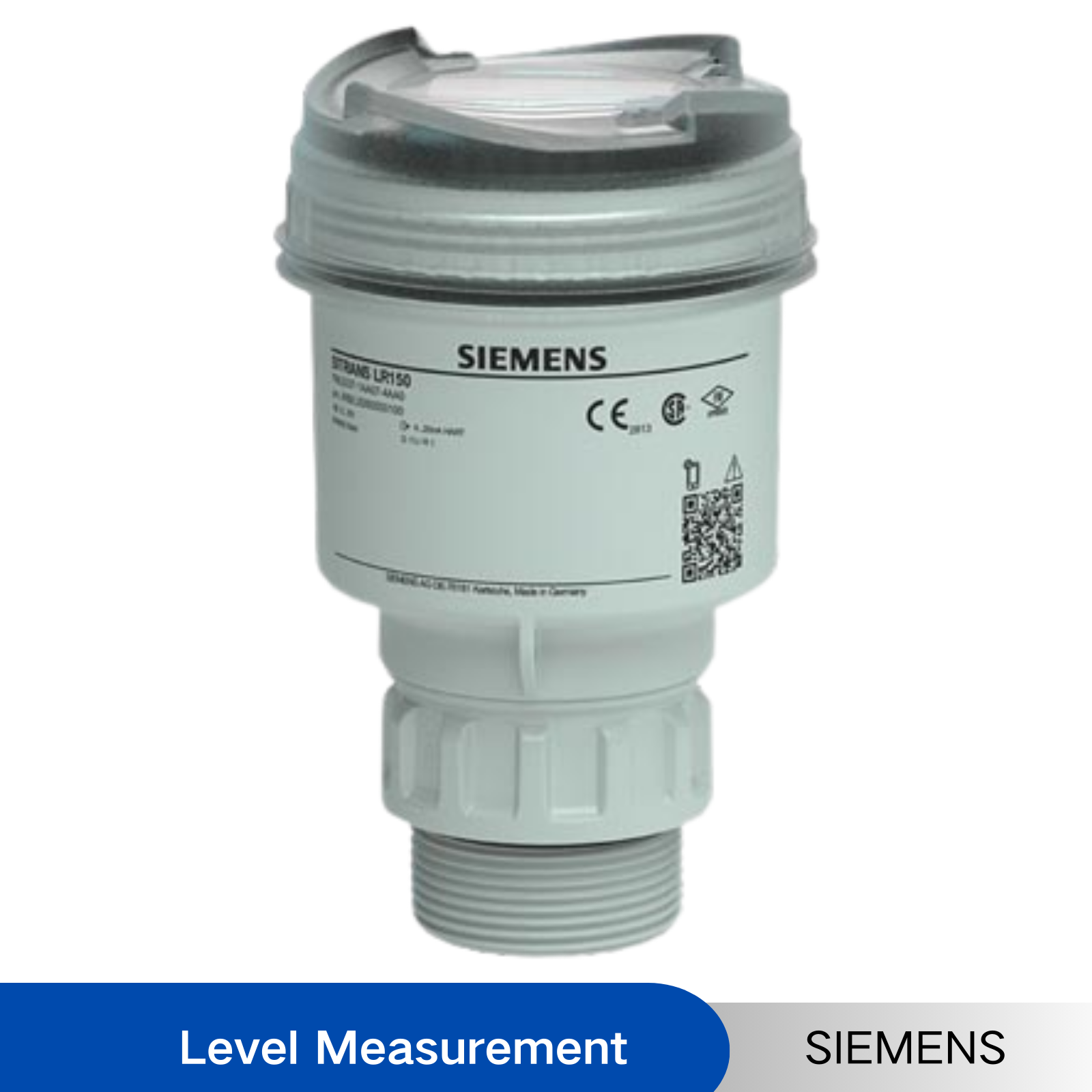

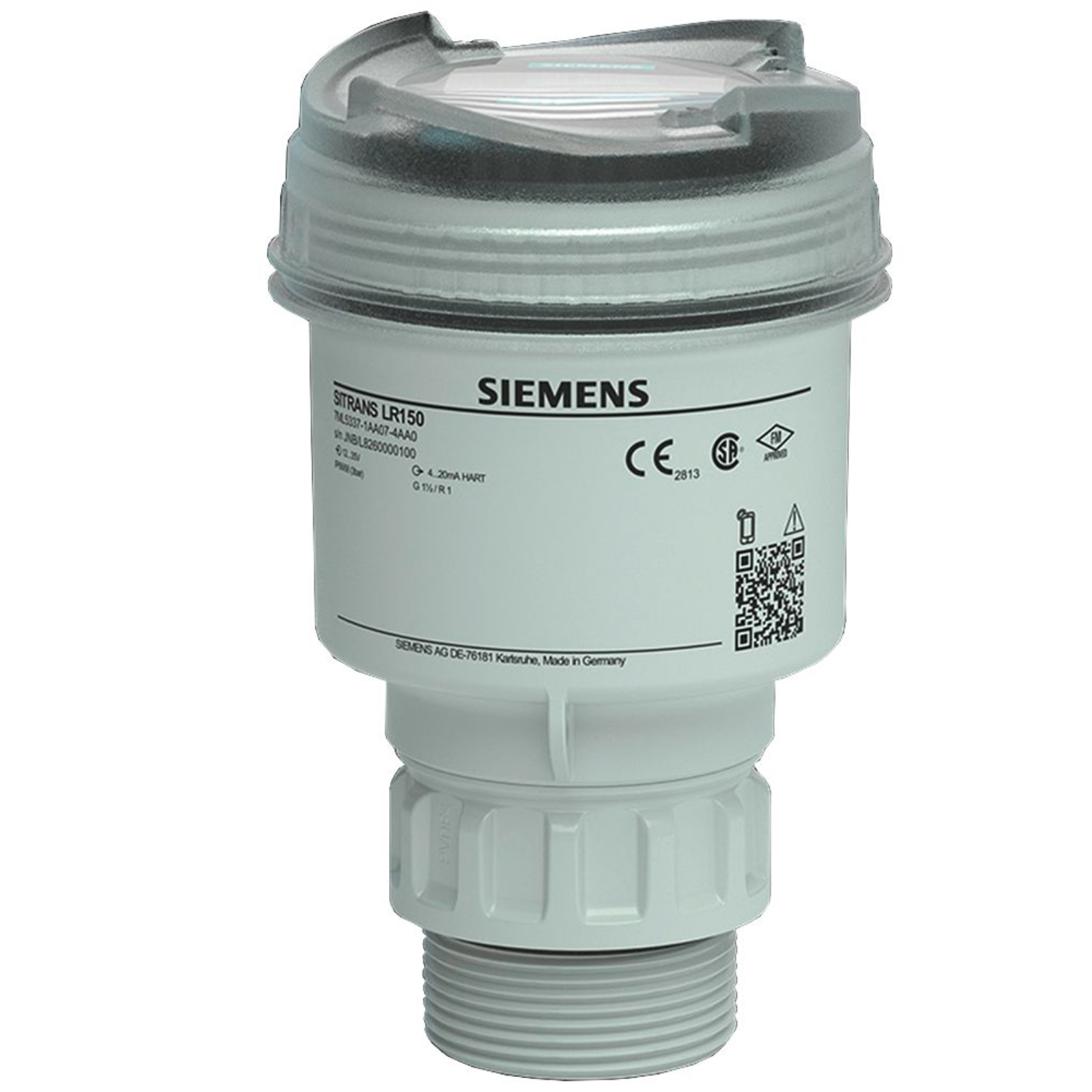

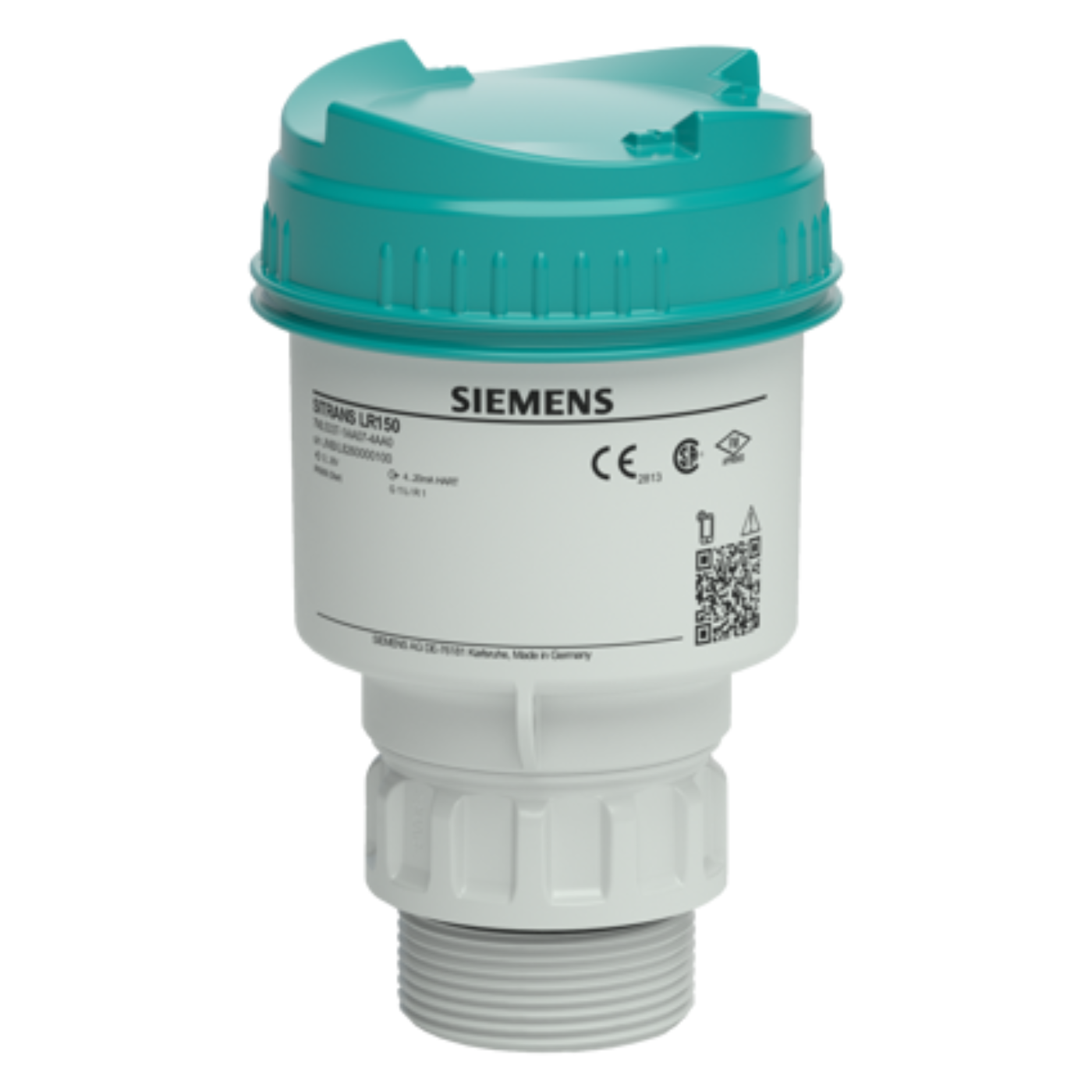

Genuine Siemens SITRANS LR150 (7ML5340) compact W-band FMCW radar level transmitter for continuous, non-contact level measurement of liquids, slurries, and solids up to 15 m.

Specifications

• Model: 7ML5340-0AA07-4AF3 (SITRANS LR150)
• Measuring Principle: W band FMCW radar
• Measuring Range: 0-15 m (0-49.2 ft)
• Frequency: 80 GHz nominal
• Accuracy: ±2 mm
• Power Supply: 12-35 V DC, 4-20 mA loop powered
• Communication: HART 7.0, Bluetooth (SITRANS mobile IQ)
• Sensor Material: PVDF (chemically resistant)
• Enclosure Material: PBT
• Process Connection: 1-1/2" NPT, BSPT, or BSPP
• Cable Inlet: M20 or 1/2" NPT
• Degree of Protection: IP66/IP67
• Ambient Temperature: -40°C to +70°C
• Process Temperature: -40°C to +80°C
• Vessel Pressure Rating: -1 to +3 bar
• Certifications: CE, UKCA, ATEX, UKEX, IECEx, cFMus, cCSAus, EAC, NEPSI, FDA

Ordering & Availability

This is a B2B wholesale listing. Contact us to request a formal quote (RFQ) with your required process connection, hazardous area certification, and quantity for a tailored price.
