Description

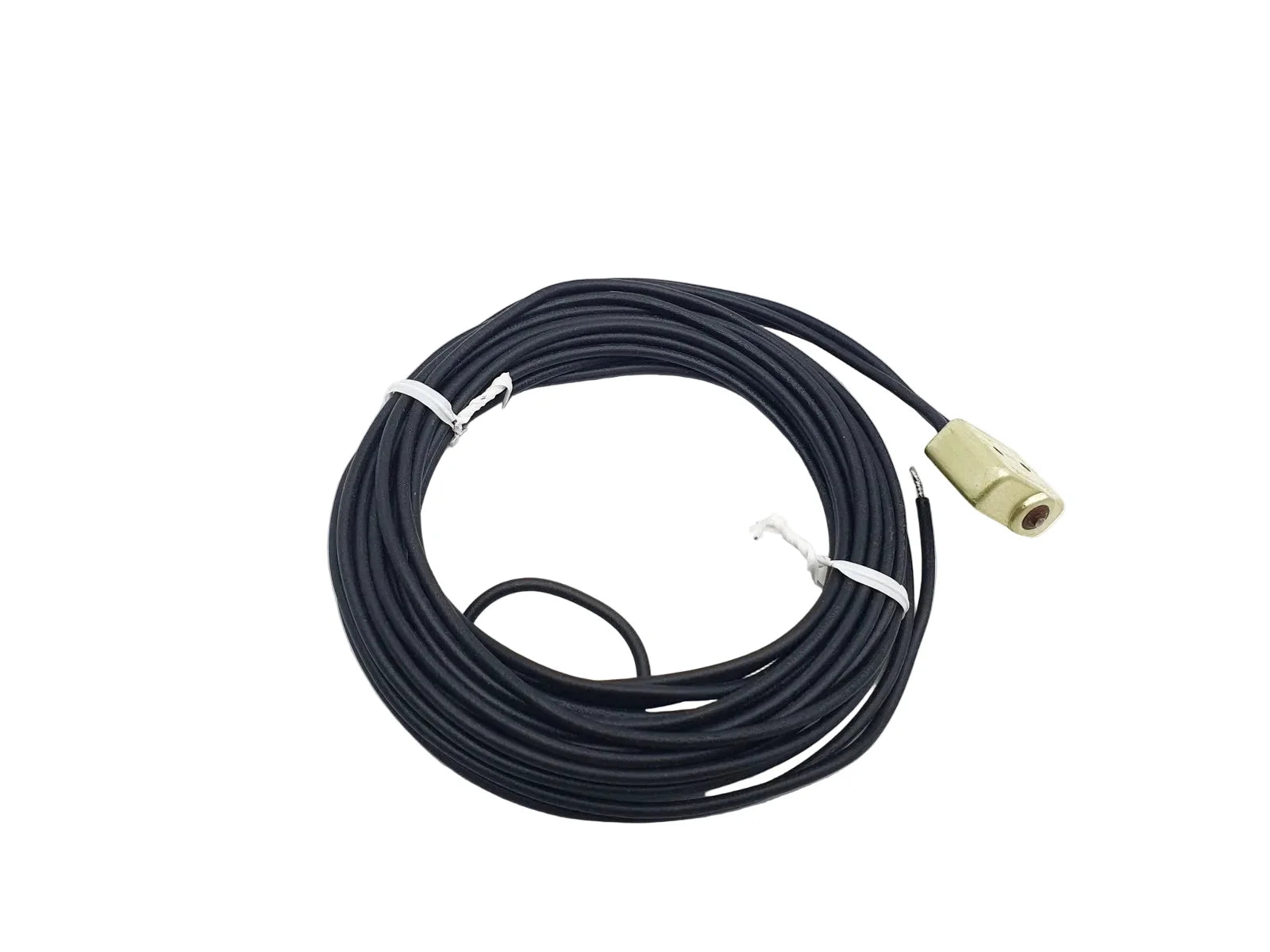

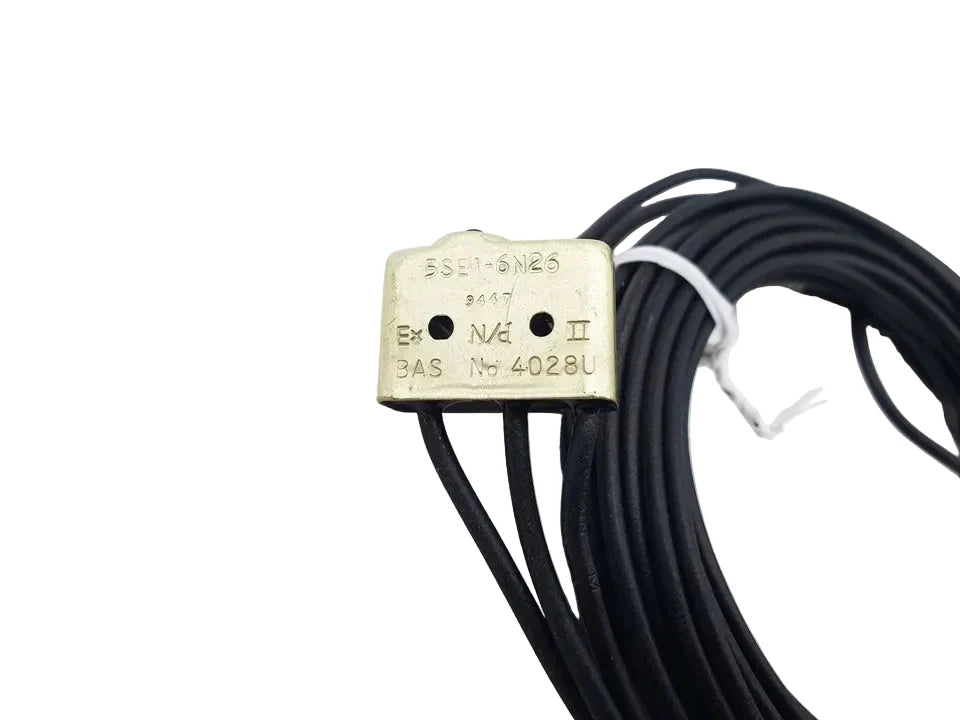

The Honeywell 5SE1-6N26 is a basic snap-action switch designed for precise momentary control in industrial and electromechanical systems. Featuring an SPDT contact configuration with a plunger actuator, it is rated at 5A up to 250 VAC or 30 VDC. Its compact chassis-mount design and quick connect terminals support reliable integration into control assemblies and machinery.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Electromechanical Components |
| Part Number |
5SE1-6N26 |
| Subcategory |
Snap Action Switches |
| Series |
LS Series |
| Contact Form |
SPDT |
| Switch Function |
ON - (OFF), OFF - (ON) |
| Current Rating |
5 A |
| Voltage Rating AC |
250 VAC |
| Voltage Rating DC |
30 VDC |
| Actuator Type |
Plunger |
| Operating Force |
0.5 N |
| Mounting Style |
Chassis Mount |
| Termination Style |
Quick Connect |
| Illumination |
Non-Illuminated |
| Operating Temperature Range |
-53°C to +105°C |
| Product Type |
Standard Snap Action Switch |
| Weight |
3.6 oz |
Information About 5SE1-6N26
The 5SE1-6N26 belongs to Honeywell’s LS Series standard snap-action switches, engineered for consistent performance in position sensing and control applications. It incorporates a single pole double throw (SPDT) contact arrangement with ON-(OFF) and OFF-(ON) momentary switching functions. The plunger actuator provides direct linear actuation with a low operating force of 0.5 N for sensitive response. Designed for chassis mounting with quick connect termination, it operates across a wide temperature range suitable for industrial environments.
Key Features:
- SPDT Contact Configuration: Provides both normally open and normally closed outputs.
- Momentary Switching Function: Supports ON-(OFF) and OFF-(ON) actuation modes.
- 5A at 250 VAC Rating: Suitable for industrial AC and DC control circuits.
- Plunger Actuator: Enables accurate linear mechanical engagement.
- Low Operating Force (0.5 N): Supports sensitive actuation requirements.
- Quick Connect Terminals: Allows efficient and secure wiring installation.
- Wide Temperature Range: Operates from -53°C to +105°C.
- Chassis Mount Design: Facilitates stable installation within equipment enclosures.
The 5SE1-6N26 delivers the reliability and precision required for industrial snap-action switching and position detection applications.
