Description

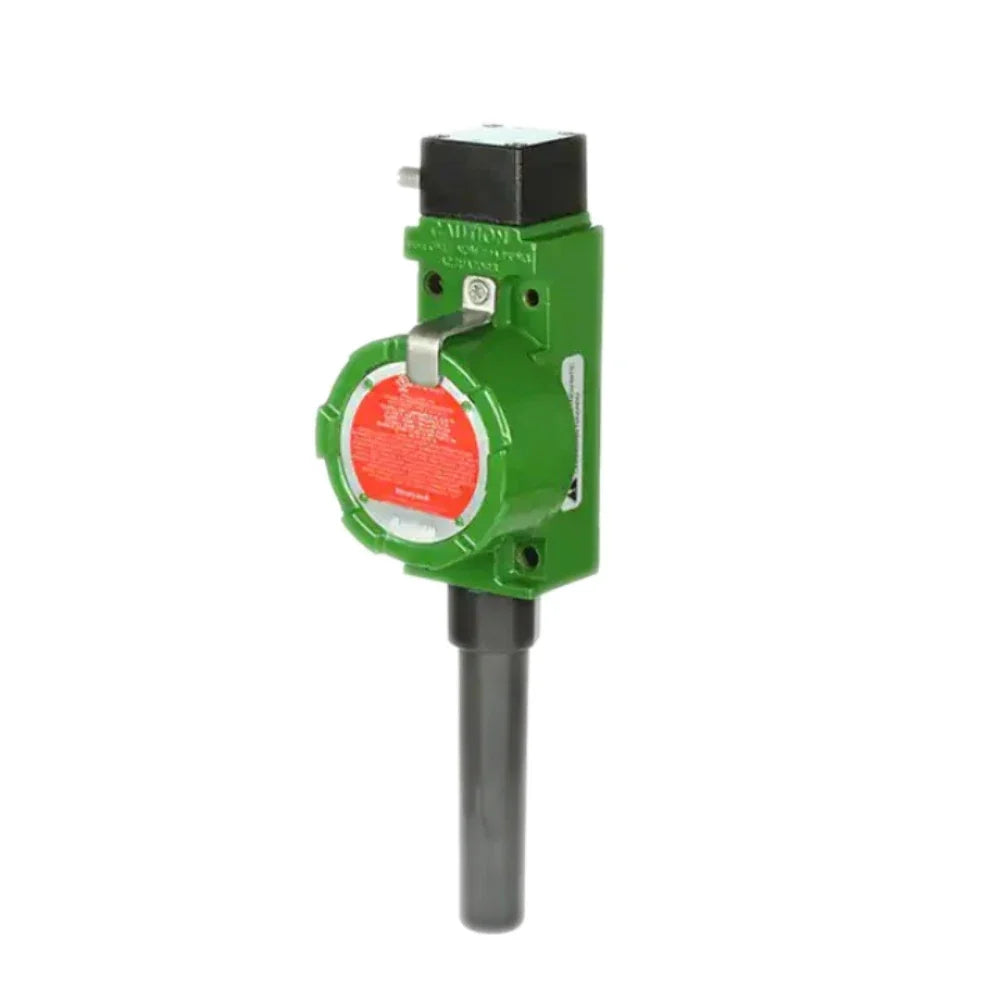

The Honeywell WBX1A00ABA3 is a wireless heavy-duty limit switch designed for industrial position sensing applications. It features a side rotary actuator and operates within a -40°C to +70°C temperature range. The unit integrates wireless communication capability for remote monitoring in automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WBX1A00ABA3 |
| Subcategory |
Limit Switch |
| Series |
Limitless™ WBX |
| Device Type |
Wireless Heavy-Duty Limit Switch |
| Actuator Type |
Side Rotary |
| Operating Force Max |
0.452 N·m |
| Mechanical Life |
1,000,000 Cycles |
| Mounting Type |
Screw Mount |
| Termination Style |
Connector |
| Operating Temperature |
-40°C to +70°C |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About WBX1A00ABA3
The WBX1A00ABA3 is part of the Honeywell Limitless™ WBX Series of wireless heavy-duty limit switches. It combines mechanical rotary actuation with point-to-point wireless communication for applications where hard wiring is impractical. The device uses a side rotary actuator with a maximum operating torque of 0.452 N·m and supports screw mounting installation. With a mechanical life rating of up to 1,000,000 cycles and connector termination, it is designed for demanding industrial environments.
Key Features:
-
Wireless Heavy-Duty Design: Integrates limit switch function with wireless capability.
-
Side Rotary Actuator: Designed for rotary motion detection.
-
Operating Torque 0.452 N·m: Suitable for mechanical actuation systems.
-
Wide Operating Temperature: -40°C to +70°C range.
-
Mechanical Life 1,000,000 Cycles: Built for extended service life.
-
Screw Mount Installation: Secure mounting method.
-
Connector Termination: Industrial connector interface.
-
RoHS Compliant: Meets environmental standards.
The WBX1A00ABA3 delivers the reliability and precision required for wireless position sensing in industrial automation systems.
