Description

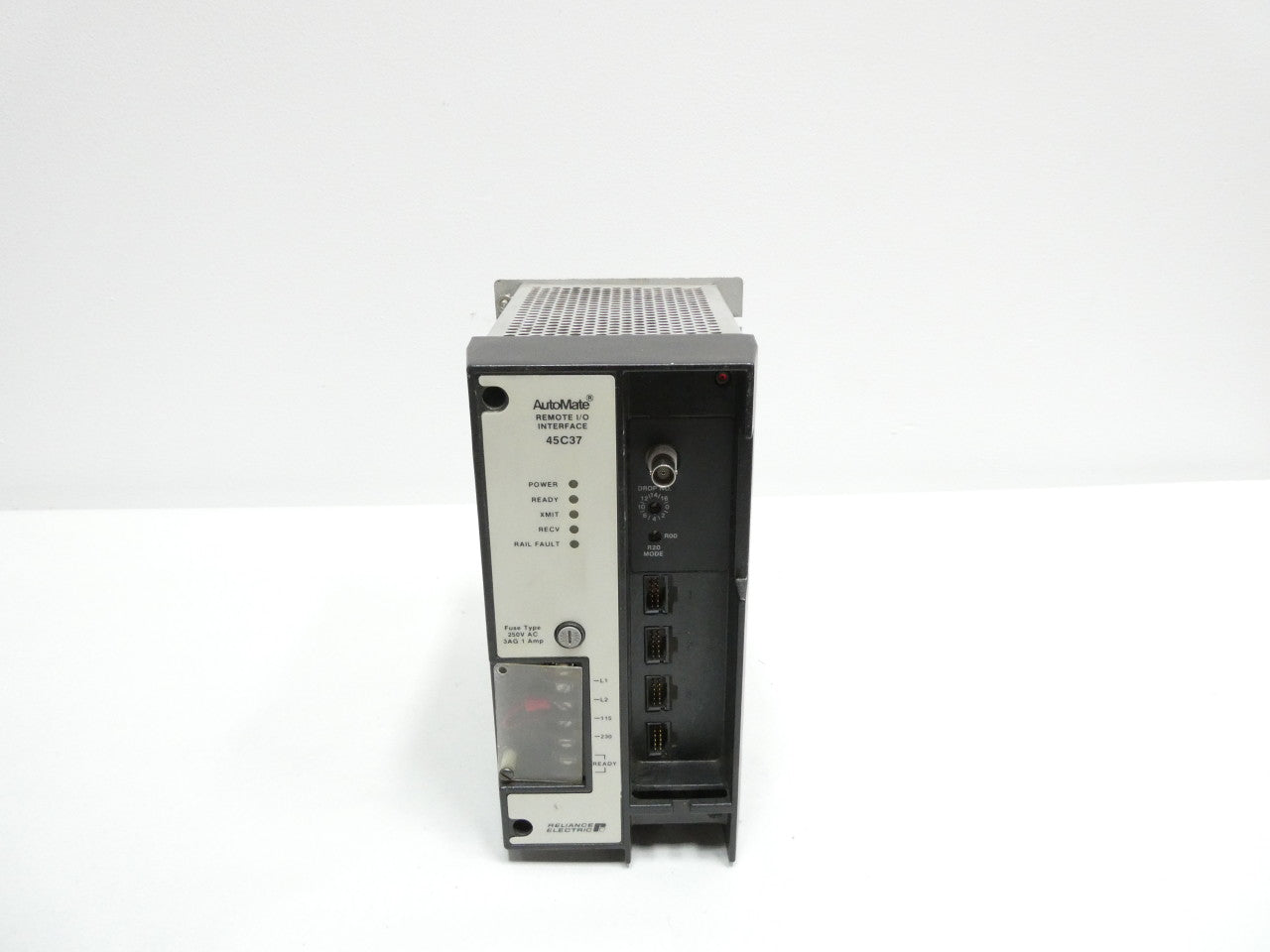

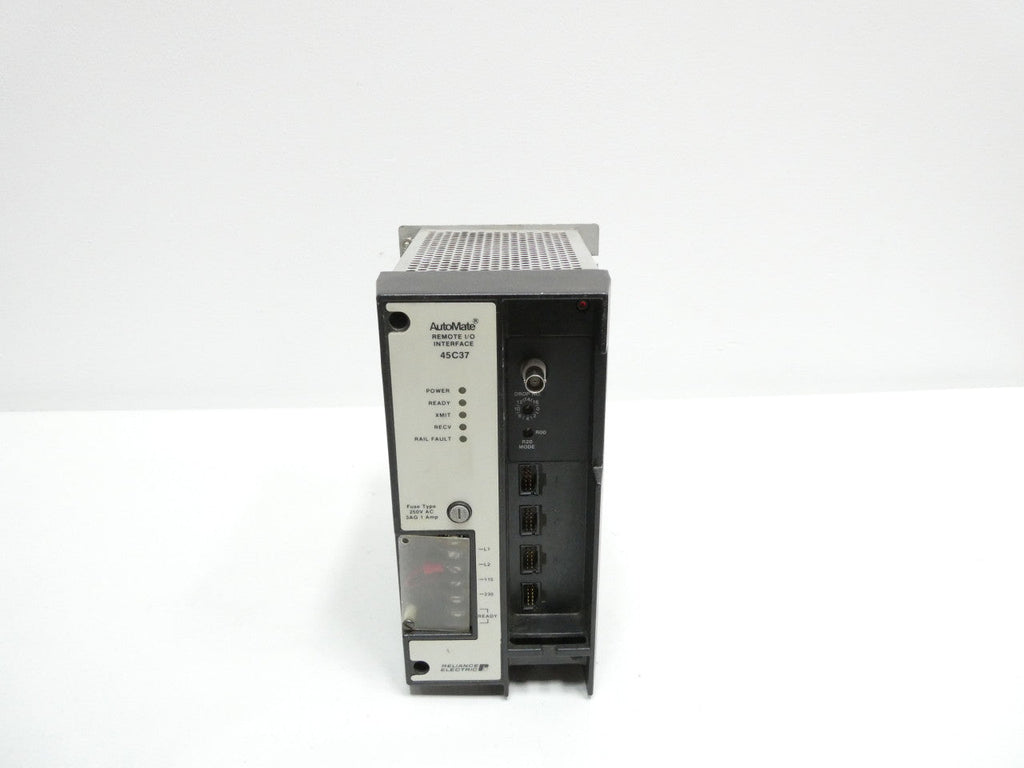

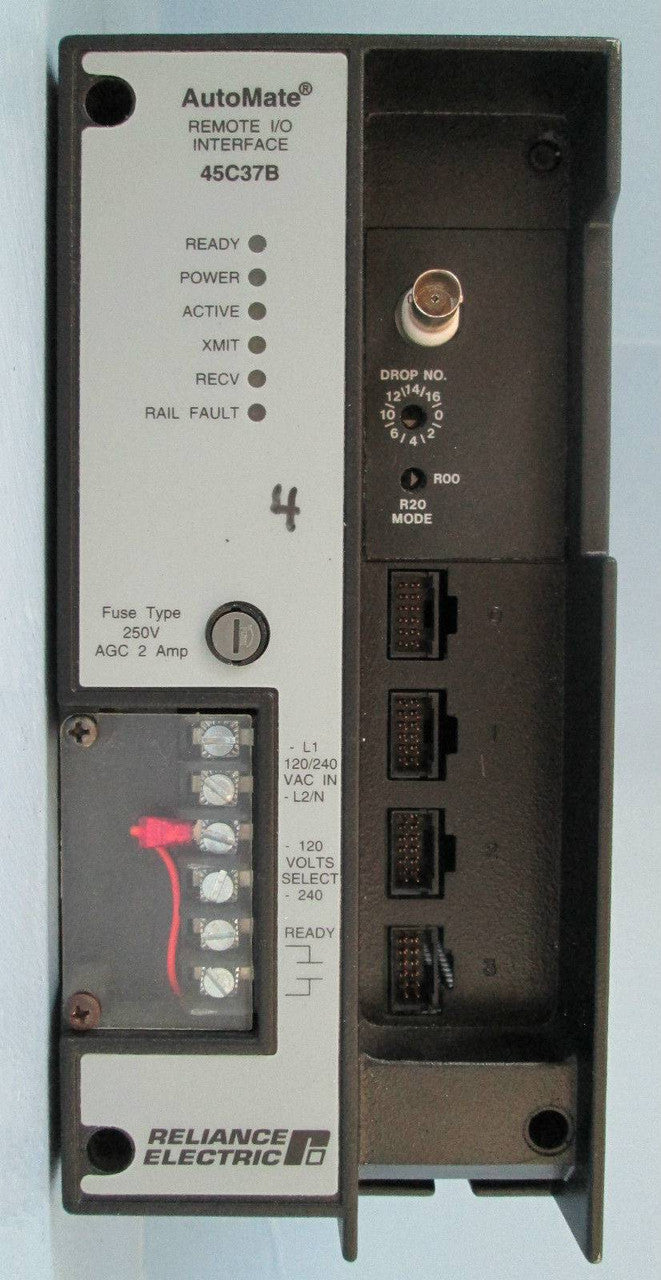

The Reliance Electric 45C37 functions as a remote I/O interface module for Automate systems, enabling connectivity between distributed control components. It supports 120/240 VAC power input, operates on 50/60 Hz frequency, and includes integrated fuse protection, making it suitable for industrial automation environments that require stable and secure remote I/O communication.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Reliance Electric
Category	PLCs and Accessories
Part Number	45C37
Subcatecory	PLC Expansion Modules
Function	Remote I/O Interface Module
Voltage Input	120/240 VAC
Frequency	50/60 Hz
Current Draw	0.25 – 0.5 A
Fuse Type	250 VAC AGC 2 A
Compatible Systems	Reliance Electric Automate Modules
Net Weight (kg)	Approx. 8 lbs (3.63 kg)
Shipping Dimensions (L×W×H)	14" × 10" × 8"





Information About 45C37

The 45C37 is a remote I/O head module designed for use with Reliance Electric Automate systems. It operates within a voltage range of 120 to 240 VAC and a current draw of 0.25 to 0.5 amps. The unit is protected by a 250 VAC AGC 2-amp fuse, ensuring safe operation under varying load conditions. With dimensions of 14" x 10" x 8" and a shipping weight of approximately 8 lbs, this module is built for robust field deployment in distributed control environments.

Key Features:

• Remote I/O Interface: Connects distributed Reliance Electric modules within Automate control systems, enabling remote communication.

• Wide Voltage Range Support: Operates with 120 or 240 VAC at 50/60 Hz, accommodating different power configurations.

• Fuse Protection: Equipped with a 250 VAC AGC 2-amp fuse to protect internal circuits against power surges and faults.

• Moderate Power Consumption: Draws between 0.25 and 0.5 amps, suitable for continuous industrial operation.

• Rugged Design: Built for reliable use in control environments, with durable housing and compact dimensions.

The 45C37 ensures safe and effective remote I/O operation for legacy Reliance Electric Automate control systems.
