Description

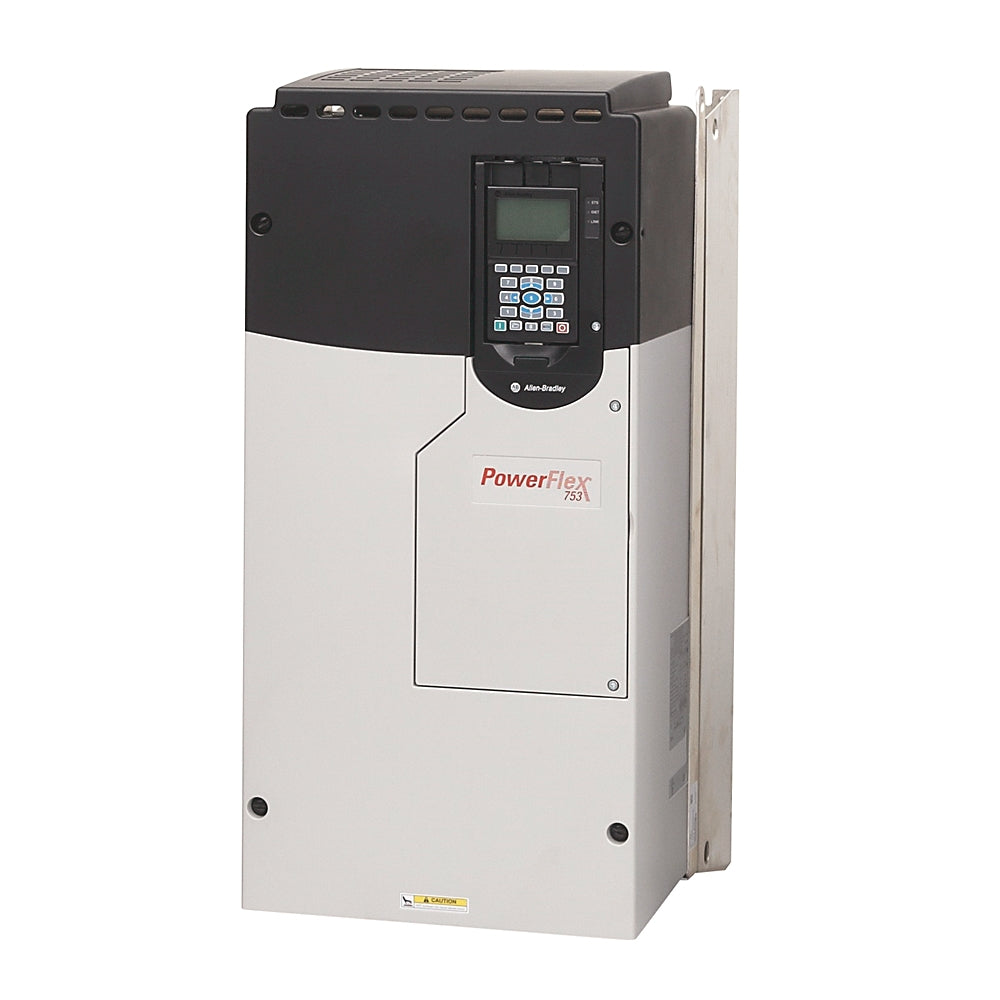

The Allen-Bradley 20F1AND156AA0NNNNN is a high-capacity AC drive from the PowerFlex 753 series, engineered for advanced motor control and energy efficiency. Rated for 480V AC, 3-phase input, and capable of delivering up to 125 HP and 156 A output, this drive supports multiple control methods and integrated filtering in a robust open-type enclosure.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
20F1AND156AA0NNNNN
|
| Subcatecory |
|
| Series |
PowerFlex 753 |
| Enclosure Rating |
IP20/IP00, NEMA/UL Type Open |
| Voltage Rating |
480V AC, 3-Phase |
| Continuous Output Current, HD |
125 Amperes |
| Continuous Output Power, HD |
100 HP |
| DC Filtering |
Yes |
| Mounting |
Panel Mounted |
| Premiere Integration: |
Supported |
| Voltage Class |
480 AC Volts |
| Output Current |
156 Amperes |
| Phase Count |
Three |
| Frame Size |
6 |
| Enclosure Type |
IP00 (IP20 NEMA) |
| EMC Filtering Options |
Filtered, No CM Jumper |
| Input Type |
AC Input with Precharge |
| Dynamic Breaking |
DB Transistor |
| Weight |
85 lbs |
| Dimensions |
26.20 x 12.13 x 13.64 in |
Information About 20F1AND156AA0NNNNN
The 20F1AND156AA0NNNNN is part of the Allen-Bradley PowerFlex 753 adjustable frequency drive lineup. This model features a 480V AC 3-phase input and delivers up to 125 HP (ND) or 100 HP (HD) output power. It supports V/Hz, vector control with FORCE™ technology, and sensorless vector control, enabling precise motor management across various applications. The drive includes EMC filtering, a DB transistor, and a default common-mode jumper.
Key Features:
-
480V AC, 3-Phase Input: Standard high-voltage input for industrial motor systems.
-
125 HP Output (ND): High-output performance for heavy-duty loads and demanding processes.
-
156 A Output Current: Supports large motor loads with continuous operation.
-
Multiple Control Methods: V/Hz, vector control with FORCE™, and sensorless vector control for application versatility.
-
Panel-Mount IP20/IP00 Enclosure: NEMA/UL Type Open design for cabinet integration.
-
Filtered with DB Transistor: Includes EMC filtering and dynamic braking transistor for enhanced motor deceleration.
-
No HIM Included: Configurable via optional HIM or Studio 5000 interface.
-
Premiere Integration Support: Seamless integration into Rockwell Automation environments.
-
Compact and Heavy-Duty Options: Rated for both Normal Duty and Heavy Duty applications.
The 20F1AND156AA0NNNNN provides powerful, scalable motor control with reliable filtering and protection features for advanced industrial systems.
