Description

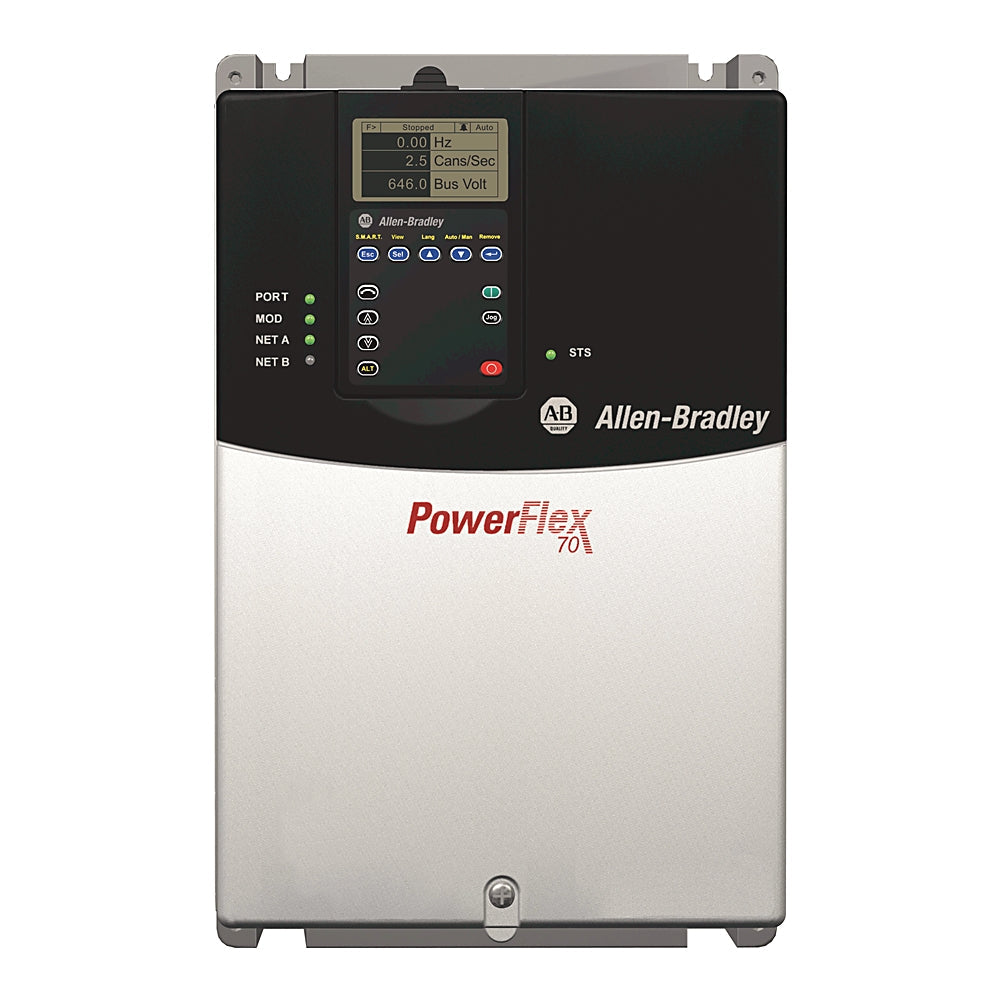

The Allen-Bradley 20AE017A0AYNNNC0 is a PowerFlex 70 AC drive designed for high-performance motor control. Rated for 480V three-phase input and 17A output, it supports motors up to 10 HP. Featuring vector control options, dynamic braking capability, and an IP20/NEMA 1 enclosure, it is ideal for demanding industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
20AE017A0AYNNNC0 |
| Subcategory |
Motor Drives |
| Amperage |
17 Amp |
|
Display Type
|
No HIM - Blank Plate |
| Enclosure Rating |
IP20 |
| Input Voltage |
600 V |
| Standard |
CUL,GOST,KC,MARINE,UL |
| Enclosure |
IP20/NEMA/UL 1 |
| Output |
1 Analog |
| Size |
D Frame |
| Type |
20A |
| Weight |
9.98 kgs |
Information About 20AE017A0AYNNNC0
The Allen-Bradley 20AE017A0AYNNNC0 is a PowerFlex 70 AC drive engineered for precise motor control in industrial applications. Designed for a 600V AC three-phase input, it delivers an output current of 17 amps, supporting motor ratings up to 15 HP (11 kW) for normal-duty operations and 10 HP (7.5 kW) for heavy-duty applications.
Key Features:
-
Enhanced Control: Equipped with enhanced control capabilities, this drive supports advanced motor control strategies, including sensorless vector control and volts-per-hertz (V/Hz) control, to optimize performance across various applications.
-
Brake IGBT: Incorporates an internal Insulated-Gate Bipolar Transistor (IGBT) for braking, enabling dynamic braking when used with an external braking resistor, which enhances control during rapid deceleration or stop scenarios.
-
Human Interface Module (HIM): This model comes with a blank cover in place of the HIM, indicating that an external interface or programming tool is necessary for configuration and monitoring.
-
Enclosure: The drive is housed in an IP20, NEMA/UL Type 1 enclosure with conformal coating, suitable for panel-mounted installations in controlled environments.
Physical Characteristics:
-
Frame Size: Classified as Frame Size D, offering a compact footprint for space-constrained installations.
-
Output Current: Delivers a continuous output of 17A, with short-term overload capacities of 18.7A for 1 minute and 25.5A for 3 seconds, accommodating varying load demands.
In summary, the Allen-Bradley 20AE017A0AYNNNC0 PowerFlex 70 AC drive offers versatile control options and robust features tailored for efficient motor management in industrial applications, with considerations for its upcoming discontinuation.
