Description

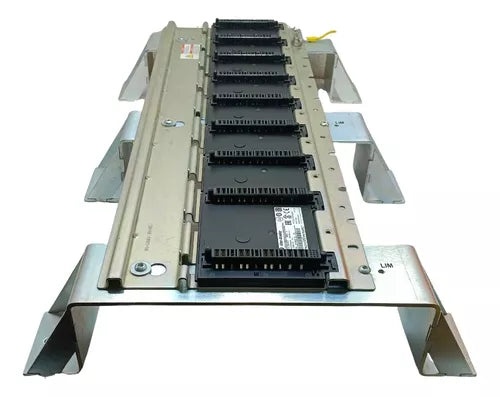

The Allen-Bradley 2094-PRS8 Kinetix 6000 Power Rail is a slim, 8-axis power rail designed to deliver power and control signals from the Integrated Axis Module (IAM) to adjacent components such as Axis Modules, Shunt Modules, and Slot Fillers.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
2094-PRS8
|
| Subcatecory |
|
| Series |
Kinetix 6000 |
| Drive System Voltage |
230 VAC; 430 VDC |
| Compatible modules |
Axis Module (AM), Shunt Module, Slot Filler Module |
| Removal and Insertion under Power (RIUP) |
Not supported |
| Mounting |
Panel Mount |
| Subpanel material |
Zinc plated; Paint free steel panel |
| Mounting hardware |
M6 metric (1/4x20) |
| Components |
Braided ground strap; protective covers |
| Optional installation accessory |
Mounting bracket |
| Module Type |
Slim Power Rail |
| Applications |
230 or 460 Volt Drive Systems |
| Module Capacity |
1 IAM, 7 Additional |
| Number of Axes |
8-Axes |
| Weight |
9.7 lbs (4.43 kg) |
Information About 2094-PRS8
The 2094-PRS8 Power Rail is part of the Allen-Bradley Kinetix 6000 series, known for its efficient and flexible motion control capabilities. This model supports one IAM module and up to seven additional modules, making it ideal for multi-axis drive systems. It is engineered for panel mounting with a durable zinc-plated, paint-free steel subpanel for secure installation.
Key Features:
-
8-Axis Power Rail: Designed to support up to eight connected modules.
-
230V or 460V Drive System Compatibility: Ensures flexibility in different industrial setups.
-
Modular Design: Accommodates 1 Integrated Axis Module (IAM) and up to 7 additional modules.
-
Reliable Power and Control Signal Distribution: Provides seamless connection between drive system components.
-
Durable Construction: Features a robust zinc-plated, paint-free steel panel for long-lasting performance.
-
Panel Mount Design: Ensures secure and efficient installation.
-
Optional Mounting Bracket Accessory: Available for additional mounting support.
The Allen-Bradley 2094-PRS8 Kinetix 6000 Power Rail is ideal for industrial motion control applications that require precise and reliable power distribution in multi-axis systems.
