Description

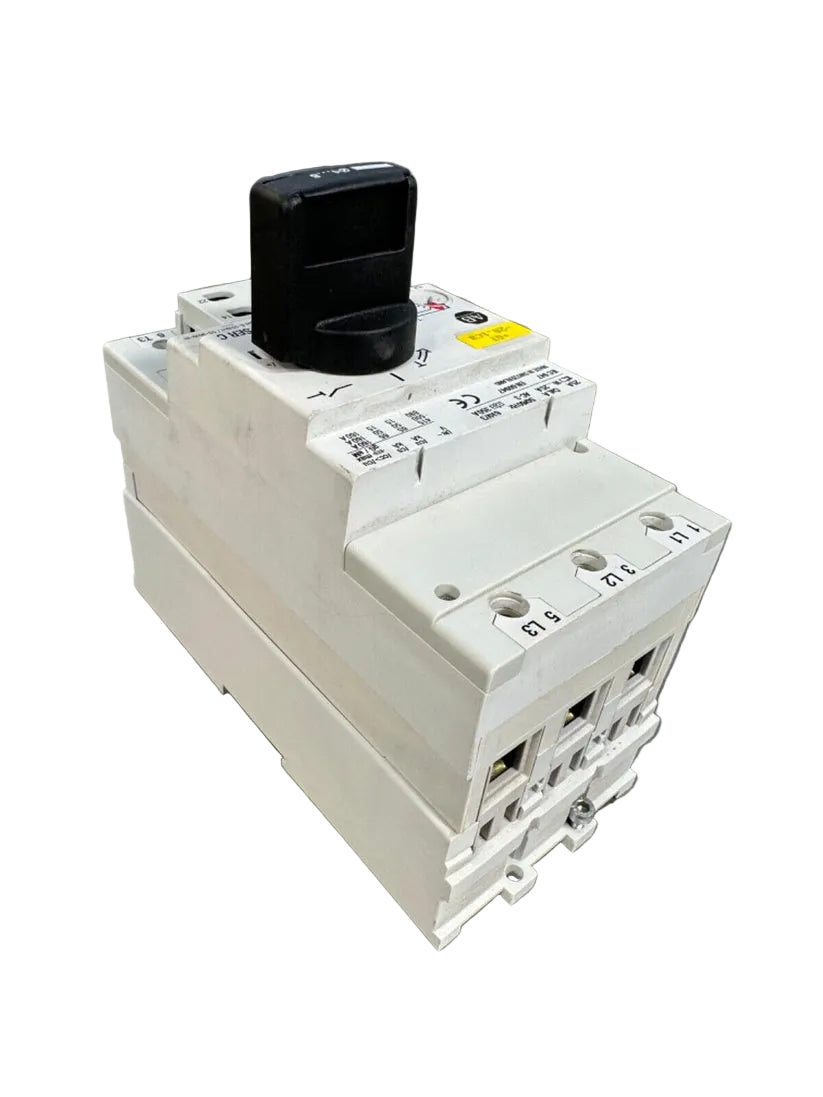

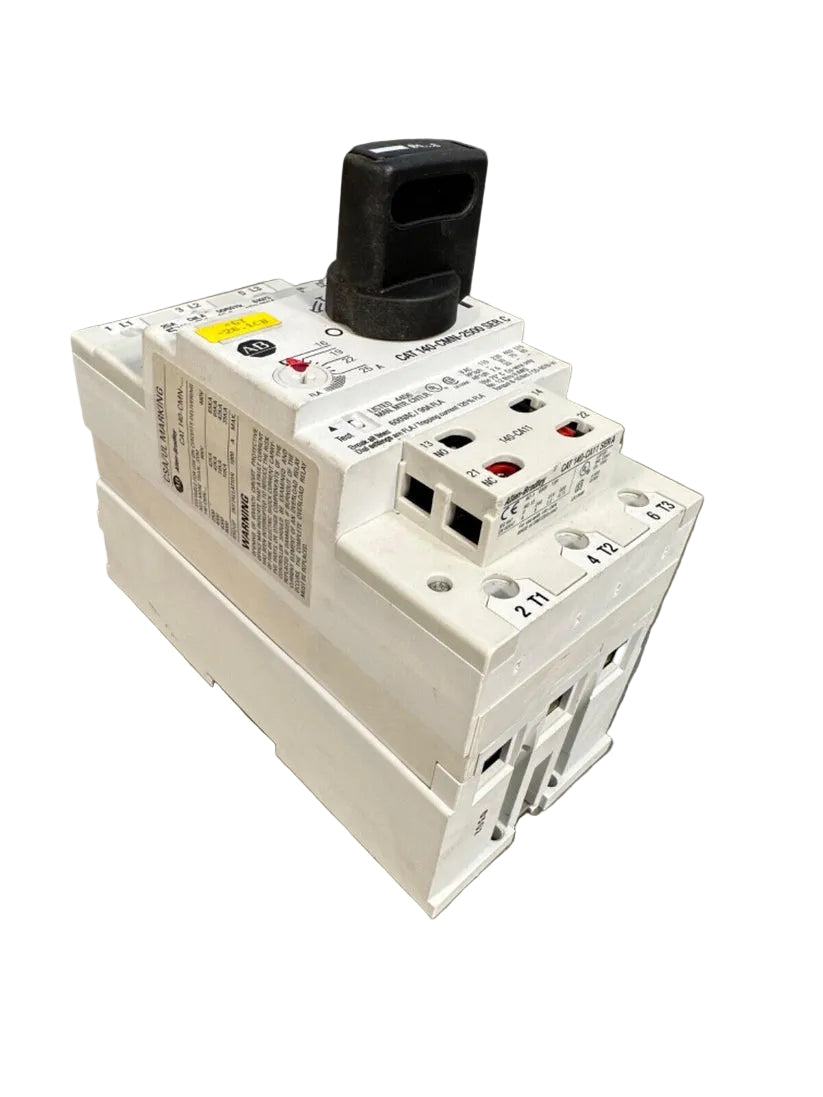

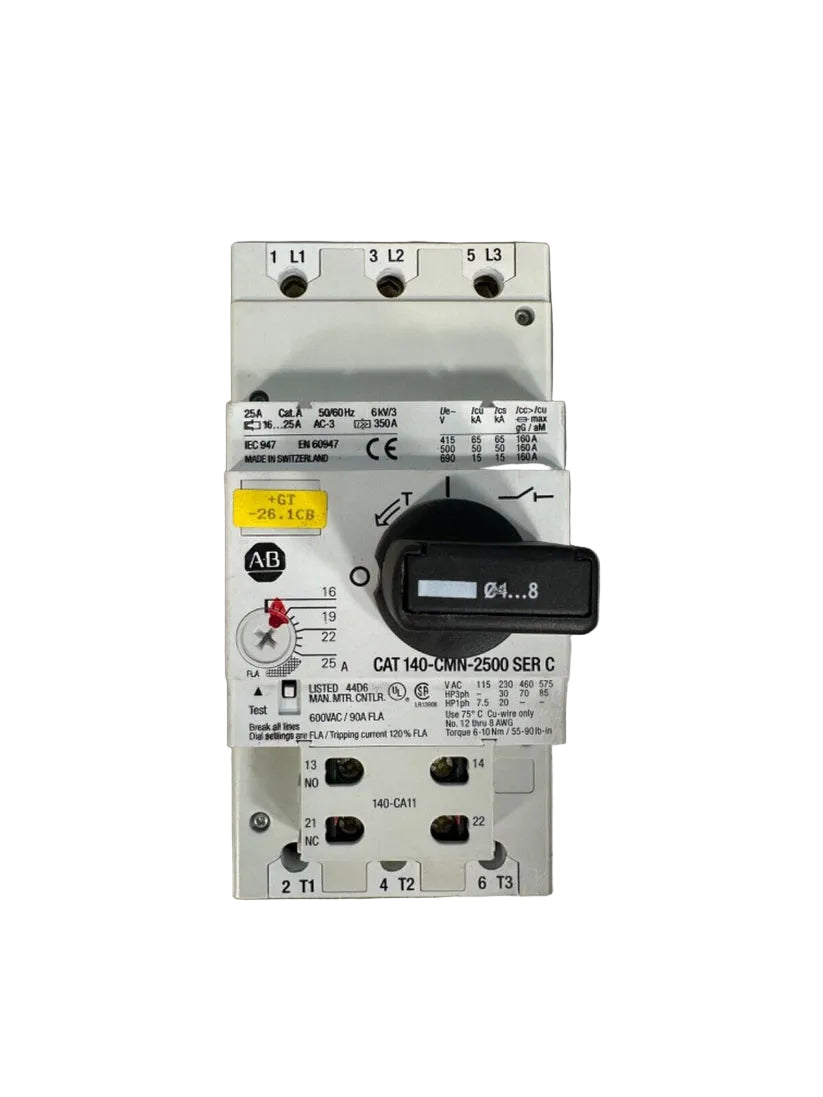

The Allen Bradley 140-CMN-2500 is a motor protection circuit breaker (MPCB) rated for 16–25 Amp operation. It provides standard magnetic trip protection for three-phase motor circuits. This breaker is designed to safeguard motors against short circuits and overload conditions in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen Bradley |
| Category |
Motor Protector Circuit Breaker |
| Part Number |
140-CMN-2500 |
| Subcategory |
Motor Protection |
| Poles |
3 |
| Current Rating |
16–25 Amp |
| Trip Type |
Standard Magnetic |
| Mounting Type |
Panel / Motor Control Center Mount |
| Application |
Three-phase motor protection |
| Weight |
1.5 lbs |
Information About 140-CMN-2500
The 140-CMN-2500 is part of Allen Bradley’s 140-CMN series of MPCBs, engineered for precise motor protection. It features a standard magnetic trip for fast response to short-circuit conditions. The breaker supports adjustable motor current settings between 16 and 25 Amps. Its compact and durable design ensures reliable performance in motor control centers and panelboards.
Key Features:
- Series: 140-CMN series motor protection circuit breaker.
- Current Rating: Adjustable from 16–25 Amp.
- Trip Type: Standard magnetic for short-circuit protection.
- Application: Protects motors in industrial panelboards and motor control centers.
- Poles: 3-pole configuration for three-phase motor circuits.
- Construction: Durable molded case for reliable operation.
- Trip Technology: Thermal-magnetic with standard magnetic trip.
The 140-CMN-2500 delivers the reliability and precision required for industrial motor circuit protection.
