Description

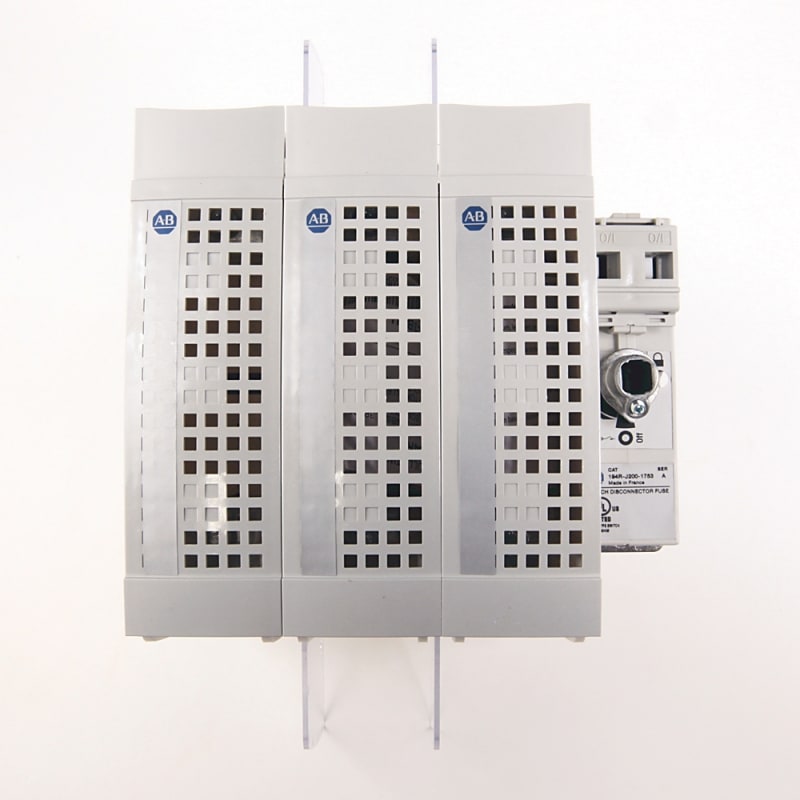

The Allen-Bradley 194R-J200-1753 is a 200 Amp, 3-pole fused disconnect switch designed for reliable load isolation and protection in industrial power systems. It supports J-type fuses and is built with a rotary actuator for straightforward manual operation.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194R-J200-1753
|
| Subcatecory |
Electrical Disconnect Switches
|
|
Actuator
|
Rotary |
| Applications |
For J Fuses |
| Contact Rating |
200 A |
| Number of Poles |
3 Pole |
| Type |
Long Turning Handle, Fused |
| Voltage |
600 Volt |
| Connection Type |
Screw |
| Enclosure |
Open Type |
| Mounting Type |
4-Hole Front |
| Weight |
7.9200 lb |
Information About 194R-J200-1753
The 194R-J200-1753 is part of Allen-Bradley's 194R series of fused disconnect switches and is rated for 600V and 200A. It features a long-turning rotary handle for enhanced safety and ergonomic switching. The switch is open type and suited for integration into custom enclosures or control panels. This model supports J-type fuses, which are known for their time-delay characteristics and high interrupting capacity. With a 4-hole front mounting design, it installs securely in standard panel layouts. The switch is built with screw terminals for straightforward wiring and supports 3-pole operation, making it ideal for 3-phase systems.
Key Features:
-
200 Amp / 600V Rating: Handles mid-range industrial loads securely
-
3-Pole Configuration: Supports balanced 3-phase load disconnection
-
J-Type Fuse Compatibility: Ensures effective short-circuit and overload protection
-
Rotary Long-Handle Design: Enhances user control and operator safety
-
Panel-Ready Mounting: 4-hole front mounting fits standard enclosure layouts
The 194R-J200-1753 provides a dependable fused disconnection solution for industrial control and power distribution applications.
