Description

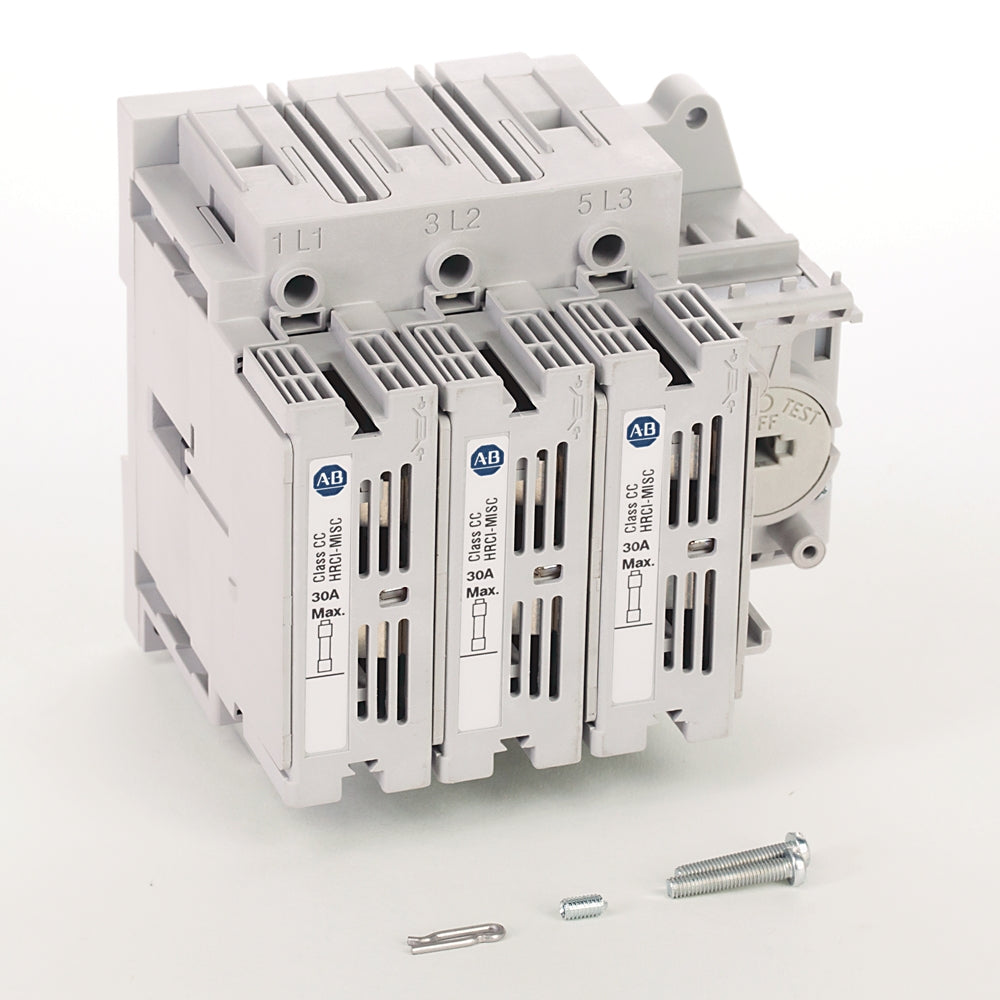

The Allen-Bradley 194R-C30-1753 is a 30A, 3-pole fused rotary disconnect switch rated for up to 600V AC/250V DC. It features a compact open-style design, rotary handle operation, and supports Class CC fuses for reliable circuit protection and isolation in industrial applications.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	General Purpose Switches
Part Number	194R-C30-1753
Subcategory	Electrical Disconnect Switches
Bulletin Number	194R
Rated Operational Voltage	600 VAC
Switch Type	Fused
Fuse Class	UL Class CC
Ampere Rating	30 Amps
Number of Poles	3 Pole
Mounting Type	Typically Panel Mount
Standard Compliance	UL Listed
Short-Circuit Current Rating (SCCR)	Typically 100 kA with Class CC fuses
Weight	0.73 kgs





Information About 194R-C30-1753

The Allen-Bradley 194R-C30-1753 is a fused rotary disconnect switch designed for industrial applications requiring reliable circuit isolation and protection.

Key Features:

• Current Rating: 30 Amperes

• Voltage Ratings:

  • AC: Up to 600 Volts

  • DC: Up to 250 Volts

• Fuse Type: Compatible with UL Class CC and CSA HRCI-MISC fuses

• Maximum Horsepower Ratings:

  • Single-Phase AC (60 Hz):

    • 120V: 0.75 HP

    • 240V: 2 HP

  • Three-Phase AC (60 Hz):

    • 240V: 7.5 HP

    • 480V: 15 HP

    • 600V: 20 HP

  • DC:

    • 125V: 3 HP

    • 250V: 5 HP

• Pole Configuration: 3-pole switch

• Operating Mechanism: Rotary handle offering front or side operation

• Safety Features:

  • Touch-safe design to prevent accidental contact

  • OSHA-compliant padlocking capability for enhanced safety during maintenance

• Mounting Style: Open style configuration

This disconnect switch is suitable for use in various industrial settings where circuit isolation is necessary for safety and maintenance purposes. Its compact design aids in reducing panel space requirements, making it ideal for applications with space constraints.
