Description

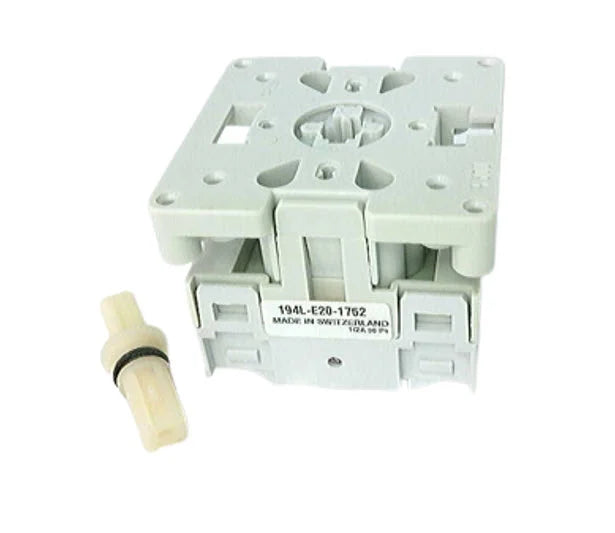

The Allen-Bradley 194L-E20-1752 is a 2-pole IEC control and load switch rated for 20 amps and 690 volts. Designed for front or door mounting, it features a 90° OFF-ON operation and supports flexible conductor configurations, offering reliable performance for control panel applications and motor load switching.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194L-E20-1752
|
| Subcategory |
Load Cell |
| Number of Poles |
|
| Amperage |
20 Amp |
| Voltage Rating |
690 Volt |
| Load Rating |
4.5 kW at 380–440V |
| Contact Configuration |
OFF-ON, 90° Rotation |
| Mounting Type |
Front/Door |
| Actuator |
Select Separately |
| Wire Size Supported |
(2) 16–10 AWG (Rigid and Fine Stranded) |
| Enclosure Type |
Open |
| Temperature Range |
-25 to 60°C |
| Standards |
CE, CSA, KC, UL |
| Weight |
0.2200 lb |
Information About 194L-E20-1752
The 194L-E20-1752 belongs to Allen-Bradley’s IEC Load Switch product line, providing dependable isolation and control functionality for various electrical loads. This 2-pole switch is rated for 20 A and supports a load rating of 4.5 kW at 380–440V, making it suitable for industrial motor switching and control circuits.
Key Features:
- Dual-Pole Load Control: Designed with two poles to support simultaneous switching of both lines in a single-phase system or two phases in multi-phase applications, ensuring consistent disconnection under load.
- High Voltage Capability: Rated up to 690V, this switch can be used in a wide range of industrial power control applications, including those involving motors and high-voltage machinery.
- 20 Amp Current Rating: Provides robust current handling for light to medium-duty load circuits, enabling use in HVAC, conveyors, and small motor systems.
- Front/Door Mount Configuration: Engineered for mounting through control panel doors or on the front plate, allowing straightforward operator access for control or isolation.
- Flexible Wire Compatibility: Accepts 16–10 AWG rigid or fine-stranded wires, with two connections per terminal, simplifying installation across various cable types and conductor styles.
- Customizable Actuator Selection: Ships without an actuator, allowing users to select the most suitable control handle style, size, and lockout feature to fit their specific application or safety standard.
- Industrial-Grade Performance: Withstands operational temperatures from -25°C to 60°C, making it reliable in both standard indoor environments and harsher factory settings.
The 194L-E20-1752 is engineered for precise control and load switching in industrial environments, offering adaptable installation and standards-compliant operation.
