Description

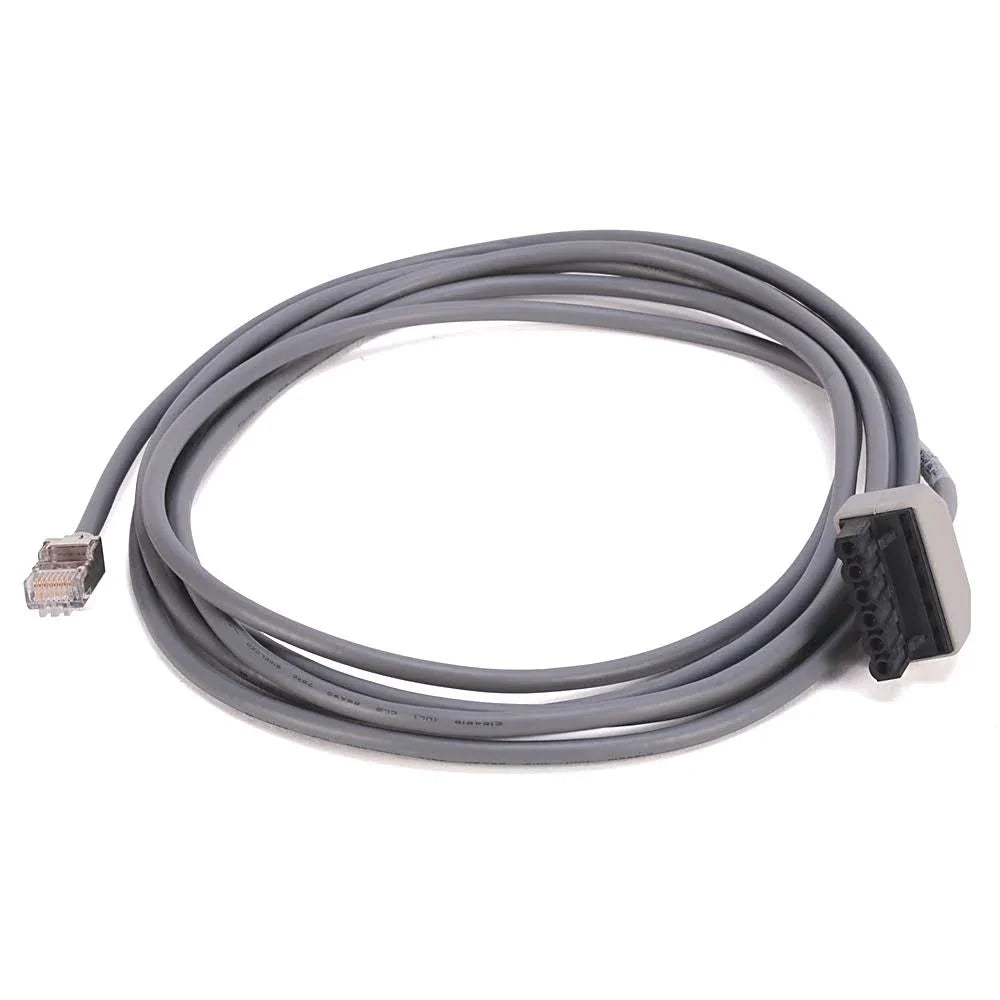

The Allen-Bradley 1761-CBL-AS03 is a high-quality communication cable assembly engineered for connecting MicroLogix and SLC 500 series controllers. With a 6-pin Phoenix connector on one end and an RJ45 connector on the other, this cable ensures stable and efficient DH-485 protocol communication across industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1761-CBL-AS03
|
| Subcategory |
PLC Battery/Cable/Accessory |
| Connection Type |
6-Pin Phoenix to RJ45 |
| Connector 1 |
6-Pin Phoenix |
| Connector 2 |
RJ45 |
| Length |
3 meters (9.8 feet) |
| Supported Controllers |
MicroLogix 1000, SLC 5/01, 5/02, 5/03 |
| Standards |
KC, Marine |
| Application |
Controller Interface Cable |
| Weight |
0.25 lbs |
Information About 1761-CBL-AS03
The 1761-CBL-AS03 is a specialized communication cable designed to link MicroLogix 1000 and SLC fixed controllers (5/01, 5/02, and 5/03 models) to DH-485 networks. The cable terminates in a 6-pin Phoenix connector on one side and a standard RJ45 plug on the other, facilitating seamless integration with legacy Rockwell Automation hardware. Its compact 3-meter length offers optimal flexibility in panel layouts or confined industrial settings. With KC and Marine approvals, this cable is suitable for use in both standard and marine-grade control panels.
Key Features:
- Specialized Compatibility: Connects MicroLogix 1000 and SLC 5/01, 5/02, 5/03 controllers to DH-485 networks via 6-pin Phoenix to RJ45 interface.
- Durable Construction: Built to withstand harsh industrial and marine environments, maintaining reliable data transmission.
- Optimal Length: 3-meter (9.8 ft) cable length ensures a balance between flexibility and manageability in confined panel installations.
- Standards Compliance: Meets KC and Marine certification standards for wide application scope across regulated industries.
- Simplified Integration: Pre-configured ends eliminate the need for additional adapters or complex wiring setups.
The 1761-CBL-AS03 offers a dependable connection solution for legacy Rockwell systems that require DH-485 communication with a compact, robust design.
