Description

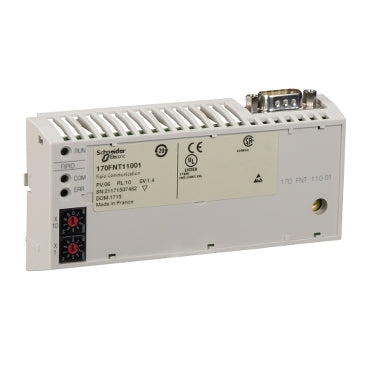

The Schneider Electric 170FNT11001C is a Fipio communication adapter designed for integration within the Modicon Momentum automation platform. It enables high-speed data exchange between I/O modules and Premium PLC bus managers using the Fipio protocol. This adapter supports reliable industrial communication over twisted pair or optical fiber media.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Industrial Communication |
| Part Number |
170FNT11001C |
| Subcategory |
Fieldbus Communication Adapters |
| Product Type |
Fipio Communication Adapter |
| Product Line |
Modicon Momentum |
| Compatible PLC |
Premium |
| Communication Protocol |
Fipio |
| Method of Access |
Producer/Consumer principle |
| Transmission Rate |
1 Mbit/s |
| Transmission Medium |
Twisted shielded pair, Optical fiber 50/125, 62.5/125 |
| Topology |
Extension or tap-off cable |
| Devices per Segment |
0–31 (without repeater), up to 97 (with repeater) |
| Maximum Cable Length |
Up to 5000 m |
| Fail State |
Fallback to zero / Maintain value / Forcing to zero / Full scale |
| Local Signaling |
RUN (green), ERR (red), COM (yellow) LEDs |
| Supply |
From I/O base |
| Resistance to ESD |
4 kV |
| Resistance to EM Fields |
9.1 V/m |
| Standards Compliance |
CSA, CE |
| Max Operating Humidity |
80% non-condensing |
| Max Storage Humidity |
80% non-condensing |
| Max Operating Altitude |
1000 m |
| Weight |
0.75 lbs (0.34 kg) |
Information About 170FNT11001C
The 170FNT11001C is a communication adaptor from Schneider Electric’s Modicon Momentum product line, engineered for distributed automation systems. It operates using the Fipio protocol based on the producer/consumer communication principle and supports transmission rates up to 1 Mbit/s. The adaptor is compatible with Premium PLC bus managers and is designed with an open industrial structure conforming to FIP standards. Local diagnostic LEDs provide real-time status indication for power, communication activity, and fault conditions.
Key Features:
- Fipio Communication Protocol: Enables deterministic producer/consumer data exchange within Modicon systems.
- Modicon Momentum Compatibility: Designed specifically for Momentum automation platform integration.
- Multiple Transmission Media Support: Operates over twisted shielded pair or optical fiber cabling.
- High-Speed Data Transfer: Supports transmission rates up to 1 Mbit/s.
- Extended Network Reach: Allows cable lengths up to 5000 m with optical fiber.
- Local Diagnostic Signaling: Equipped with RUN, ERR, and COM LEDs for system status monitoring.
- Flexible Network Topology: Supports extension or tap-off cable configurations.
The 170FNT11001C delivers the reliability and precision required for industrial fieldbus communication in distributed automation systems.
