Description

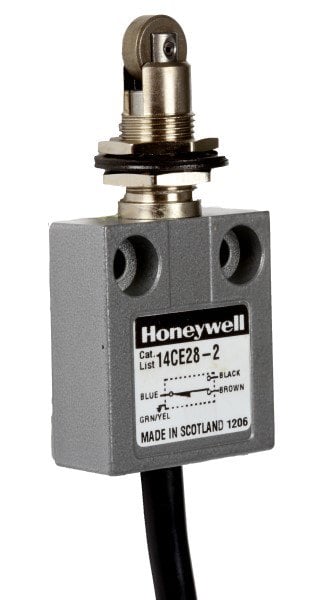

The Honeywell 14CE28-2 is an enclosed basic limit switch from the MICRO SWITCH™ 14CE Series, designed for reliable position sensing in industrial equipment. Featuring an SPDT snap-action contact mechanism and a top roller plunger actuator, it is rated at 5A up to 240 VAC. Its sealed zinc die-cast housing provides durable protection for demanding machine control environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Electromechanical Components |
| Part Number |
14CE28-2 |
| Subcategory |
Limit Switches |
| Series |
14CE |
| Contact Form |
SPDT (1NC / 1NO) |
| Contact Action |
Snap Action |
| Current Rating |
5 A (Thermal) |
| Voltage Rating AC |
240 VAC |
| Actuator Type |
Top Roller Plunger |
| Operating Force (Max) |
11.8 N |
| Release Force (Max) |
4.4 N |
| Pretravel |
1.0 mm ± 0.5 mm |
| Overtravel |
3.0 mm min. |
| Differential Travel |
0.1 mm max. |
| Termination Type |
2 m Side Exit Cable |
| Housing Material |
Zinc Die-Cast |
| IP Rating |
IP65 |
| NEMA Rating |
1, 3 |
| Operating Temperature Range |
0°C to 70°C |
| Mechanical Life |
Up to 10 Million Operations |
| RoHS Compliant |
Yes |
| Weight |
0.80 lb |
Information About 14CE28-2
The 14CE28-2 belongs to Honeywell’s 14CE Series miniature enclosed limit switches, engineered for compact installations requiring environmental sealing and precise actuation. It incorporates a 1NC/1NO SPDT snap-action contact configuration for flexible integration into control circuits. The switch is equipped with a top roller plunger actuator and side exit cable termination, supporting straightforward installation in machinery and conveyor systems. Designed with IP65 sealing and NEMA 1 and 3 ratings, it is suitable for industrial applications where protection against dust and splashing water is required.
Key Features:
- SPDT Snap-Action Contacts: Provides 1NC and 1NO outputs for versatile control integration.
- Top Roller Plunger Actuator: Enables smooth and accurate mechanical actuation.
- 5A at 240 VAC Rating: Suitable for industrial control circuits.
- IP65 Sealed Housing: Protects against dust ingress and water spray.
- Zinc Die-Cast Enclosure: Ensures durability in harsh operating conditions.
- Side Exit Cable Termination: Simplifies installation and wiring management.
- High Mechanical Life: Rated up to 10 million operations.
- Precise Travel Characteristics: Controlled pretravel, overtravel, and minimal differential travel for accurate switching.
The 14CE28-2 delivers the reliability and precision required for industrial position detection and machine control systems.
