Description

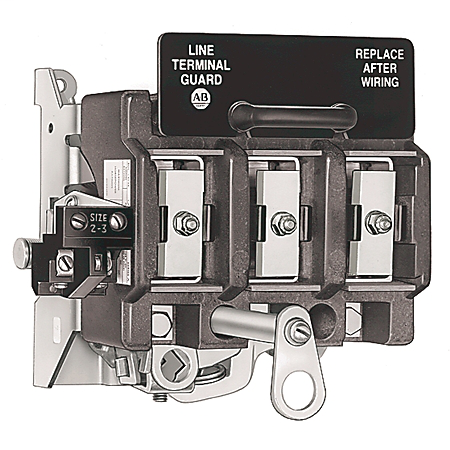

The Allen-Bradley 1494R-N30 is a heavy-duty disconnect switch rated for 30A. Designed for reliable manual motor control and circuit isolation, it features a compact, panel-mounted design suitable for industrial applications, ensuring safe power disconnection during maintenance or emergency situations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
1494R-N30 |
| Subcategory |
Electrical Disconnect Switches |
| Amperage |
30 Amp |
|
Blade Dimensions
|
100.8 mm W x 90.5 mm D x 122.2 mm H |
| Split Crucible |
S |
| Type |
Switch part or accessory |
| Number of Poles |
3 Pole |
| Standard |
CE,CSA,KC,UL |
| Voltage |
600 Volt |
| Phases |
3 |
| Weight |
0.93 kgs |
Information About 1494R-N30
The Allen-Bradley 1494R-N30 is a heavy-duty, non-fusible disconnect switch designed for reliable circuit isolation and manual motor control in industrial environments. Rated for 30A and compatible with 3-phase systems, it is ideal for use in control panels and machinery requiring safe power disconnection during maintenance or emergencies.
Key Features:
Manual Circuit Isolation: The 1494R-N30 allows for quick and secure disconnection of electrical circuits, supporting safe service operations and compliance with lockout/tagout procedures.
Rod-Operated Mechanism: Designed for variable-depth applications, it includes a flexible rod-operated system that ensures dependable mechanical operation across a range of panel configurations.
Compact Panel Mounting: This disconnect switch is engineered for mounting inside NEMA Type 1 or 12 enclosures, saving space while maintaining accessibility and ease of operation.
Standard Kit Components: The switch kit includes the disconnect unit, operating handle, connecting rod, and hitch pin—offering a complete solution for installation and use.
Physical Characteristics:
Current Rating: Rated at 30 Amps, suitable for small to medium-sized motor loads and general-purpose disconnecting needs.
Voltage Compatibility: Supports a wide voltage range across three-phase systems, ensuring flexibility in industrial applications.
In summary, the Allen-Bradley 1494R-N30 delivers safe, durable, and efficient circuit disconnection for industrial systems, with a compact form factor and essential safety features, making it a trusted solution for legacy installations.
