802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

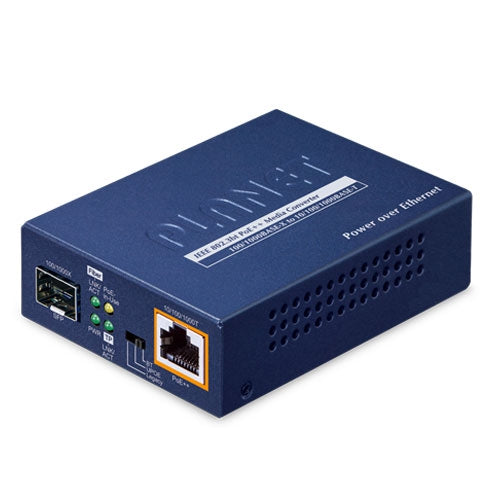

As PLANET GUP-805A-95W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 95 watts for different kinds of PoE applications, the GUP-805A-95W provide a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
|
Model
|
PoE Standard
|
PoE Budget
|
LAN Port Speed
|
SFP Slot Speed
|
|
GUP-805A-95W
|
IEEE 802.3af/at/bt
|
95 watts
|
10M/100M/1000Mbps
|
100M/1000BASE-X
|
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-95W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-95W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:
|
Optic Mode
|
Connector Type
|
Distance
|
|
Multi-mode
|
Duplex LC | 220m/550m/2km |
|
Single mode
|
Duplex LC
|
20/40/60/80/120km
|
|
Single mode WDM
|
Simplex LC
|
2/10/20/40/80/120km
|
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-95W provide one DIP switch for multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode
|
PoE Mode
|
Function
|
|
BT
|
This mode fully supports IEEE 802.3af/at/bt standards.
|
|
UPOE
|
This mode fully supports Cisco UPoE standards or PoH standards.
|
|
Legacy
|
The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard.
This protects against damage to the PDs as the right PoE mode is applied.
|
Physical Port
- Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
- Copper RJ45 interface with Data + Power output
- Copper port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X.
- Fiber media allows
- Multi-mode fiber using LC connector
- Single-mode fiber using LC connector
Power over Ethernet
- Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
- Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
- Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port
- RJ45 PoE++ port with built-in 802.3bt type-4 PoE 95W injector function
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- IEEE 802.3bt/IEEE 802.3at splitter devices compatibility
Layer 2 Features
- Store-and-Forward mechanism
- Non-blocking full wire-speed forwarding rate
- IEEE 802.1Q Tag VLAN transparent, multicast pass through
- 9K jumbo frame
- IEEE 802.3x full-duplex and half-duplex back-pressure flow control to eliminate the loss of packets
Mechanical
- Metal case
- LED indicators for easy network diagnostics
- DIP switch for PoE power feeding options (BT/UPOE/Legacy) selection
- DC 52V~55V power input socket
- Wall mounting or DIN-rail installation (optional)
- Compact in size, easy installation
| Interface | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| SFP Interface | 100/1000BASE-X SFP interface |
| Fiber Mode | May vary on SFP Module |
| Fiber Port Type (connector) | SFP, LC type |
| Fiber Maximum Distance | May vary on SFP Module |
| Power Over Ethernet | |
| PoE Output | IEEE 802.3af Power over Ethernet PSE IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3bt Power over Ethernet Plus Plus PSE |
| Power Output | PoE 52-55V DC, 95 watts |
| PoE Power Budget | 95 watts |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| Hardware Specifications | |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 144g |

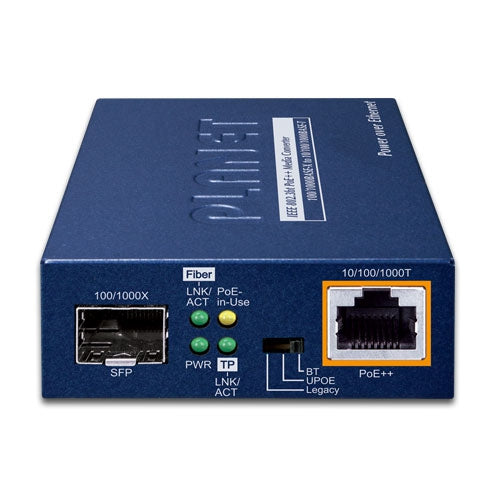

| LED | System: PWR (Green) Fiber 100/1000BASE-X: LNK/ACT(Green) TP 10/100/1000BASE-T: LNK / ACT(Green) PoE: Power-in-use (Amber) |
| DIP Switch | PoE power feeding options (BT/UPOE/Legacy) selection |

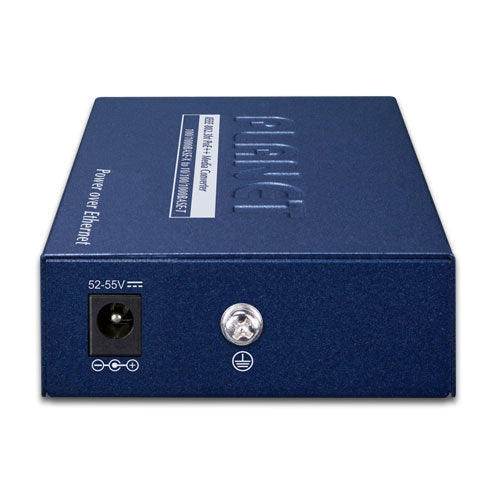

| Power Supply | DC 52V~55V Power Socket, external AC-to-DC adapter |
| Installation | Wall-mount or DIN-rail installation(Optional) |
| Layer 2 Features | |
| Switch Architecture | Store-and-Forward |
| Forwarding Rate | Non-blocking full wire-speed forwarding rate |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet over TP IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Cables | TP：Cat 3/4/5/5e/6 UTP cable Fiber： Multi-mode: 50/125m or 62.5/125μm optic fiber Single-mode： 9/125μm optic fiber |
| Environment | |
| Temperature | Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C |
| Humidity | 5% ~ 95% non-condensing |
