Descrição

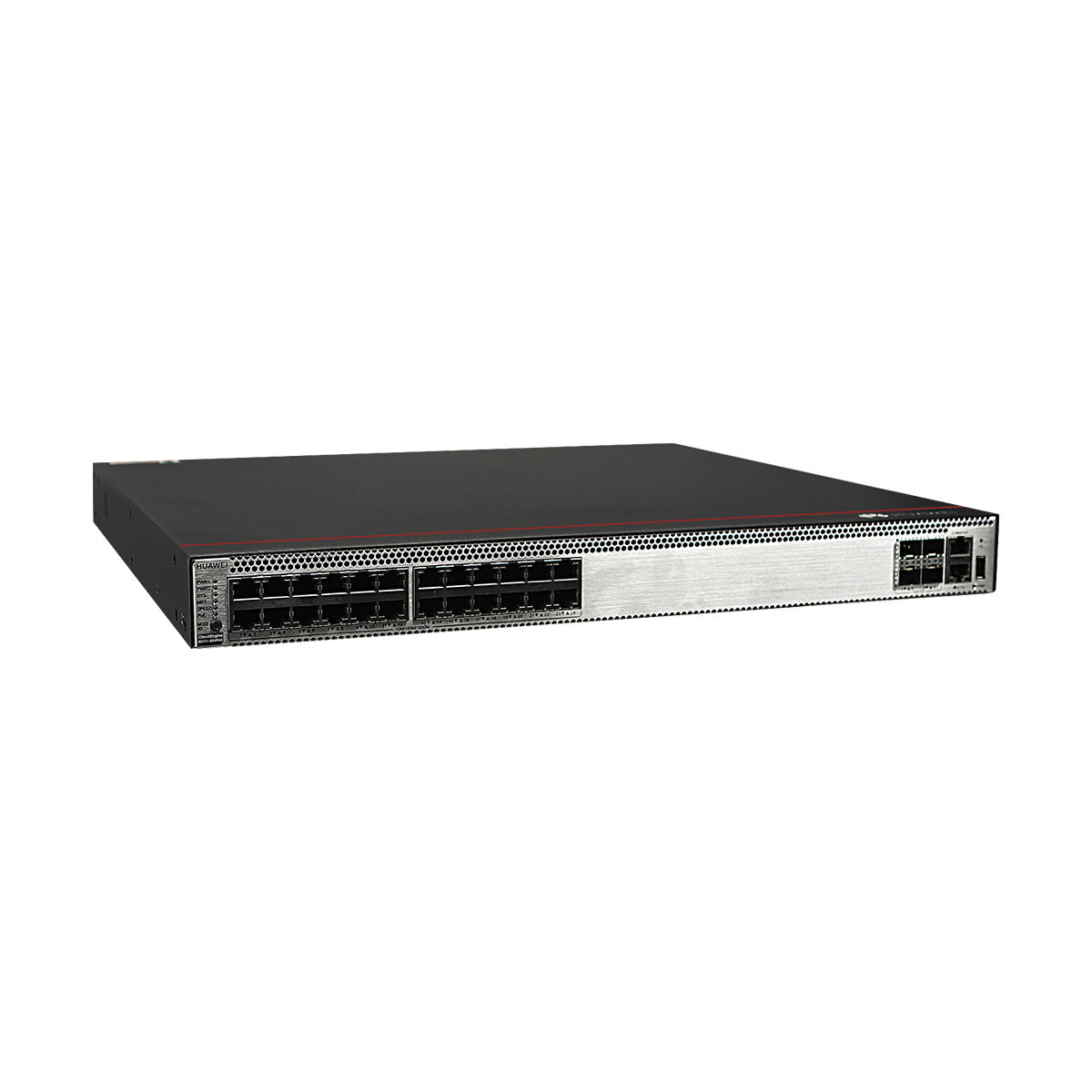

Huawei CloudEngine S5731-S24P4X 24-Port PoE+ Access Switch | 4 x 10G SFP+ Uplinks
Overview
The Huawei CloudEngine S5731-S24P4X is a high-performance Layer 3 PoE+ access switch designed for enterprise campus networks, high-density wireless deployments, and video surveillance infrastructures.
It features 24 Gigabit PoE+ ports for powering wireless access points, IP cameras, VoIP phones, and IoT devices, along with 410G SFP+ uplinks to ensure high-speed, bottleneck-free aggregation to core or distribution layers.
With a switching capacity of 128 Gbps / 672 Gbps, up to 1600W PoE power budget, and Huawei's iStack stacking technology, the S5731-S24P4X enables scalable, reliable, and energy-efficient network deployments.
Highlights
-
24 x 1G PoE+ Ports
-
4 x 10G SFP+ Uplinks
-
128 Gbps / 672 Gbps Switching Capacity
-
96 Mpps Forwarding Rate
-
iStack (up to 9 switches)
-
Up to 1600W PoE Budget
-
Layer 3 Routing - OSPF, IS-IS, BGP
-
Advanced Security & QoS
Use Cases & Deployment Scenarios
1. Wi-Fi 6 Wireless Networks
High-density AP deployment with sufficient PoE power
2. IP Surveillance Systems
Reliable power + high-bandwidth uplinks for video traffic
3. VoIP & UC Networks
Stable PoE supply and QoS for voice services
4. Smart Campus / Education
Supports classrooms, dormitories, and campus-wide networks
5. Enterprise Office Networks
Scalable access layer for corporate environments
6. IoT & Smart Buildings
Connect sensors, access control, and automation systems
HCIE Engineer's Perspective
From a network engineering standpoint, the S5731-S24P4X stands out for its high PoE density combined with 10G uplink capacity, making it particularly suitable for Wi-Fi 6 deployments where each AP demands higher power and bandwidth.
Additionally, the support for BGP in access layer scenarios provides flexibility for advanced enterprise designs, especially in large campus networks requiring route control and traffic segmentation.
Deployment & Compatibility
-
Standard 1U rack-mount design for easy integration
-
Compatible with third-party:
-
Wireless access points
-
IP cameras
-
VoIP systems
-
-
Interoperable with mainstream routers and firewalls
-
Supports hybrid deployment in Huawei + multi-vendor environments
Recommended Accessories
| Model | Category | Description |
|---|---|---|
| SFP-10G-SR | Transceiver | 10G multimode (300m) |
| SFP-10G-LR | Transceiver | 10G single-mode (10km) |
| PAC600S56-CB | Power Module | 600W AC PoE PSU |
| PAC1000S56-CB | Power Module | 1000W AC PoE PSU |
| FAN-023A-B | Fan Module | Hot-swappable fan |
Comparison with Similar Models
| Model | Ports | PoE | Uplinks | Best For |
|---|---|---|---|---|
| S5731-S24P4X | 24GE | Yes | 4 x 10G | Medium PoE deployments |
| S5731-S48P4X | 48GE | Yes | 4 x 10G | High-density PoE |
| S5731-S24T4X | 24GE | No | 4 x 10G | Data-only networks |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5731-S24P4X |
| Ports | 24 GE PoE+ |
| Uplink | 4 x 10GE SFP+ |
| Switching Capacity | 128 Gbps / 672 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 64K |
| VLAN | 4,096 |
| QoS | 8 queues per port |
| Routing | Static, RIP, OSPF, IS-IS, BGP |
| IPv6 | OSPFv3, BGP4+, IS-ISv6 |
| Stacking | iStack (9 switches) |
| PoE Budget | Up to 1600W (dual PSU) |
| Power Supply | Dual hot-swappable |
| Max Power | 121W (without PD) / 977W (with 720W PD load) |
| Temperature | -5°C to +45°C |
| Dimensions | 442 x 420 x 43.6 mm |
| Weight | 9.2 kg |
Why Choose S5731-S24P4X?
1. High-Power PoE+ for Dense Device Deployments
-
IEEE 802.3af/at compliant
-
Up to 1600W PoE budget (dual 1000W PSUs, 220V)
Ideal for:
-
Wi-Fi 6 / Wi-Fi 5 access point deployments
-
IP surveillance systems (HD / 4K cameras)
-
VoIP telephony and unified communications
-
Smart building and IoT device connectivity
2. 10G Uplink for High-Bandwidth Aggregation
-
4 x 10G SFP+ uplinks
Ensures:
-
Smooth aggregation of wireless traffic
-
Stable video streaming for surveillance
-
High-speed connection to aggregation/core switches
3. iStack - Scalable Network Expansion
-
Stack up to 9 switches
-
Single logical device management
-
Improved reliability and simplified operations
4. Advanced Layer 3 Routing
Supports:
-
Static routing
-
RIP / OSPF / IS-IS
-
BGP for enterprise routing
Ideal for:
-
Campus Layer 3 access
-
Multi-VLAN segmentation
-
Inter-building routing
5. Enterprise-Grade Security
-
802.1X authentication
-
DHCP snooping
-
ARP inspection
-
MAC address filtering
-
Port isolation
6. Energy-Efficient Design
-
Intelligent fan speed adjustment
-
Optimized PoE power management
-
Reduced operational cost
