Description

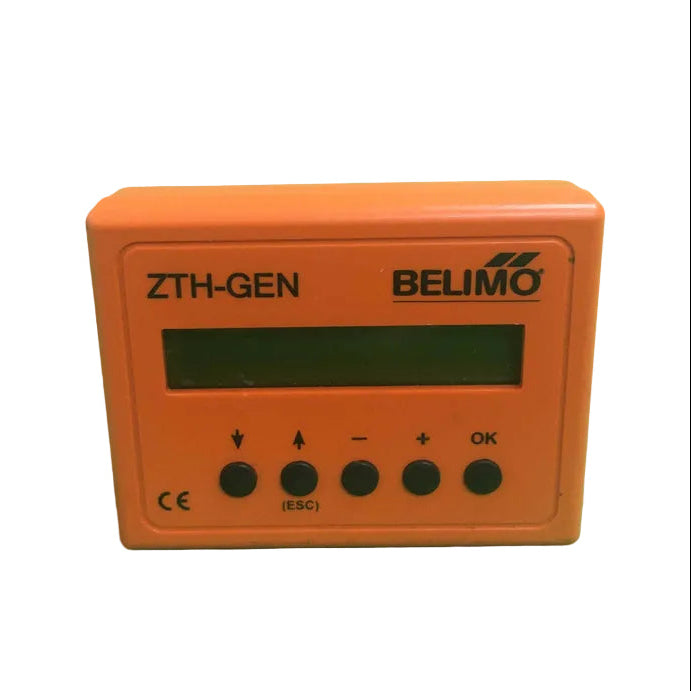

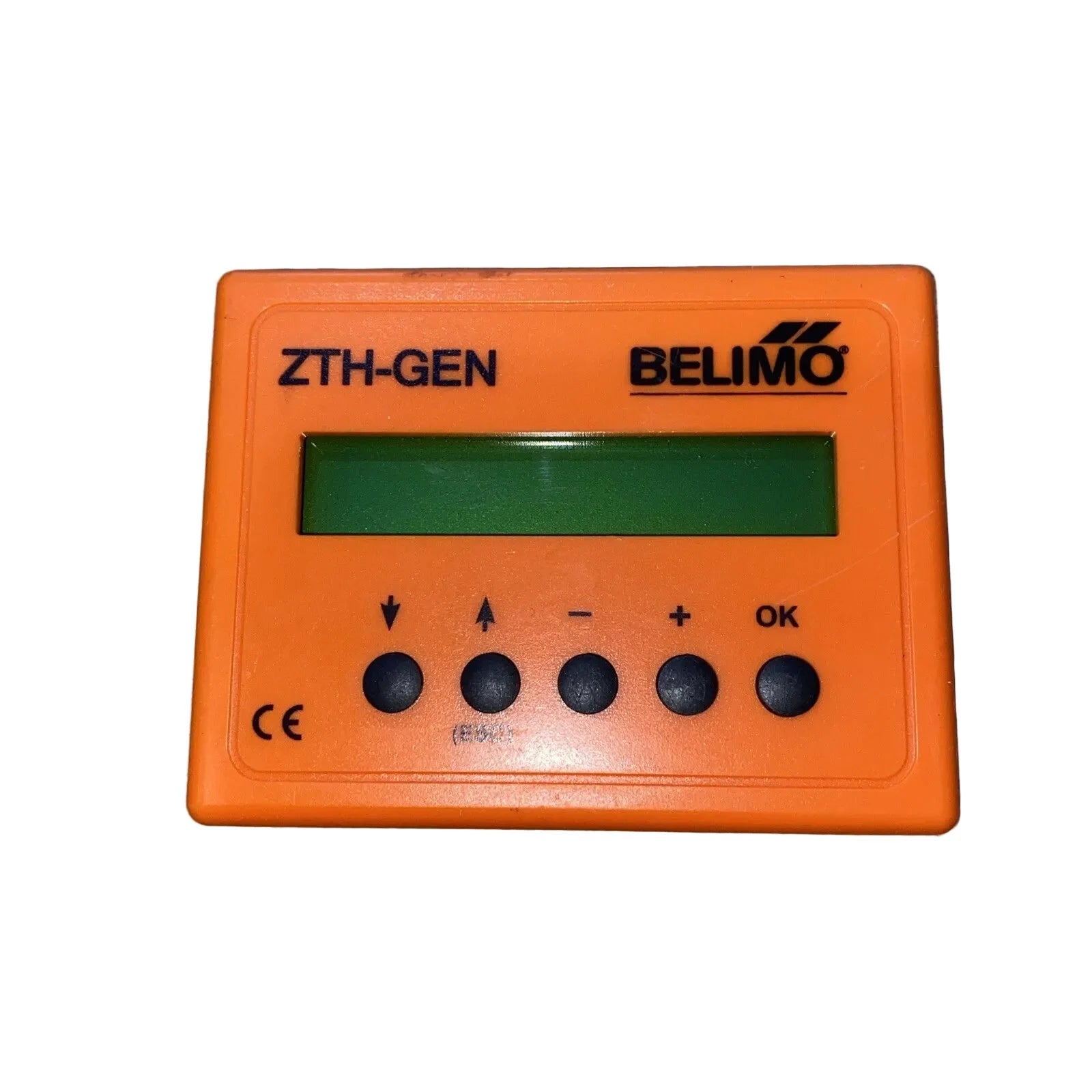

The Belimo ZTH-GEN is a handheld programming tool designed for configuring and commissioning compatible Belimo valve actuators and control devices. It operates on 24 VAC power and features a clear LCD display with a 6-pin male connection for direct device interface.

Technical Specifications

Information About ZTH-GEN

The ZTH-GEN is Belimo’s general-purpose handheld programming tool developed to simplify setup, adjustment, and diagnostics of compatible Belimo actuators. It connects directly to devices via a dedicated 6-pin interface, allowing technicians to access configuration parameters without external software or controllers. Powered by a standard 24 VAC supply, the unit provides reliable operation during commissioning and maintenance tasks. Its compact design and integrated LCD screen support clear menu navigation and on-site parameter verification.

Key Features

• Dedicated Belimo Device Interface: Equipped with a 6-pin male connector for direct communication with compatible Belimo actuators and control products.
• Integrated LCD Display: Built-in screen provides clear visualization of settings, parameters, and diagnostic information during setup.
• 24 VAC Powered Operation: Uses standard control power commonly available in HVAC systems for convenient field use.
• Handheld Portable Design: Lightweight construction supports easy transport and one-handed operation during commissioning tasks.
• On-Site Configuration Capability: Enables parameter adjustment, addressing, and verification without the need for a laptop or software tools.
• Service and Diagnostics Support: Assists technicians in troubleshooting actuator behavior and confirming operational status.

The ZTH-GEN delivers the reliability and precision required for efficient configuration and servicing of Belimo control devices in HVAC applications.
