Description

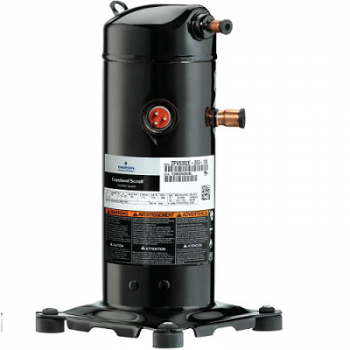

The Copeland ZP154KCE-TFD-855 is a hermetic scroll compressor rated at approximately 154,000 BTU for high-temperature, ultra-high-pressure HVAC applications. Designed for R-410A refrigerant systems, it operates on 460 VAC three-phase power and supports both air conditioning and heat pump installations. This unit provides stable, high-efficiency compression for demanding commercial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Copeland |
| Category |
HVAC |
| Part Number |
ZP154KCE-TFD-855 |
| Subcategory |
Scroll Compressors |
| Compressor Type |
Scroll |
| Construction Type |
Hermetic |
| Application |
A/C, Heat Pump |
| Nominal Capacity |
154,000–155,000 BTU |
| Horsepower |
13 HP |
| Refrigerant |
R-410A |
| Refrigerant Oil Type |
Polyol Ester (POE) – 3MA |
| Voltage |
460 VAC (Line 480V @ 60Hz) |
| Frequency |
50/60 Hz |
| Motor Phase |
3-Phase |
| Max RLA |
25 A |
| LRA |
150 A |
| Max Watts |
14,000 W |
| Suction Connection |
Horizontal, 1-3/8 in |
| Discharge Connection |
Horizontal, 7/8 in |
| Mounting Arrangement |
A |
| Oil Recharge |
6.625 pints |
| Dimensions (H x L x W) |
21.7 in x 10.38 in x 11.23 in |
| Weight |
143 lb |
Information About ZP154KCE-TFD-855
The ZP154KCE-TFD-855 is part of Copeland’s ZP series of scroll compressors engineered for high-capacity air conditioning and heat pump systems. It utilizes precision scroll technology to deliver continuous compression with reduced mechanical stress and improved efficiency compared to reciprocating designs. Compatible with R-410A refrigerant and lubricated with 3MA polyol ester (POE) oil, the compressor is optimized for high-pressure operation. Internal electronic protection safeguards the motor against overload and abnormal electrical conditions, supporting reliable long-term service in commercial three-phase installations.
Key Features:
- Scroll Compression Technology: Ensures smooth, efficient, and low-vibration operation.
- 154,000 BTU Capacity: Designed for large commercial A/C and heat pump systems.
- 460 VAC / 3-Phase Power: Suitable for industrial and commercial electrical infrastructure.
- R-410A Refrigerant Compatibility: Engineered for high-pressure refrigerant applications.
- Internal Electronic Protection: Provides built-in motor safety against overload conditions.
- High Temperature Rating: Built for demanding ambient operating environments.
- Horizontal Suction & Discharge Connections: Facilitates flexible installation and piping configuration.
- POE Oil (3MA) Lubrication: Supports reliable lubrication under high-pressure conditions.
The ZP154KCE-TFD-855 delivers the reliability and precision required for commercial air conditioning and heat pump systems.
