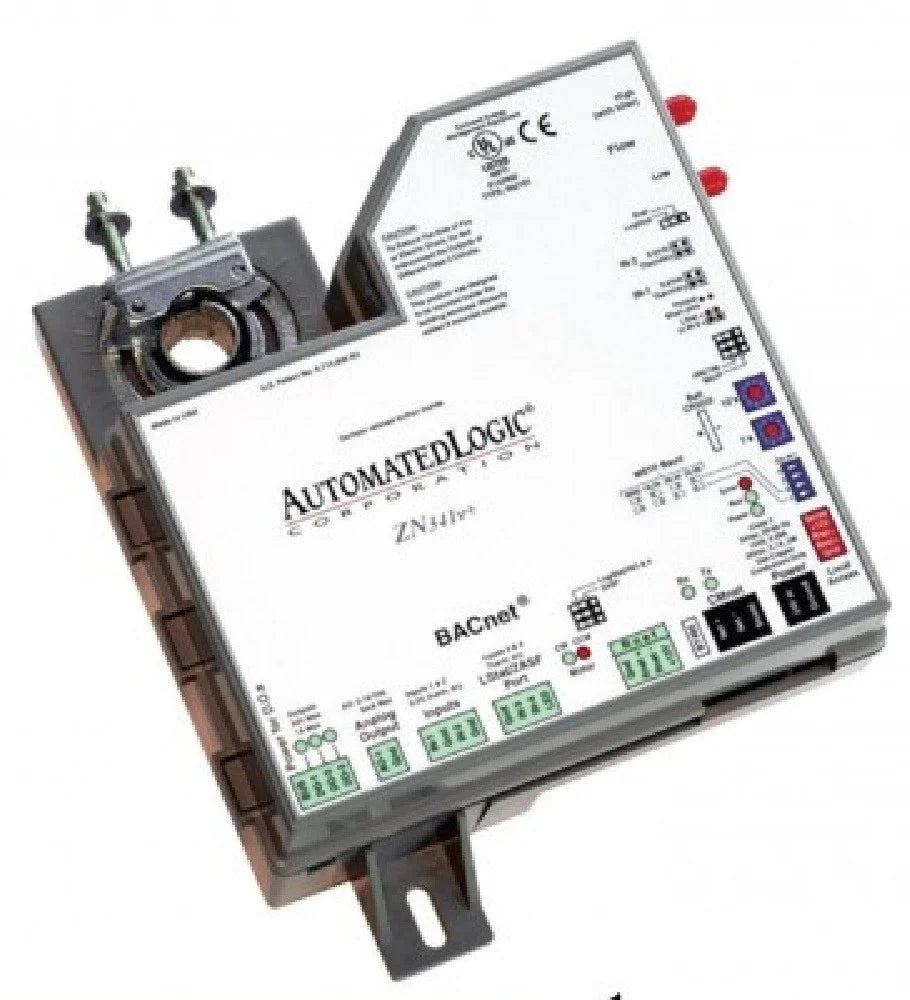

The Automated Logic ZN341V is a pressure-independent VAV controller with an integrated actuator and airflow sensor for precise zone-level environmental control. It supports native BACnet communication over ARCNET or MS/TP, enabling seamless integration into building automation systems. Designed for energy-efficient HVAC operation, it manages airflow and temperature control in commercial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automated Logic |
| Category |
Building Automation |
| Part Number |
ZN341V |
| Subcategory |
VAV Controller |
| Communication Protocols |
BACnet over ARCNET (156 Kbps) / MS/TP |
| Integral Actuator Torque |
35 in-lb (4 Nm) |
| Airflow Sensor Type |
Integrated Precision AWM Sensor |
| Digital Outputs |
Up to 3 (Relay Rated 1A @ 24VAC/VDC, Model Dependent) |
| Universal Inputs |
4 Inputs, 10-bit A/D Resolution |
| Analog Outputs |
1 Output, 0–10 VDC (5 mA max), 8-bit Resolution |
| Power Requirements |
24VAC ±10%, 50–60 Hz, 14 VA |
| Memory |
512 KB RAM, 1 MB Flash |
| Operating Temperature Range |
0°F to 130°F (-17.8°C to 54.4°C) |
| Humidity Range |
10–90% RH, Non-Condensing |
| Enclosure Rating |
UL94-5VA Plenum Rated |
| Dimensions (W x H x D) |
6-1/2 in x 7 in x 2-1/2 in |
| Weight |
1 lb (0.8 kg) |
Information About ZN341V
The ZN341V is part of Automated Logic’s ZN series of advanced VAV controllers engineered for variable air volume terminal units. It incorporates a brushless DC actuator and precision airflow measurement technology to maintain accurate control across minimum and maximum airflow setpoints. The controller supports BACnet communication via ARCNET 156 Kbps or MS/TP networks, allowing peer-to-peer data exchange with other building controllers. With onboard memory, graphical programmability, and compatibility with RS room sensors, it is suited for cooling-only, reheat, constant volume, and dual-duct HVAC configurations.
Key Features:
- Pressure-Independent VAV Control: Maintains accurate airflow regardless of duct pressure fluctuations.
- Integrated Brushless Actuator: 35 in-lb torque motor designed for long operational life and consistent damper positioning.
- Native BACnet Communication: Supports BACnet over ARCNET (156 Kbps) or MS/TP for system-wide integration.
- Precision Airflow Sensor: Built-in airflow measurement ensures accurate CFM control and efficient balancing.
- Flexible I/O Configuration: Includes universal inputs, digital outputs, and a 0–10 VDC analog output for reheat or valve control.
- Graphical Programming Capability: Fully programmable with downloadable firmware and diagnostic trending support.
- RS Sensor and Rnet Support: Enables local access, monitoring, and simplified test-and-balance procedures.
- Compact Plenum-Rated Enclosure: UL94-5VA rated housing suitable for installation in air-handling spaces.
The ZN341V delivers the reliability and precision required for advanced VAV terminal unit control in commercial HVAC systems.
