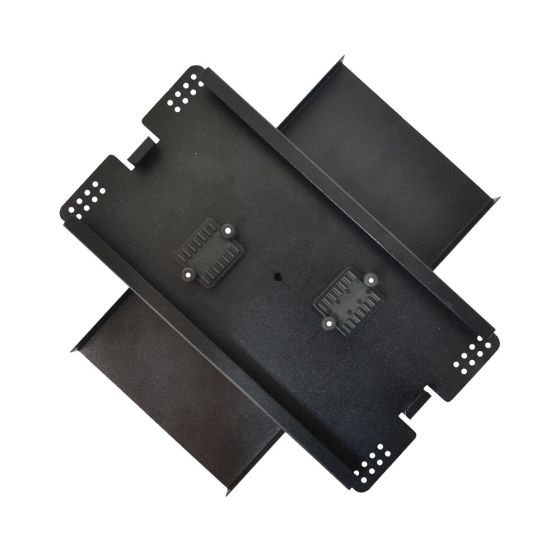

XL 24-Position Aluminum Fusion Splice Tray (10" × 5")

This XL 24-position aluminum splice tray is a rugged, full-size fusion splice management solution designed for reliable fiber organization across a wide range of enclosures. Its aluminum construction provides excellent structural stability while maintaining a lightweight profile, making it suitable for both central office and outside plant applications.

The generous tray footprint allows for clean fiber routing and proper bend-radius control, while the snap-on protective lid helps secure splices during installation and long-term service. Preconfigured for standard heat-shrink fusion splices, this tray is well suited for new builds, upgrades, and retrofit projects where durability and compatibility are essential.

Download product spec sheet (PDF)

Specifications

• Splice Capacity:

  • 24 fusion splices

• Splice Holding Method:

  • PSA-backed splice chips

  • Includes (2) 12-position fusion splice chips

• Material:

  • Black, powder-coated aluminum

  • .032" thickness

• Cover:

  • Snap-on protective lid

• Cable Management:

  • Integrated tie-down holes for fiber routing

• Dimensions (L × W × H):

  • 10" × 5" × 0.42"

• Compatibility:

  • Fits most standard fiber optic enclosures

• Included Accessories:

  • Zip ties

  • Tray label

  • Adhesive Velcro dots
