Description

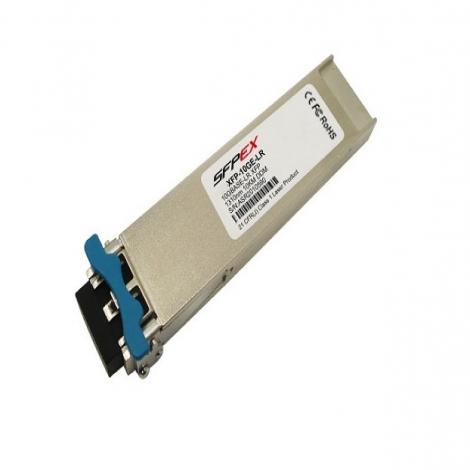

The XFP-10GE-LR is a high-performance transceiver module designed for 10 Gigabit Ethernet applications over single-mode fiber. It delivers reliable long-distance connectivity up to 10 km.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
XFP-10GE-LR
|
| Subcatecory |
|
| Form Factor |
XFP |
| Data Rate |
Up to 11.1 Gbps |
| Wavelength |
1310 nm |
| Max Cable Distance |
10 km (Single-mode fiber) |
| Connector Interface |
LC Duplex |
| Optical Component |
DFB Laser |
| Digital Monitoring |
Yes (DOM Supported) |
| Transmit Power |
-6 to 0 dBm |
| Dimensions (L x W x H) |
8.55 x 18.5 x 71 mm |
| Weight |
0.15 kg |
Information About XFP-10GE-LR
The XFP-10GE-LR is a 10GBASE-LR optical transceiver module engineered for use over 1310nm single-mode fiber (SMF). Designed in the XFP form factor, it supports a maximum data rate of 11.1 Gbps, making it suitable for demanding network backbones and high-bandwidth environments.
Key Features:
-
Distance Capability: Supports up to 10 km transmission over SMF, ideal for long-range network links
-
Optical Interface: Equipped with LC duplex connectors and DFB laser for high-quality signal transmission
-
Digital Monitoring: Built-in DOM (Digital Optical Monitoring) support allows real-time diagnostics and monitoring
-
Low Power Requirements: Transmit power from -6 to 0 dBm, with < -15 dBm receiver sensitivity
-
Temperature Range: Operates within -5°C to 75°C, ensuring stability in industrial and enterprise environments
-
Compact Design: Lightweight and compact dimensions allow for easy integration into standard XFP ports
The XFP-10GE-LR provides long-range, high-efficiency 10G connectivity for data center and enterprise fiber optic networks.
