Description

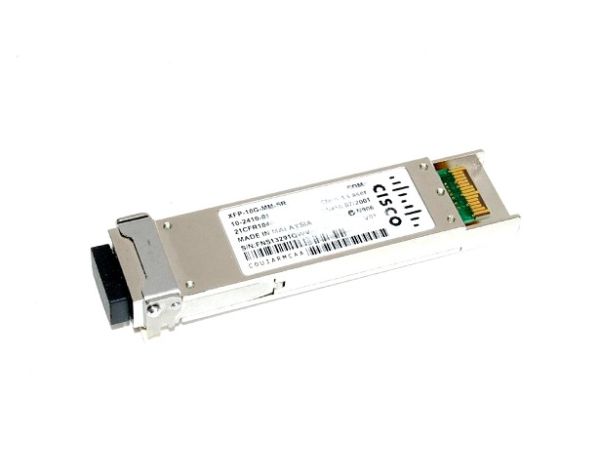

The Cisco XFP-10G-MM-SR is a 10GBASE-SR XFP optical transceiver module designed for short-range data transmission over multimode fiber (MMF). It features a duplex LC connector, operates at a wavelength of 850 nm, and supports distances up to 300 meters, making it ideal for high-speed data center and enterprise network applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
XFP-10G-MM-SR |
| Subcategory |
|
| Device Type |
XFP transceiver module |
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Cabling Type |
10GBase-SR |
| Data Link Protocol |
10 GigE |
| Data Transfer Rate |
10 Gbps |
| Optical Wave Length |
850 nm |
| Max Transfer Distance |
984 ft |
| Compliant Standards |
IEEE 802.3ae |
| Interfaces |
1 x Ethernet 10GBase-SR - LC/PC multi-mode x 2 |
| Compatible Slots |
1 x XFP |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
158 °F |
| Width |
0.7 in |
| Depth |
2.8 in |
| Height |
0.4 in |
| Weight |
10.58 oz |
Information About XFP-10G-MM-SR
The XFP-10G-MM-SR is a high-performance 10-Gigabit optical transceiver module designed for short-range data transmission over multimode fiber (MMF). Compliant with the XFP Multi-Source Agreement (MSA) and IEEE 802.3ae 10GBASE-SR standard, it supports up to 300 meters of reach on OM3 fiber and is widely used in data centers, enterprise core networks, and high-speed backbone connections. This hot-swappable module operates at a nominal wavelength of 850 nm using a VCSEL laser and connects via an LC duplex interface.
Key Features:
-
Form Factor: XFP (10 Gigabit Small Form-Factor Pluggable)
-
Data Rate: 10 Gbps
-
Interface Type: XFI (10 Gigabit Attachment Unit Interface)
-
Wavelength: 850 nm (short range)
-
Max Distance: Up to 300m over OM3 multimode fiber
-
Connector Type: LC duplex
-
Fiber Type: Multi-Mode Fiber (MMF)
-
Laser Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
-
Hot Swappable: Yes
-
Digital Diagnostics: Supports DOM (Digital Optical Monitoring)
-
Standards Compliance: IEEE 802.3ae (10GBASE-SR), RoHS, XFP MSA, SFF-8477
This transceiver is ideal for high-speed links in LAN environments where short-distance, cost-effective 10G connectivity is required, offering reliable performance and easy integration into existing network infrastructure.
