Description

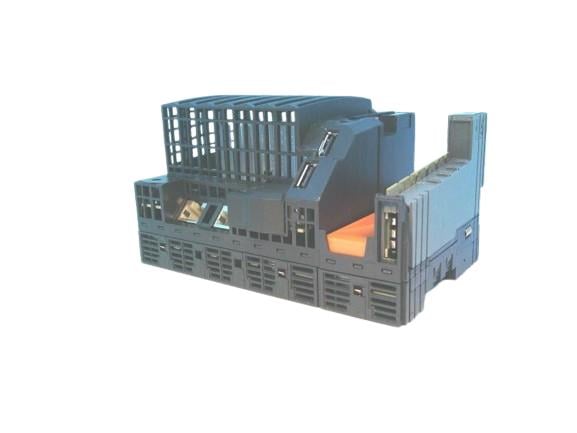

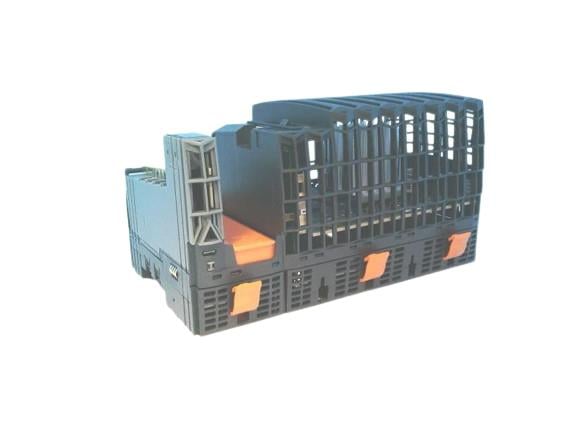

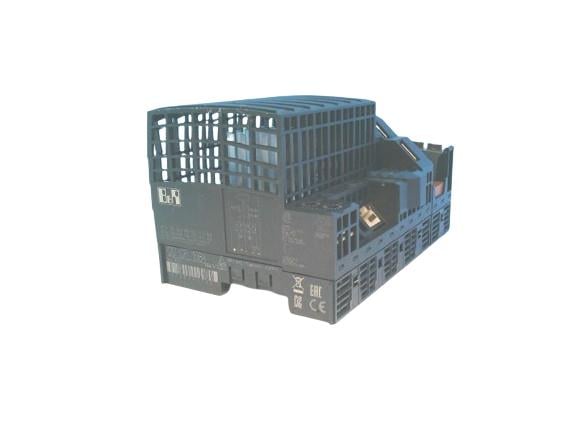

The B&R X20CP1584 is a compact and high-performance CPU module designed for use in modular X20 automation systems. It features a 0.6 GHz Intel Atom processor, integrated interfaces including USB, RS232, Ethernet, and POWERLINK, and supports expandable I/O via an X20 interface slot. Supplied with terminal block and covers, the unit is built for industrial control applications requiring fast processing and versatile communication.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
B&R Automation |
| Category |
Controls & Indicators |
| Part Number |
X20CP1584 |
| Subcategory |
CPU/Control Board |
| Processor |
Intel Atom 0.6 GHz |
| RAM |
256 MB DDR2 |
| SRAM |
1 MB |
| Removable Memory |
CompactFlash (ordered separately) |
| Interface Expansion Slot |
1x X20 interface module slot |
| USB Ports |
2 |
| Serial Interface |
1x RS232 |
| Ethernet Port |
1x 10/100/1000BASE-T |
| POWERLINK Interface |
Yes |
| Power Supply Requirement |
24 VDC |
| Max Current Consumption |
1.5 A |
| Standby Power |
0.6 W |
| Mounting Accessories |
Includes X20TB12, X20AC0SR1, slot cover |
| Weight |
1.04 lbs |
Information About X20CP1584
The X20CP1584 belongs to B&R's X20 control system line and functions as a central processor for modular automation platforms. This model includes 256 MB DDR2 RAM and 1 MB SRAM, with a removable CompactFlash card slot for application memory. It supports external 24 VDC power, offers a full range of I/O expansion via X20 interface modules, and includes native support for industrial Ethernet standards like POWERLINK. Although now discontinued, it remains a key controller for legacy systems requiring real-time processing and industrial-grade networking.
Key Features:
- Intel Atom Processor: 0.6 GHz CPU optimized for industrial automation.
- Modular Expansion: 1 slot for X20 interface modules supports flexible system design.
- Multiple Interfaces: Includes USB, RS232, Ethernet (10/100/1000BASE-T), and POWERLINK.
- Integrated Memory: 256 MB DDR2 RAM and 1 MB SRAM for fast processing and buffering.
- CompactFlash Slot: Removable memory for storing application programs.
- Mounting Accessories Included: Comes with terminal block (X20TB12), slot cover, and end plate.
- 24 VDC Powered: Industrial-grade power compatibility with 1.5 A max current.
- Discontinued Model: Still widely used in installed systems as a reliable legacy CPU.
The X20CP1584 delivers the processing performance and communication capabilities required for advanced automation in modular industrial environments.
