Description

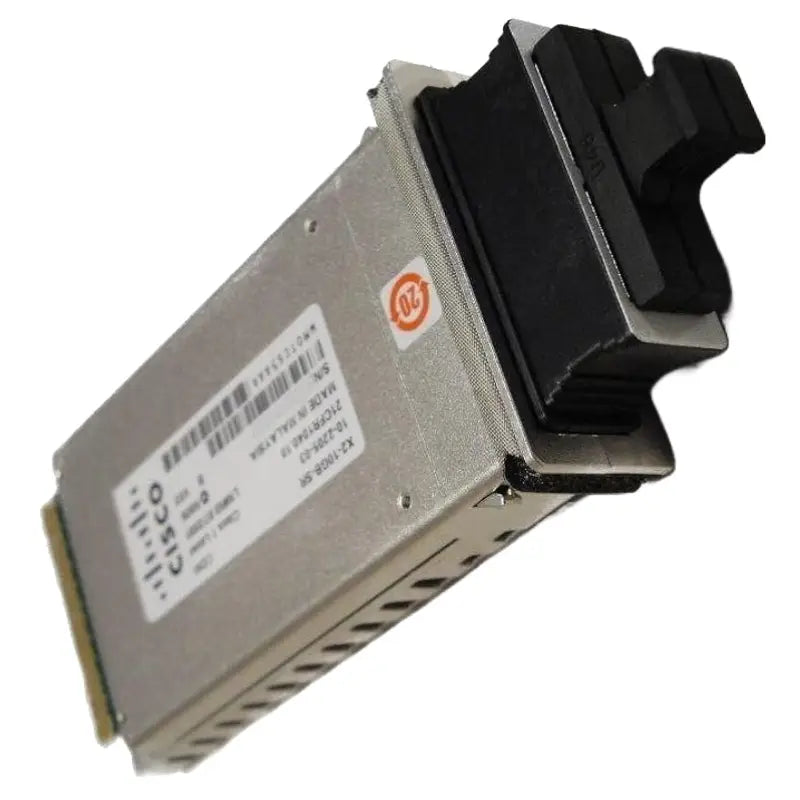

The X2-10GB-SR is a high-performance 10GBASE-SR X2 transceiver module designed to support short-reach 10 Gigabit Ethernet connectivity over multimode fiber (MMF). Operating at a wavelength of 850 nm, it provides a reliable and efficient solution for short-distance, high-bandwidth data transmission.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
X2-10GB-SR
|
| Subcatecory |
|
| Wavelength |
850 nm |
| Connector Interface |
SC Duplex |
| Cable Type |
Multimode Fiber (MMF) |
Max Distance
|
300 m (OM3 fiber) |
| Max Data Rate |
10 Gbps
|
| TX Power |
-7.3 to -1.2 dBm
|
| Receiver Sensitivity |
< -11.1 dBm
|
| Optical Component |
VCSEL 850 nm
|
| Operating Temperature |
0°C to 70°C (32°F to 158°F)
|
Information About X2-10GB-SR
The X2-10GB-SR is fully compatible with Cisco networking equipment that supports the X2 form factor and offers seamless integration into data centers, enterprise core networks, and campus backbone infrastructures. With a maximum link distance of up to 300 meters using OM3 MMF, this module is ideal for intra-building connectivity and aggregation layers.
Key Features:
-
10 Gigabit Ethernet Support: Delivers up to 10 Gbps over short distances using multimode fiber.
-
Optimized for MMF: Designed for 850 nm wavelength operation, achieving up to 300 meters with OM3 cabling.
-
DOM Functionality: Includes Digital Optical Monitoring for enhanced network manageability and performance monitoring.
-
Reliable Build: Operates within a commercial temperature range of 0 to 70°C (32 to 158°F) for dependable performance in data center environments.
-
Standard Interface: Features a SC duplex connector for easy integration into existing fiber infrastructures.
The X2-10GB-SR ensures fast and stable optical networking performance in environments where cost-effective, high-bandwidth communication is essential.
